American Outdoor Grill T-Series Built-In Natural Gas Grills

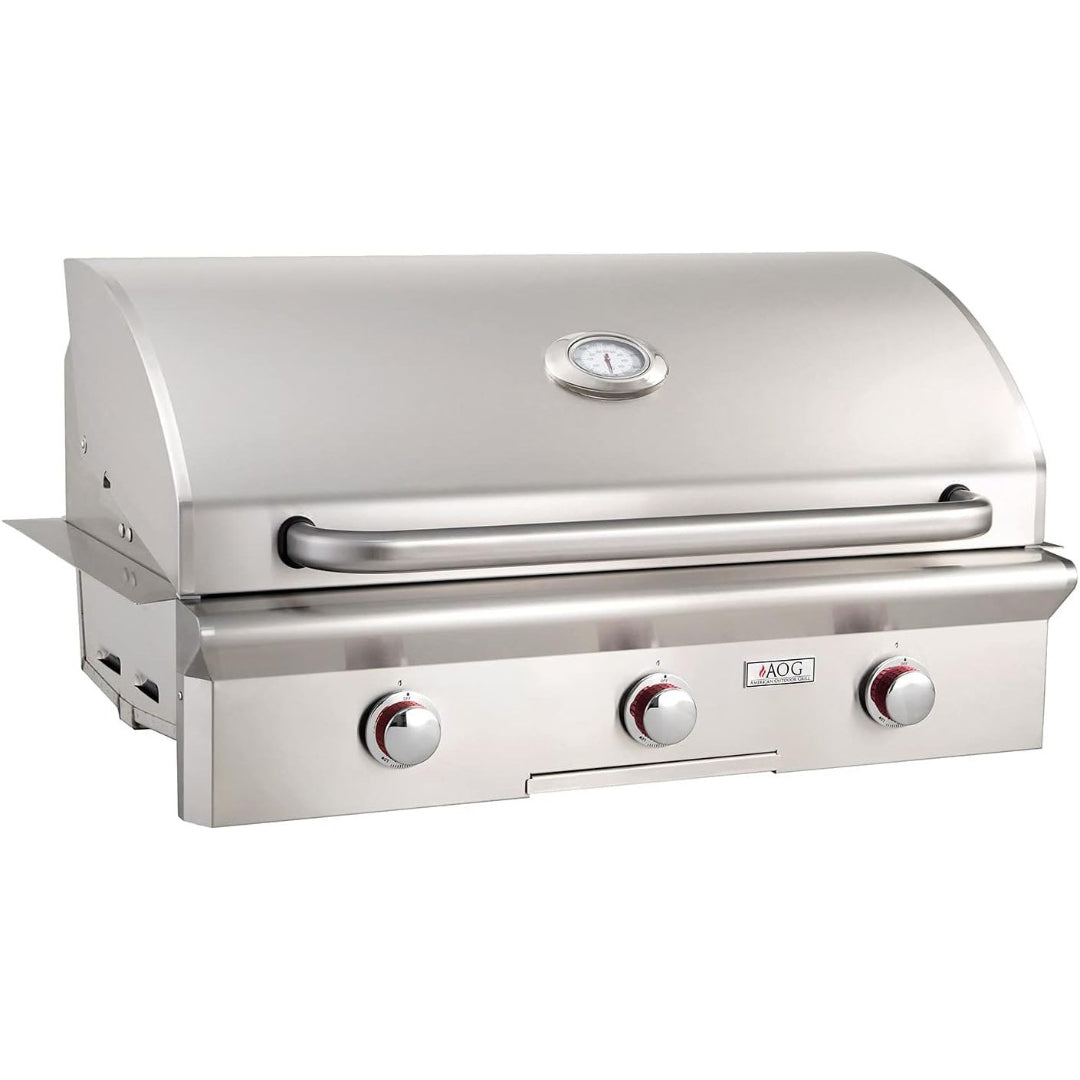

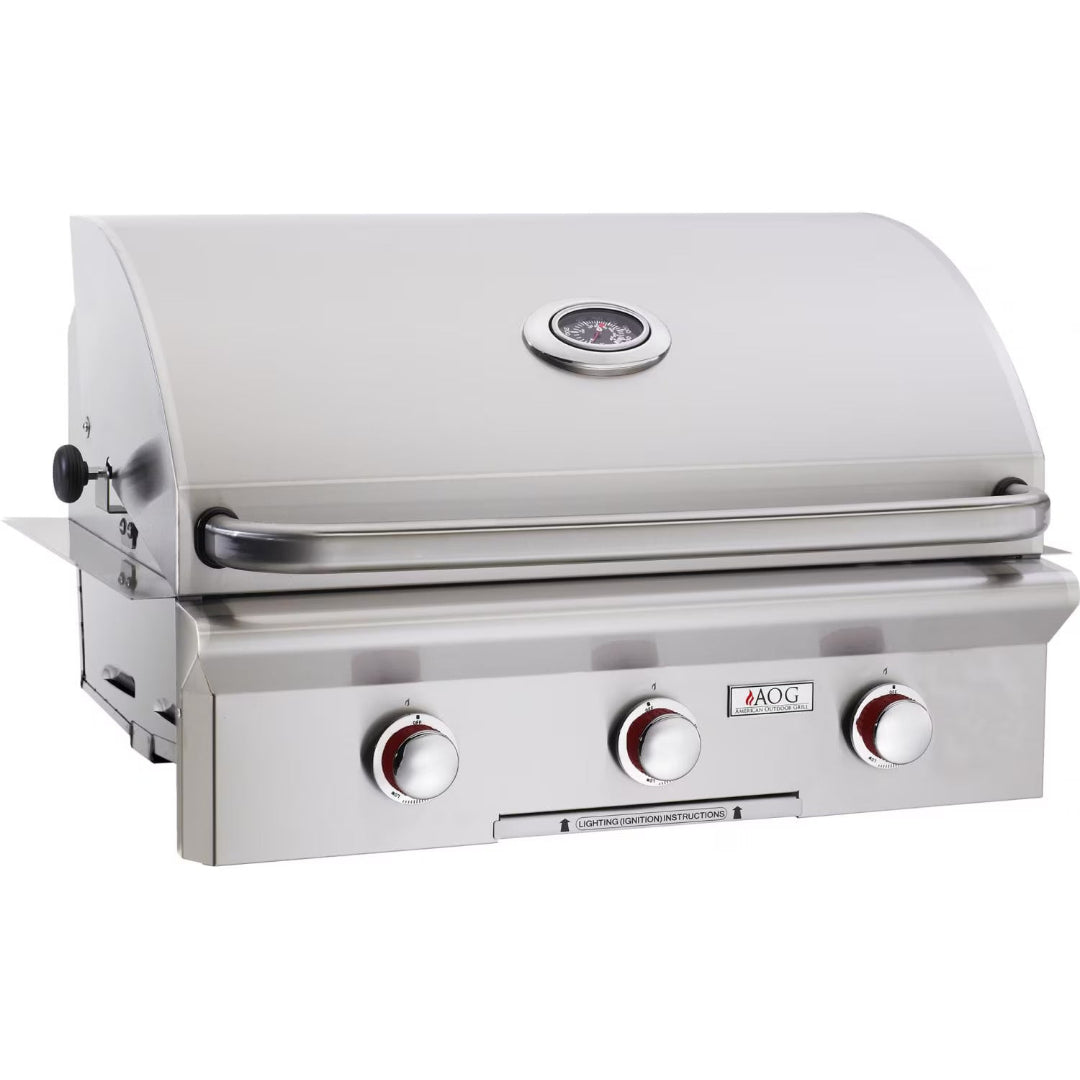

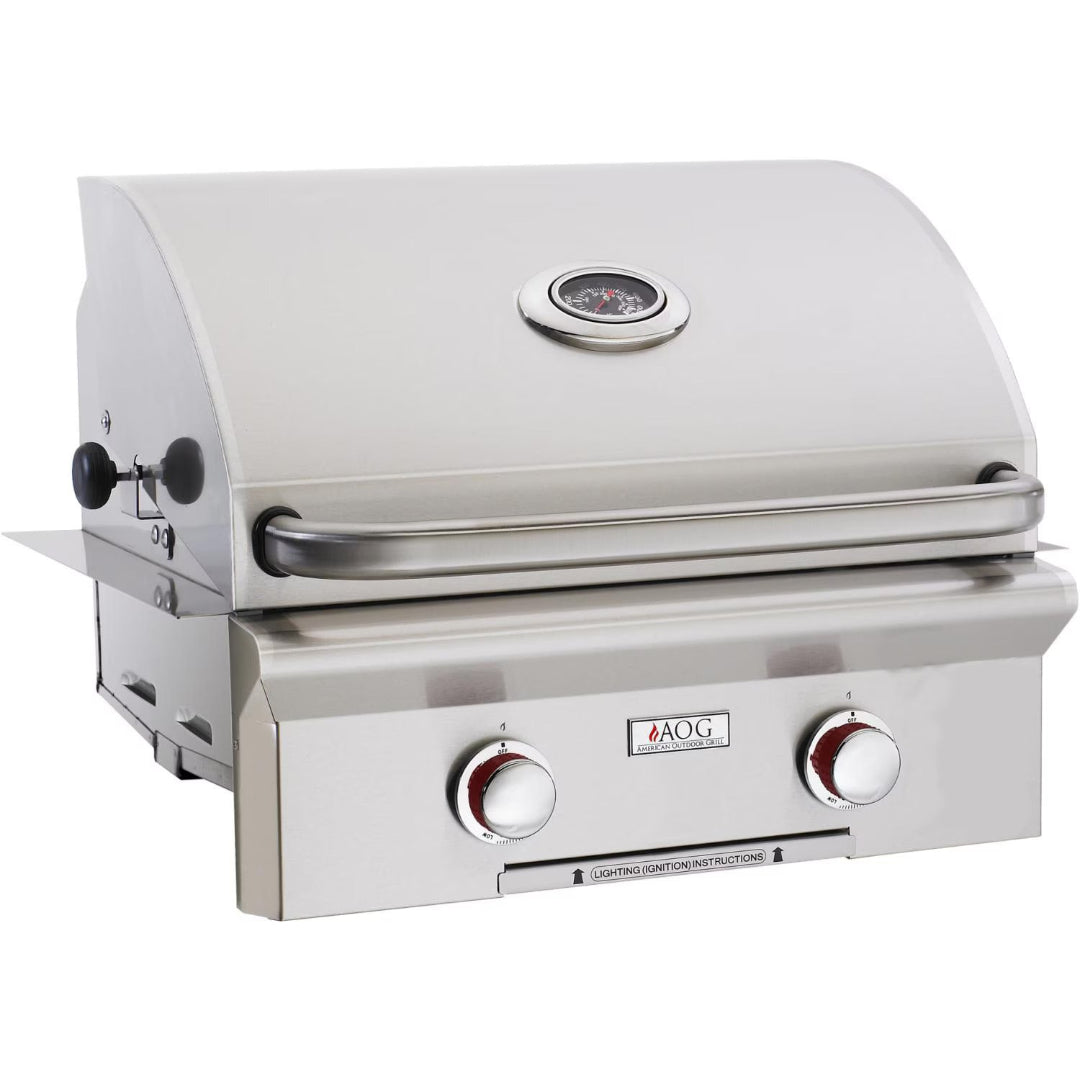

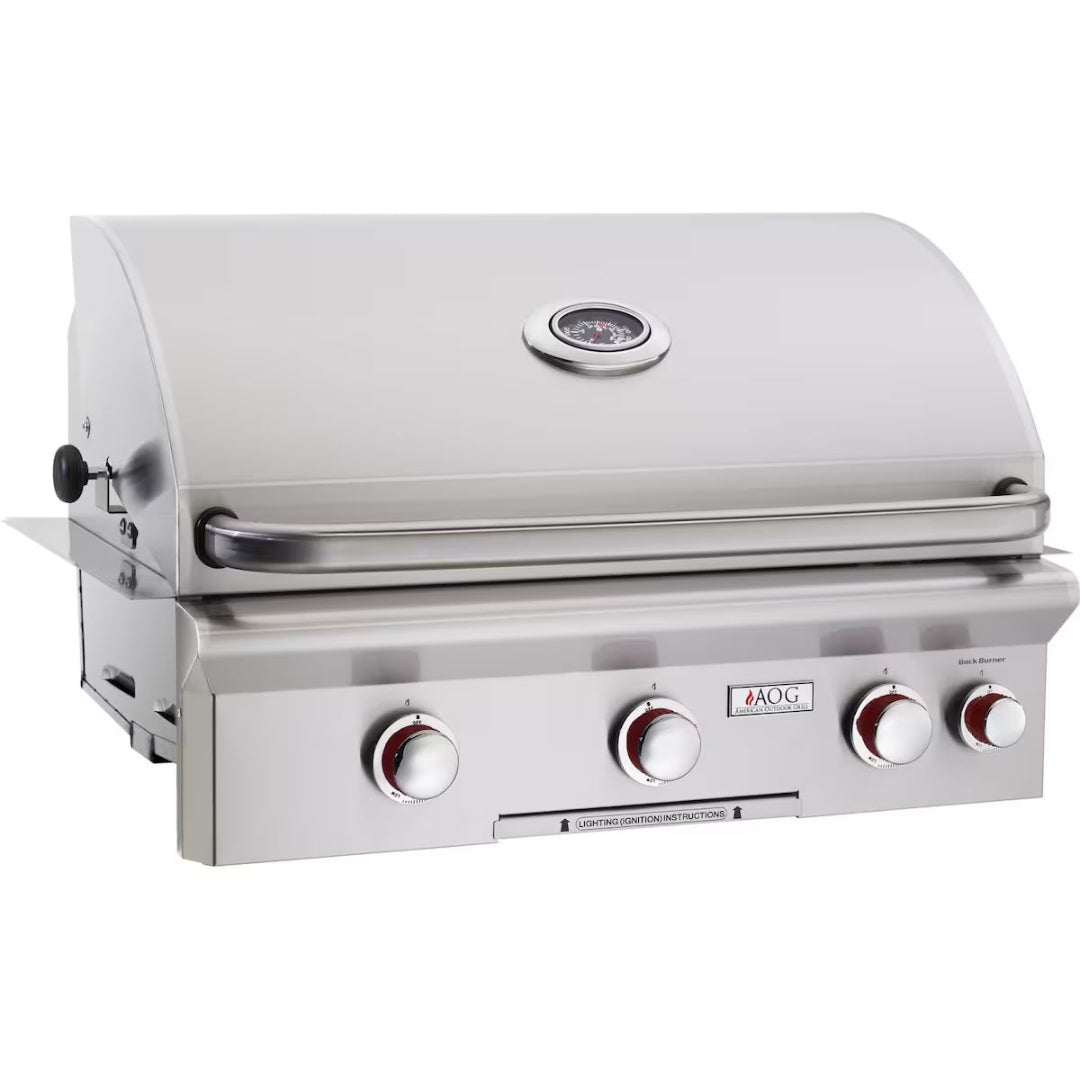

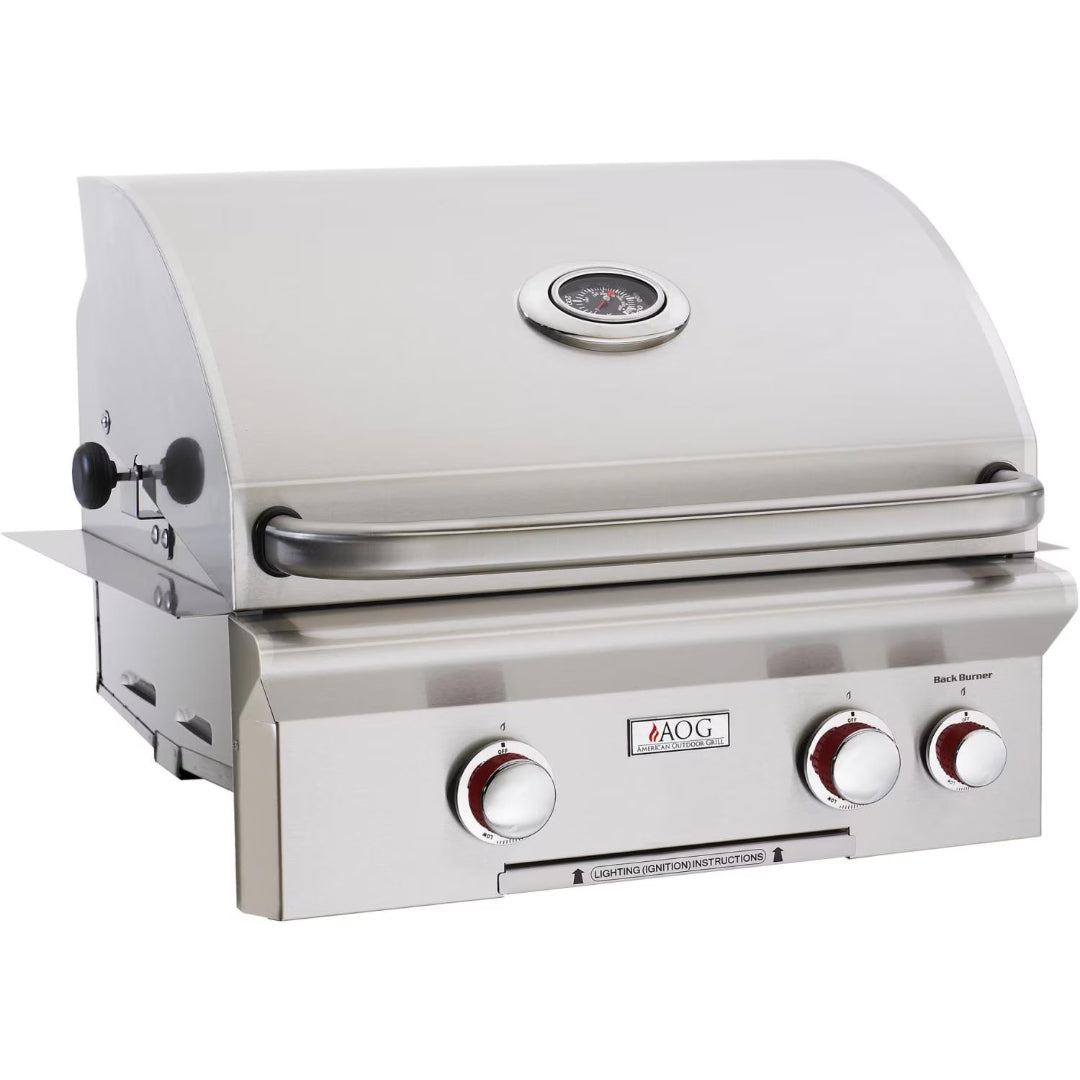

American Outdoor Grill (AOG) T-Series Built-In Natural Gas Grills — available in 24", 30", and 36" sizes. These premium, built-in grills are constructed from commercial‑grade 304 stainless steel and deliver exceptional durability and outstanding performance with a sleek, modern aesthetic to complement any outdoor kitchen.

The T-Series uses U‑shaped burners made from 304 stainless steel for even heat distribution across the cooking surface. The 24" model delivers 32,000 BTUs, the 30" model delivers 45,000 BTUs, and the 36" model delivers 50,000 BTUs. The 24" and 30" models offer an optional rotisserie kit with a 10,000 BTU infrared back burner; the 36" model includes a 12,000 BTU infrared back burner.

Cooking area: the 24" model provides 432 sq. inches primary grilling area, the 30" model 540 sq. inches, and the 36" model 648 sq. inches. Secondary grilling areas are 116, 151, and 181 sq. inches (24", 30", 36"), for total grilling areas of 548, 691, and 829 sq. inches respectively. Stainless steel vaporizer panels (flame tamers) help distribute heat evenly, reduce flare‑ups, and protect the burners from grease.

Convenience and control: interior halogen grill lights and back‑lit knobs improve visibility and control in low light. Solid brass valves with red‑flared front knobs provide precise heat control. Each grill includes a funneled grease management system with a slide‑out drip tray. Proudly made in the USA.

Key Features
304 Stainless Steel Construction: Built for durability and reliability, offering long‑lasting performance.
Diamond Sear Cooking Grids: Perfect for creating restaurant‑quality grill marks while locking in flavor.
Electronic Push Button Ignition System: Easy, reliable ignition with the push of a button—no matches or lighters needed.
Interior Halogen Lights: Grill day or night with clear visibility.
Back‑Lit Knobs: Easy control in low light.
Heavy Duty Warming Rack: Keeps cooked food warm while you continue grilling.
Requires 120 Volt AC Power: Ensures power for lighting and ignition functions where applicable.

Specification	24" Model	30" Model	36" Model
Class	Premium	Premium	Premium
Fuel Type	Natural Gas	Natural Gas	Natural Gas
Collection	T Series	T Series	T Series
Configuration	Built‑In	Built‑In	Built‑In
Exterior Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Primary Color	Stainless Steel	Stainless Steel	Stainless Steel
Number of Main Burners	2 Burners	3 Burners	3 Burners
Grilling Surface BTUs	32,000	45,000	50,000
Main Burner Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Flame Tamer Material	Stainless Steel	Stainless Steel	Stainless Steel
Cooking Grate Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Cooking Grid Dimensions	24" x 18"	30" x 18"	36" x 18"
Main Grilling Area	432 Sq. Inches	540 Sq. Inches	648 Sq. Inches
Secondary Grilling Area	116 Sq. Inches	151 Sq. Inches	181 Sq. Inches
Total Grilling Area	548 Sq. Inches	691 Sq. Inches	829 Sq. Inches
Rotisserie Burner BTUs	10,000 BTU	10,000 BTU	12,000 BTU
Rotisserie Kit	Optional	Optional	Included
Ignition Type	Piezo Rapid Light	Piezo Rapid Light	Piezo Rapid Light
Thermometer	Analog	Analog	Analog
Side Burner	No	No	No
Hose Included	Yes	Yes	Yes
Grill Lights	Interior Halogen	Interior Halogen	Interior Halogen
Spring Assisted Hood	No	No	No
Made In	USA	USA	USA
Dimensions (Width x Height x Depth)	28" x 20.07" x 26.25"	34" x 20.07" x 26.25"	40.25" x 20.07" x 26.25"
Weight	105-115 lbs	130-140 lbs	140-150 lbs

Heavy‑Duty 304 Series Stainless Steel Construction: Built for durability and long‑lasting performance, ensuring that your grill can handle frequent use and the elements.
Heavy‑Duty Warming Rack: Keeps your food warm until you're ready to serve, available on all models for added convenience.
Seamless Hood and Control Panel with Polished Finish: Provides sleek aesthetics and easy‑to‑clean surfaces.
Custom Designed Analog Thermometer with Stainless Steel Bezel: Provides precise control over your cooking temperature.
All Built‑In Grills are Natural Gas (NG) and Come with LP Orifices: The grill is set up for natural gas but comes with LP (liquid propane) orifices for versatility, making it suitable for both NG and LP setups.
All Portable Grills Come with LP and Require NG Conversion Kit (CK‑41‑NAT or CK‑42‑NAT): If you plan to use the grill with natural gas, you’ll need to purchase a conversion kit and orifice kit separately.
