Broilmaster B-Series 40" 5-Burner Stainless Natural Gas Grill - BSB405N

Backed by decades of American craftsmanship, the Broilmaster B-Series BSB405N is a high-performance 40" built‑in natural gas grill head built for durability, efficiency, and superior cooking capabilities. Constructed from heavy‑duty 304 stainless steel with solid stainless steel cooking grates and stainless steel flame tamers, the BSB405N delivers consistent flame control and long‑term durability for searing, roasting, and slow‑cooking. The welded and polished double‑lined hood improves heat retention, interior halogen lighting enhances nighttime visibility, and blue LED control panel lighting adds style and usability. The flame‑thrower ignition system ensures fast, reliable startups. Designed for built‑in installation, this model includes a removable warming rack and front access drip tray for easy maintenance.

Key Features:
304 Stainless Steel Construction — Ensures durability and resistance to corrosion
Welded and Polished Double‑Lined Hood — Improves heat retention for efficient grilling

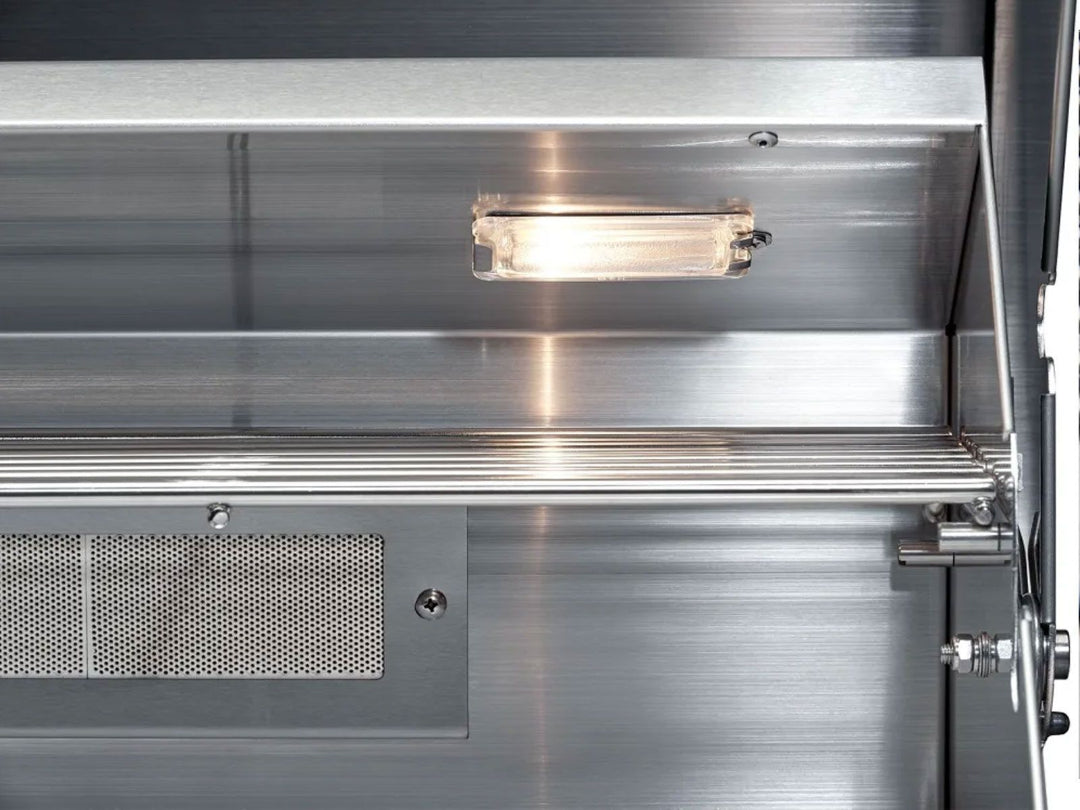

Interior Halogen Lighting — Enhances visibility for nighttime cooking
Blue LED Control Panel Lighting — Provides a stylish and functional design
70,000 Total BTUs of Cooking Power — Delivers high‑performance grilling for all types of food

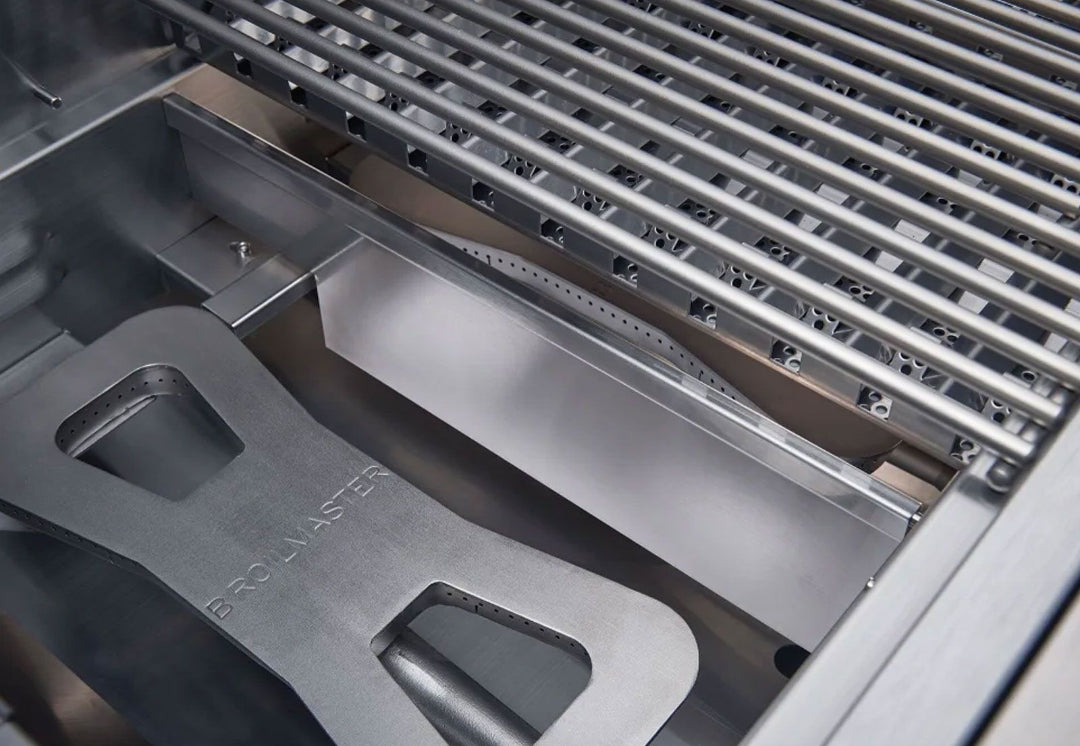

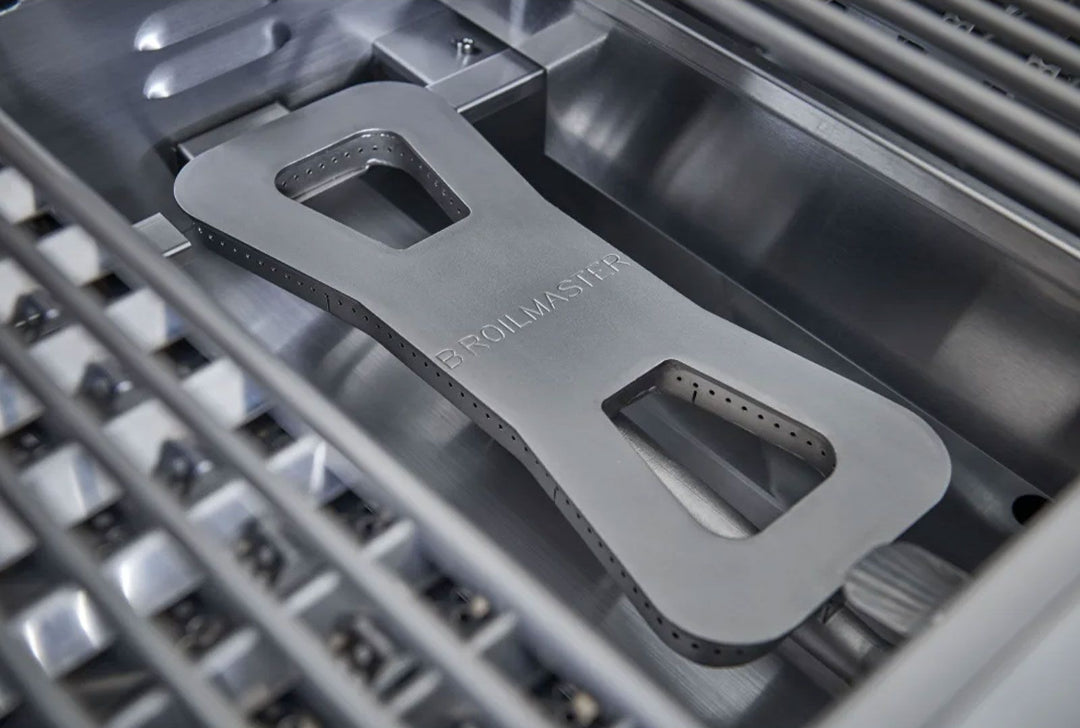

Five 14,000 BTU Cast Stainless Steel Burners — Offers precise heat control and even cooking

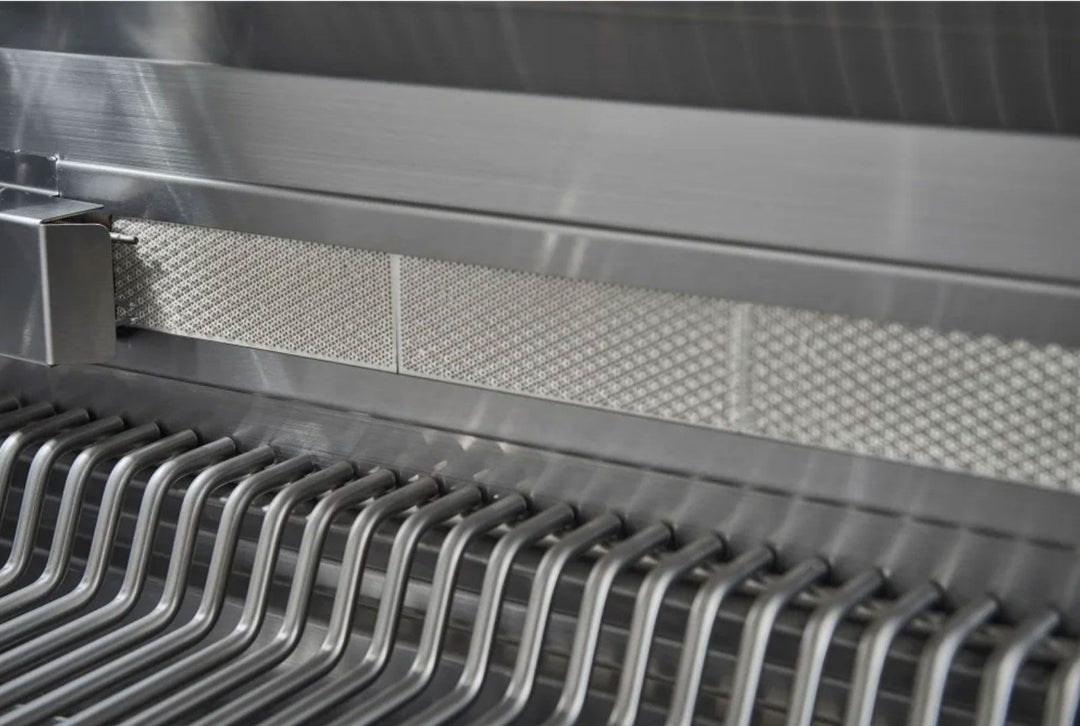

14,500 BTU Rear Infrared Rotisserie Burner — Enables professional‑quality rotisserie cooking

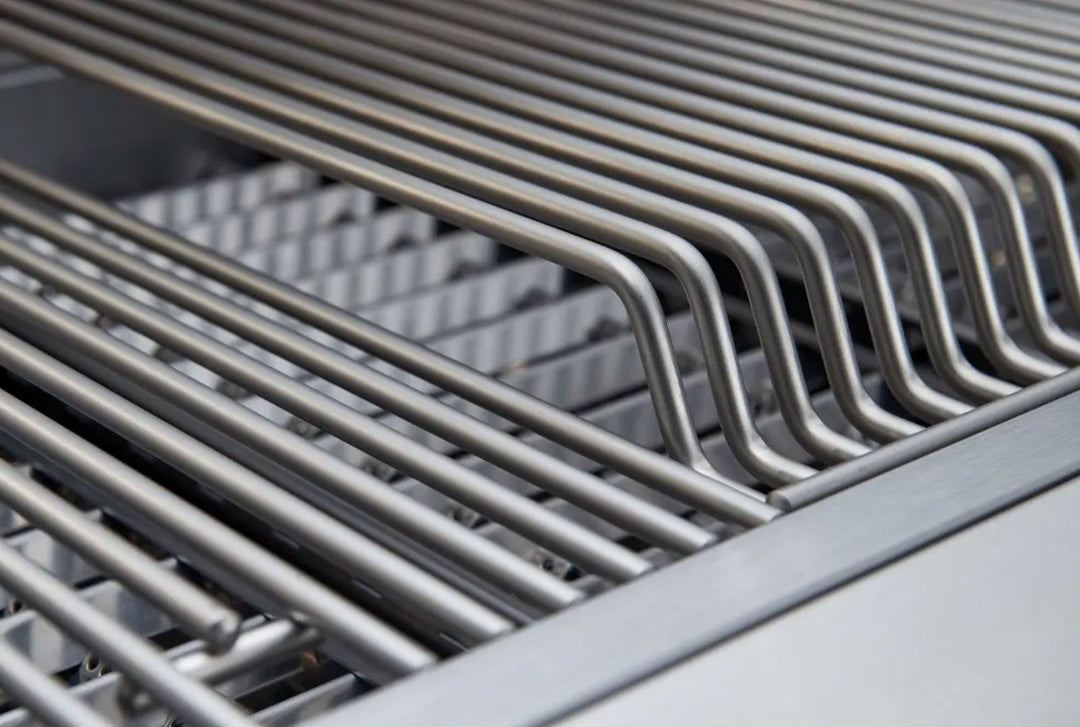

5/16” Stainless Steel Cooking Grates — Provides excellent heat retention and durability

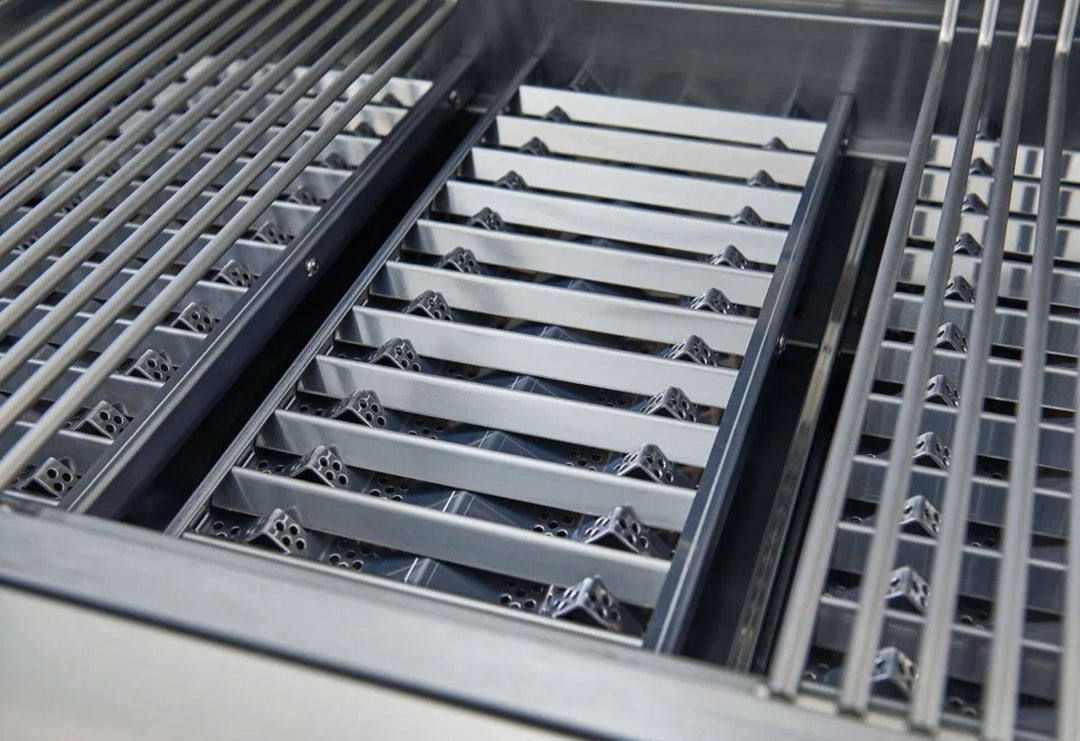

Stainless Steel Flame Tamers — Reduces flare‑ups and improves heat distribution
Flame Thrower Ignition System — Ensures reliable and fast start‑ups

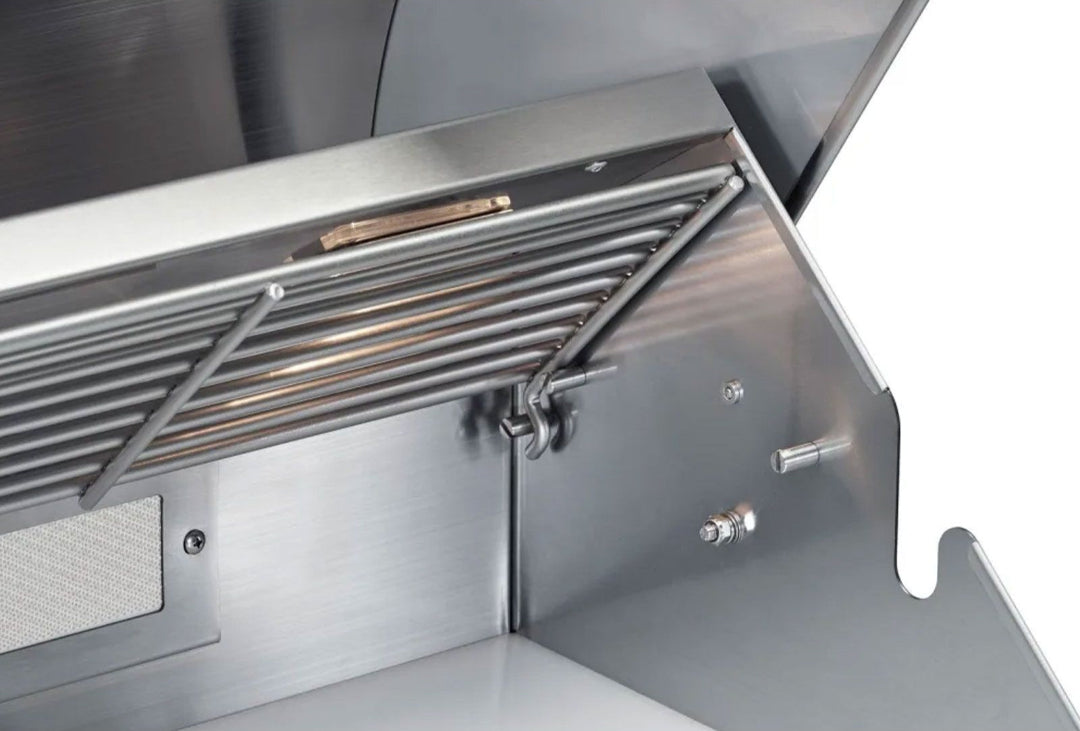

Warming Rack — Keeps food warm without overcooking

Specification	Details
Manufacturer	Broilmaster
Model	BSB405N
Item Type	Gas Grill
Configuration	Built‑In
Fuel Type	Natural Gas (NG)
Number of Main Burners	5 Burners
Main Grilling Area	720 sq in.
Secondary Grilling Area	253 sq in.
Total Grilling Area	973 sq in.
Grilling Surface BTUs	75,000 BTUs
Cooking Grid Dimensions	38" W × 19" D
Cutout Width	38"
Cutout Depth	20.5"
Cutout Height	9.5"
Overall Width	40.13"
Overall Depth	25"
Overall Height	21"
Weight	180 lbs
Construction	Heavy‑Duty 304 Stainless Steel
Main Burners	5 × 12,000 BTU Cast Stainless Steel
Infrared Back Burner	13,000 BTU
Rotisserie Kit	Optional Accessory
Total Cooking Area	760 sq in. (665 + 95)
Cooking Grates	Solid Stainless Steel
Flame Tamers	Stainless Steel
Ignition	Flame‑Thrower Ignition
Interior Lighting	Dual Halogen Lights
Exterior Lighting	LED Control Panel Lights
Thermometer	Built‑In Temperature Gauge
Hood	Double‑Lined, Easy‑Lift
Heat Zone Separators	Included
Smoker Box	Not Included
WiFi / Bluetooth	Not Supported
Marine / Commercial Grade	No
Made in USA	No
Hose & Regulator	Not Included

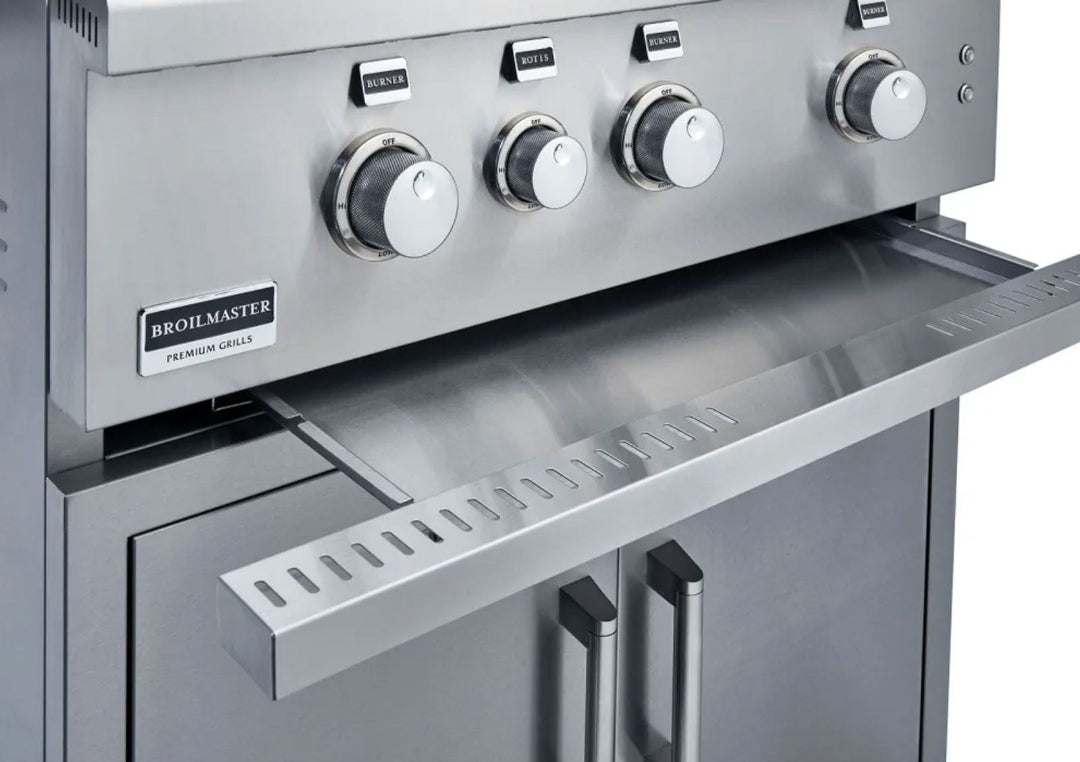

Extra Features	Front Access Drip Tray, Removable Warming Rack

Freestanding Grill Cart Available (Sold Separately) — Allows conversion to a freestanding configuration
Rotisserie Kit Available (Sold Separately) — Take advantage of the rear burner for slow‑roasted meats right out of the box
Deluxe Vinyl Cover Available (Sold Separately) — Provides weather‑resistant protection when the grill is not in use
Insulated Jacket Available (Sold Separately) — Required for safe installation in combustible islands
Designed for Built‑In Installation — Seamlessly integrates into your custom outdoor kitchen space
Marine‑Grade Components — Built with high‑quality materials to withstand coastal and harsh environments
Compatible with Broilmaster Accessories — Supports expansion with side burners, storage, and prep space
Easy Maintenance — Features a slide‑out drip tray and removable components for effortless cleaning
