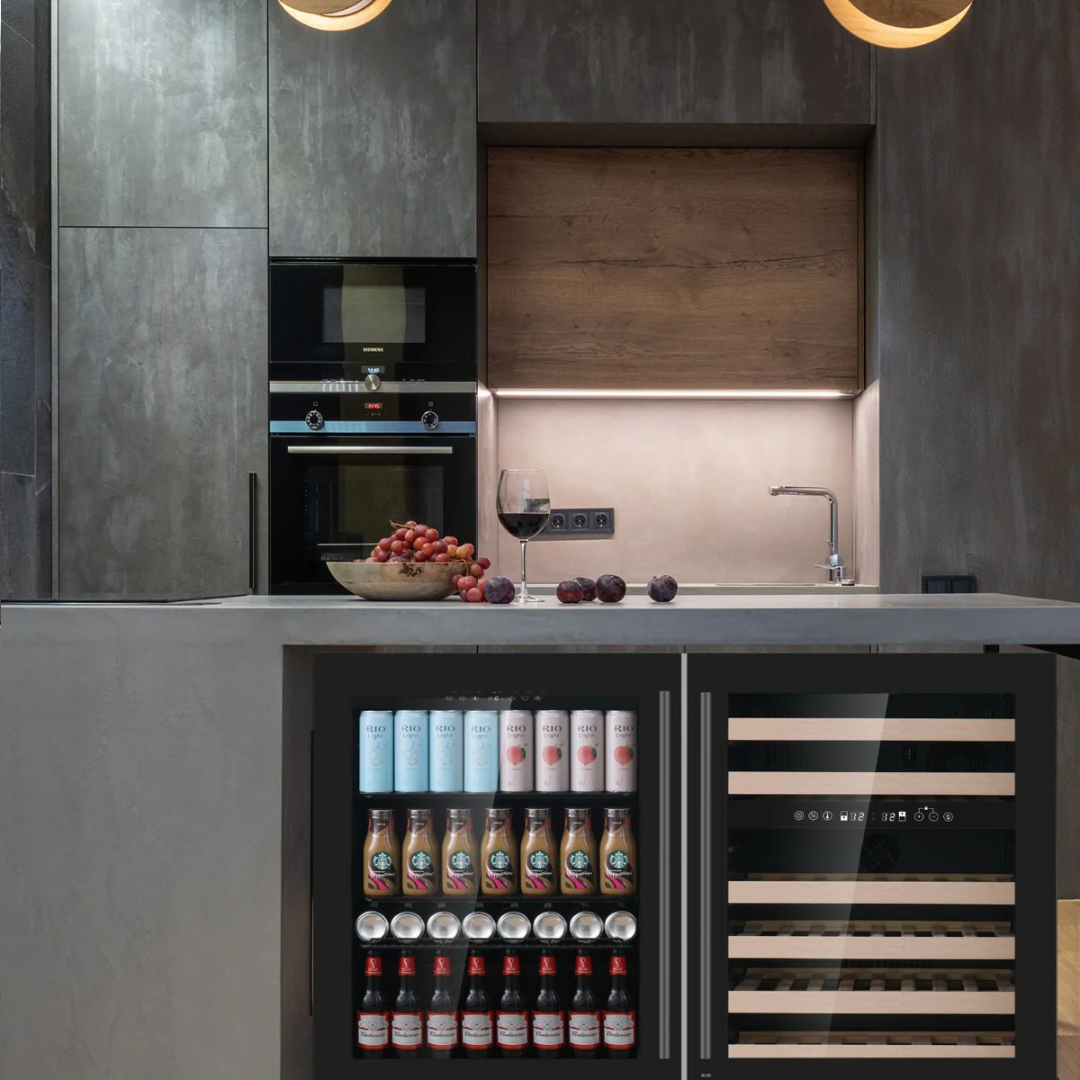

KBU145BW3-FG dual zone undercounter wine refrigerator with black stainless dual glass doors, left beverage section with chrome shelves, right wine section with wooden slide-out racks and digital temperature display
KB145BW3-SS built-in undercounter stainless steel dual-zone wine and beverage refrigerator with glass doors, left beverage storage and right wood-shelved wine cooler with digital controls
KB145BW3-FG built-in undercounter dual-zone wine and beverage refrigerator with glass doors and wooden shelves

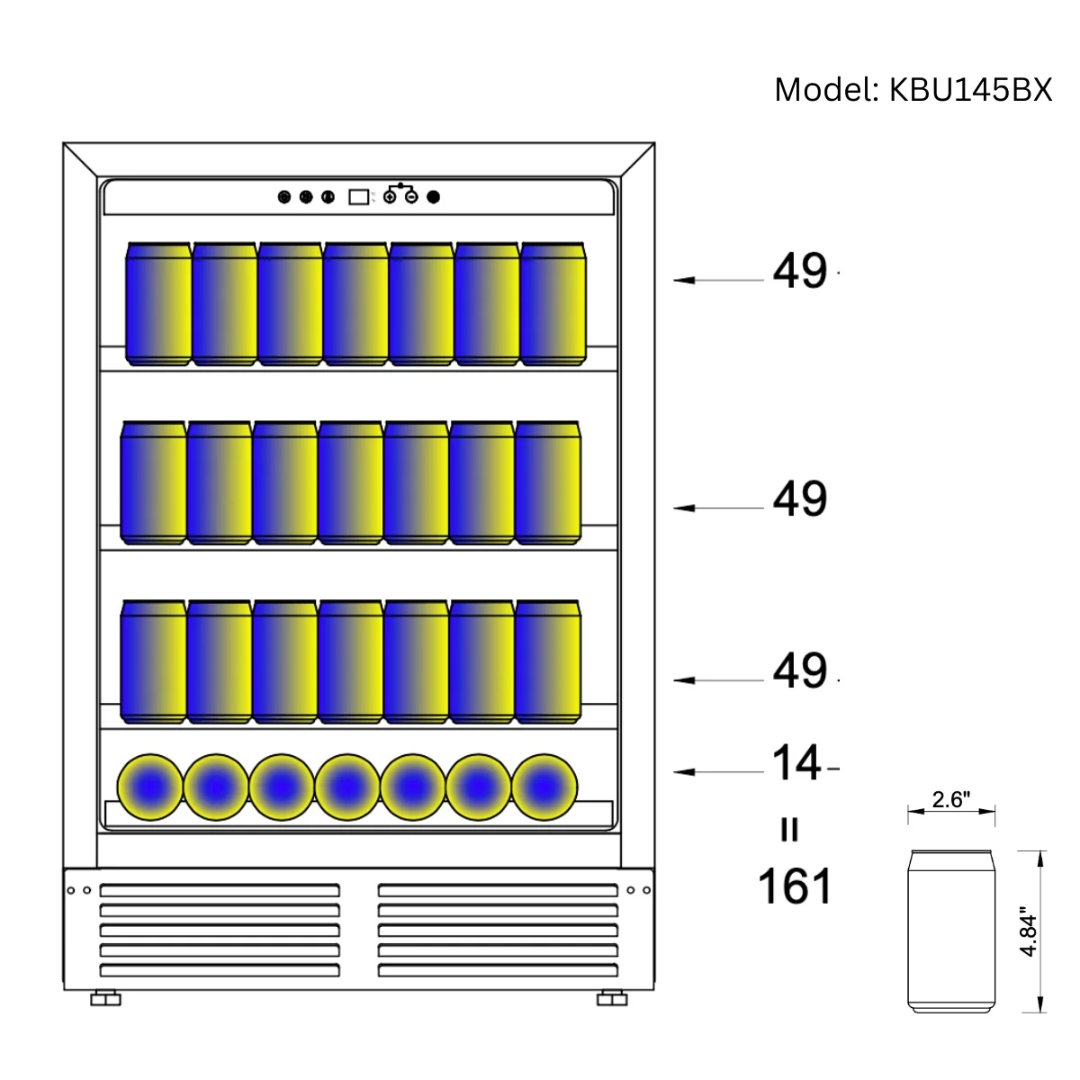

KBU145BX front-vented built-in undercounter beverage cooler schematic — 161-can capacity (49/49/49/14), three adjustable shelves, digital temperature controls

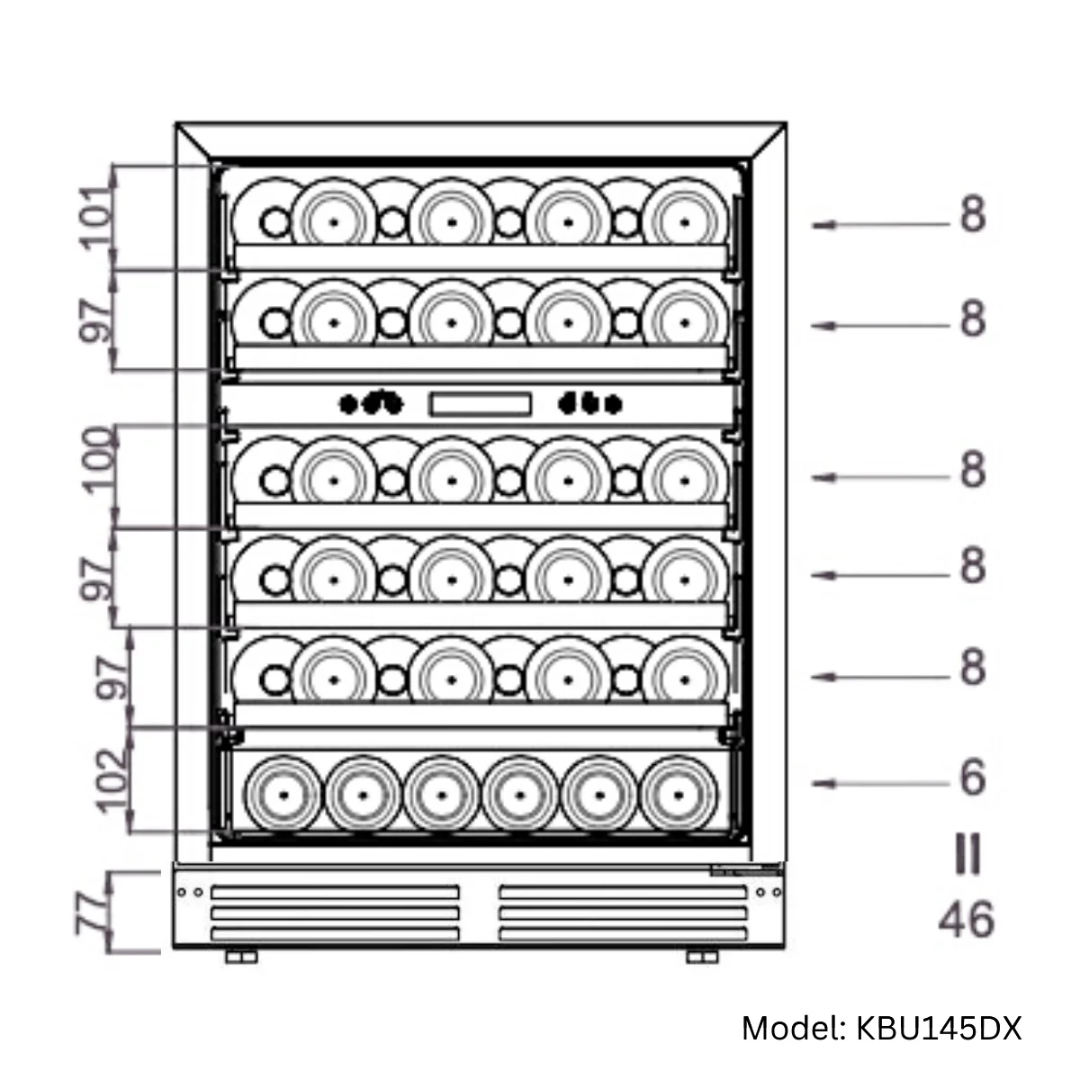

KBU145DX 46-bottle built‑in wine cooler front schematic showing six adjustable sliding shelves (five 8‑bottle shelves, one 6‑bottle shelf) with center digital control panel

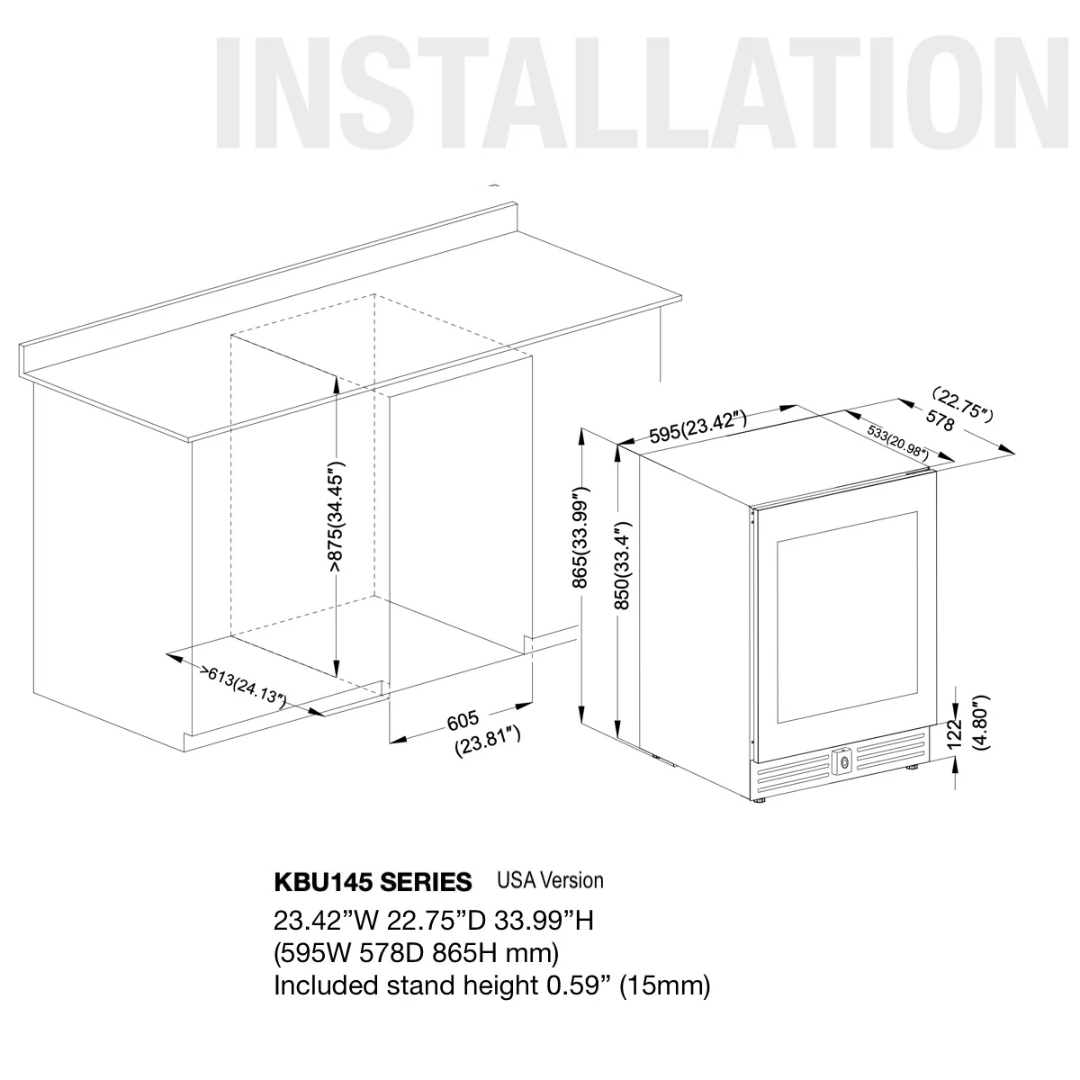

KBU145 series built-in undercounter wine cooler installation and cutout diagram with dimensions — front-vented glass-door beverage refrigerator 23.42"W x 22.75"D x 33.99"H (595×578×865 mm)

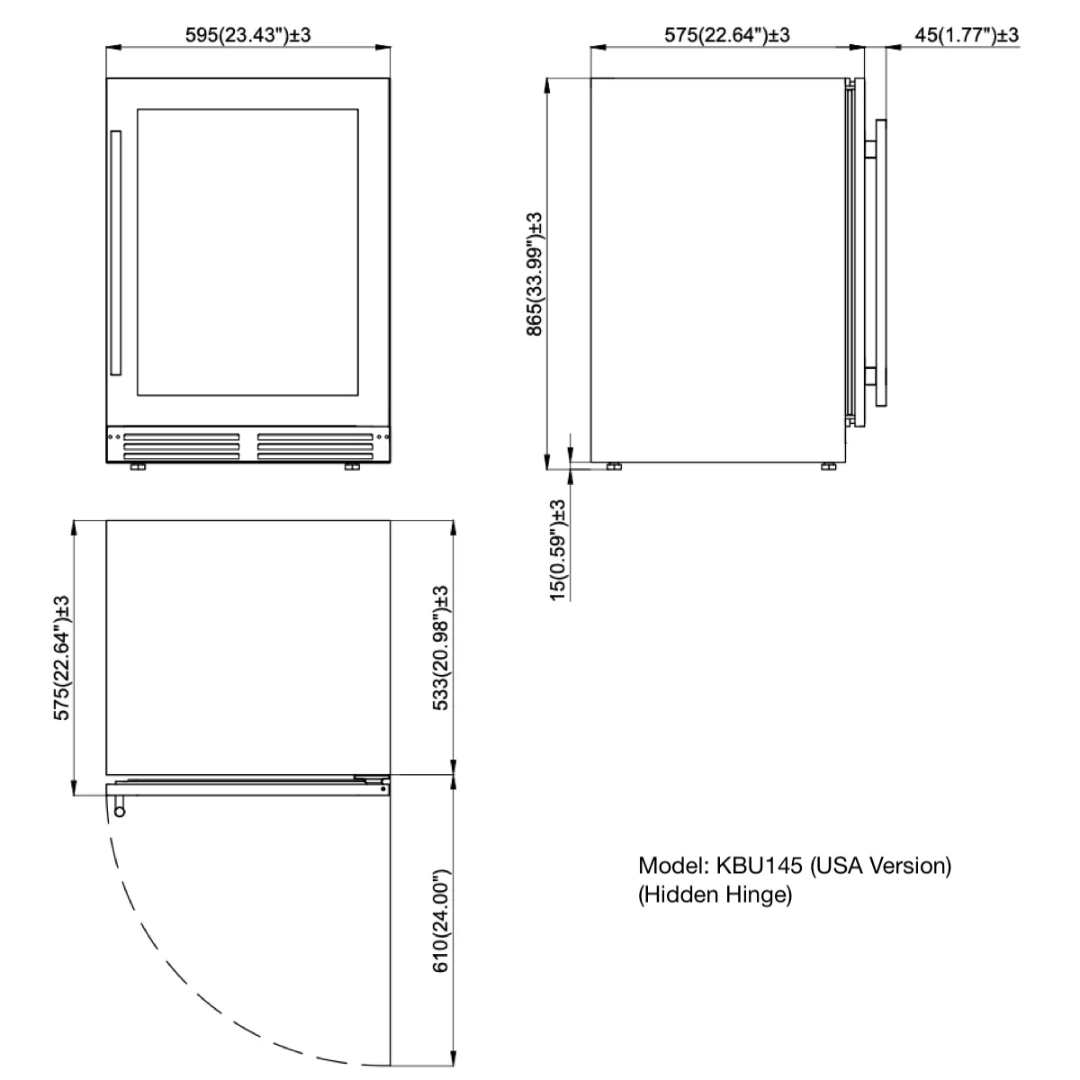

KBU145 built-in undercounter wine cooler dimensions diagram USA version hidden hinge front-venting glass door beverage refrigerator 595mm (23.43 in) W x 865mm (33.99 in) H x 575mm (22.64 in) D
Roll over image to zoom in Click on image to zoom
KBU145BW3-FG dual zone undercounter wine refrigerator with black stainless dual glass doors, left beverage section with chrome shelves, right wine section with wooden slide-out racks and digital temperature displayKB145BW3-SS built-in undercounter stainless steel dual-zone wine and beverage refrigerator with glass doors, left beverage storage and right wood-shelved wine cooler with digital controlsKB145BW3-FG built-in undercounter dual-zone wine and beverage refrigerator with glass doors and wooden shelvesKBU145BX front-vented built-in undercounter beverage cooler schematic — 161-can capacity (49/49/49/14), three adjustable shelves, digital temperature controlsKBU145DX 46-bottle built‑in wine cooler front schematic showing six adjustable sliding shelves (five 8‑bottle shelves, one 6‑bottle shelf) with center digital control panelKBU145 series built-in undercounter wine cooler installation and cutout diagram with dimensions — front-vented glass-door beverage refrigerator 23.42"W x 22.75"D x 33.99"H (595×578×865 mm)KBU145 built-in undercounter wine cooler dimensions diagram USA version hidden hinge front-venting glass door beverage refrigerator 595mm (23.43 in) W x 865mm (33.99 in) H x 575mm (22.64 in) D

Kings Bottle 48-Inch Ultimate Under Bench Wine Fridge and Bar Refrigerator Combo with 3 Temperature Zones

Kings BottleSKU: KBU145BW3-FG
Door Style: Borderless Black Glass Door
Price:
$3,495.00

Oversize Shipping

This item is over the standard size limit. An oversize fee will be added at checkout.

You may also like

Description

KingsBottle 24-Inch Under-Counter Triple Zone Wine and Beverage Cooler
Elevate your wine and beverage storage with the KingsBottle 24-Inch Under-Counter Triple Zone Wine and Beverage Cooler. Designed to provide the perfect storage solution for both wine and beverages, this elegant unit fits seamlessly in any kitchen, bar, or entertainment space. Featuring three separate temperature zones, it allows you to store wine, beer, and other beverages at their ideal temperatures, ensuring they’re always ready to enjoy.

The wine side features a dual-zone cooling system to store red and white wines at their perfect temperatures. The beer and beverage side offers a third zone to keep your drinks chilled. The unit is equipped with an Embraco Inverter Compressor for quieter operation, energy efficiency, and optimal cooling performance.

Crafted with stainless steel and featuring a Low-E glass door, this cooler combines style and functionality. The Beech wooden shelves hold up to 46 bottles of wine, while the chromed steel shelves accommodate up to 161 cans or bottles of beer or other beverages. The fan-circulated air-cooling system ensures uniform temperature distribution, and the activated carbon filter keeps the interior air fresh. The LED digital touchpad control provides easy access to adjust temperature settings for each zone.

Perfect for built-in or freestanding use, this cooler is a versatile addition to any space.

Key Features
Triple-Zone Cooling: Features three separate temperature zones to store wine (red and white) and beer at their optimal temperatures.
Capacity: Holds up to 46 wine bottles and 161 beer cans/bottles.
Energy-Efficient Inverter Compressor: Embraco inverter compressor reduces energy consumption by 40% and operates quietly for optimal performance.
LED Digital Touchpad Control: Easy-to-use digital display to adjust and monitor temperatures for each zone.
Beech Wooden Shelves: Wine-friendly shelves designed for standard and larger wine bottles.
Low-E Glass Door: Provides UV protection, reducing condensation and enhancing energy efficiency.
Activated Carbon Filter: Keeps the interior air fresh and free from impurities.
Magnetic Switch & Door Open Alarm: Alerts you when the door is left open for more than two minutes.

Specifications
Specification Details
Volume 5.12CF*2 (145*2 Litre)
Capacity 161 Cans (330 ml) + 46 bottles of wine
Installation Built-in or freestanding, Front Venting
Shelf Configuration 4 Chromed Steel Shelves + 6 Beech Wooden Shelves
Beer Side Temperature Range 35°F to 68°F (2°C to 20°C)
Wine Side Temperature Range Upper Zone 35°F to 54°F (2°C to 12°C); Lower Zone 54°F to 68°F (12°C to 20°C)
Room Temperature Range 32 - 100 °F (0 - 38°C)
Noise Level <42dB
Rated Power Input 110-115V/60HZ
Rated Current 1.7A
Power Input 165W
Power Lamp 0.7W
Refrigerant R600A / 52g
Unit Size (Each Unit) 23.42”W x 22.75”D x 33.99” H
Net Weight 227 lbs
Shipping Weight 273 lbs
Additional Information

Fan Circulated Air-Cooling System: Ensures temperature uniformity across the entire unit, maintaining optimal conditions for both wine and beverages.
Seamless Stainless Steel Door Frame: Stylish, thin, and easy to clean, complementing any kitchen or bar design.
Adjustable Shelving: Customizable shelving to store various bottle sizes and accommodate cans or bottles.
Built-in or Freestanding: Flexible installation options to fit any space.
Quiet Operation: Operates at a low noise level (<42dB), ensuring minimal disruption in your home or business environment.
