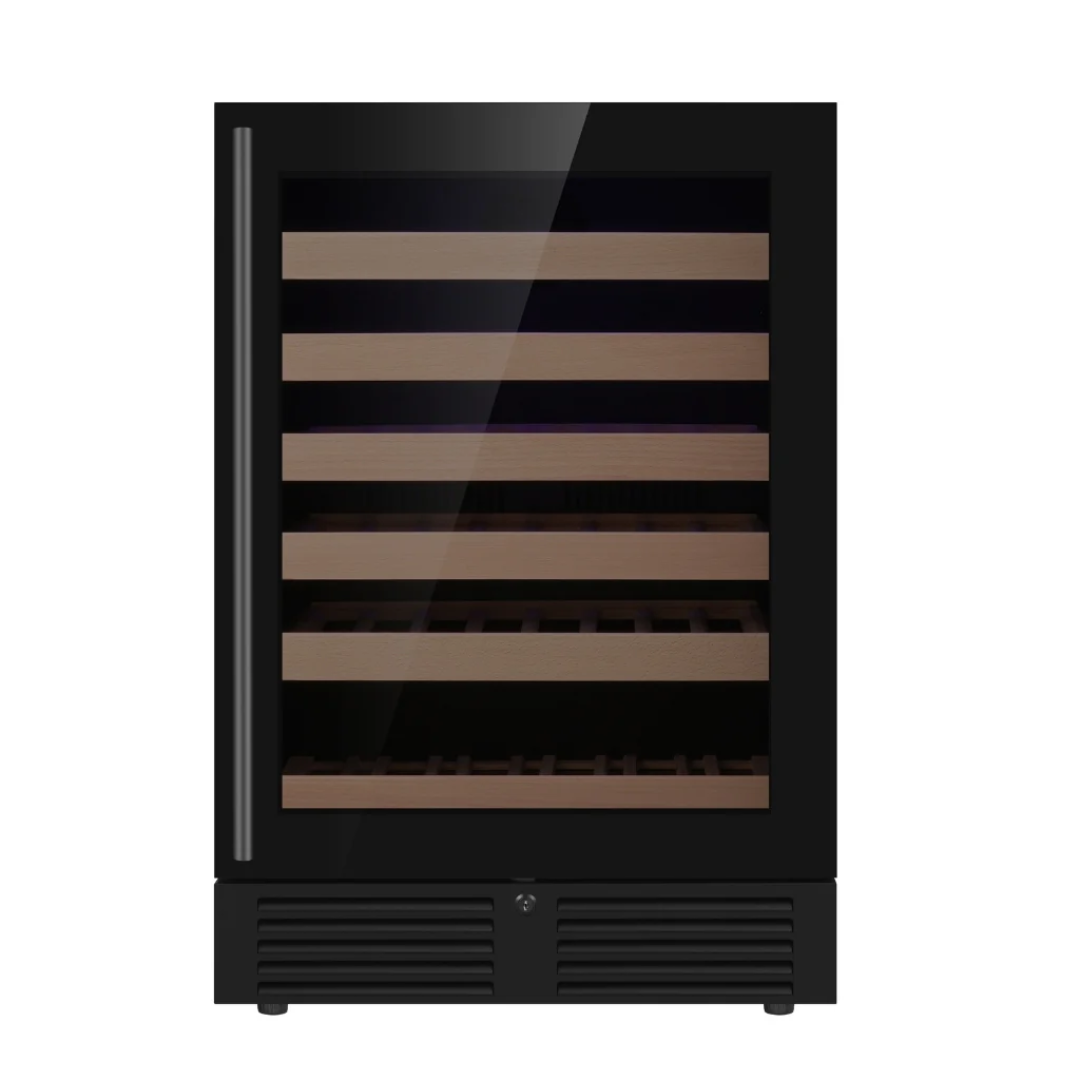

KBU145WX-FGRHH built-in undercounter wine cooler with black glass door, vertical bar handle, wooden slide-out shelves, blue LED interior lighting and digital touch controls
KBU145WX front-vented built-in undercounter wine refrigerator cooler with black glass door, vertical tubular handle and light wood slide-out shelves

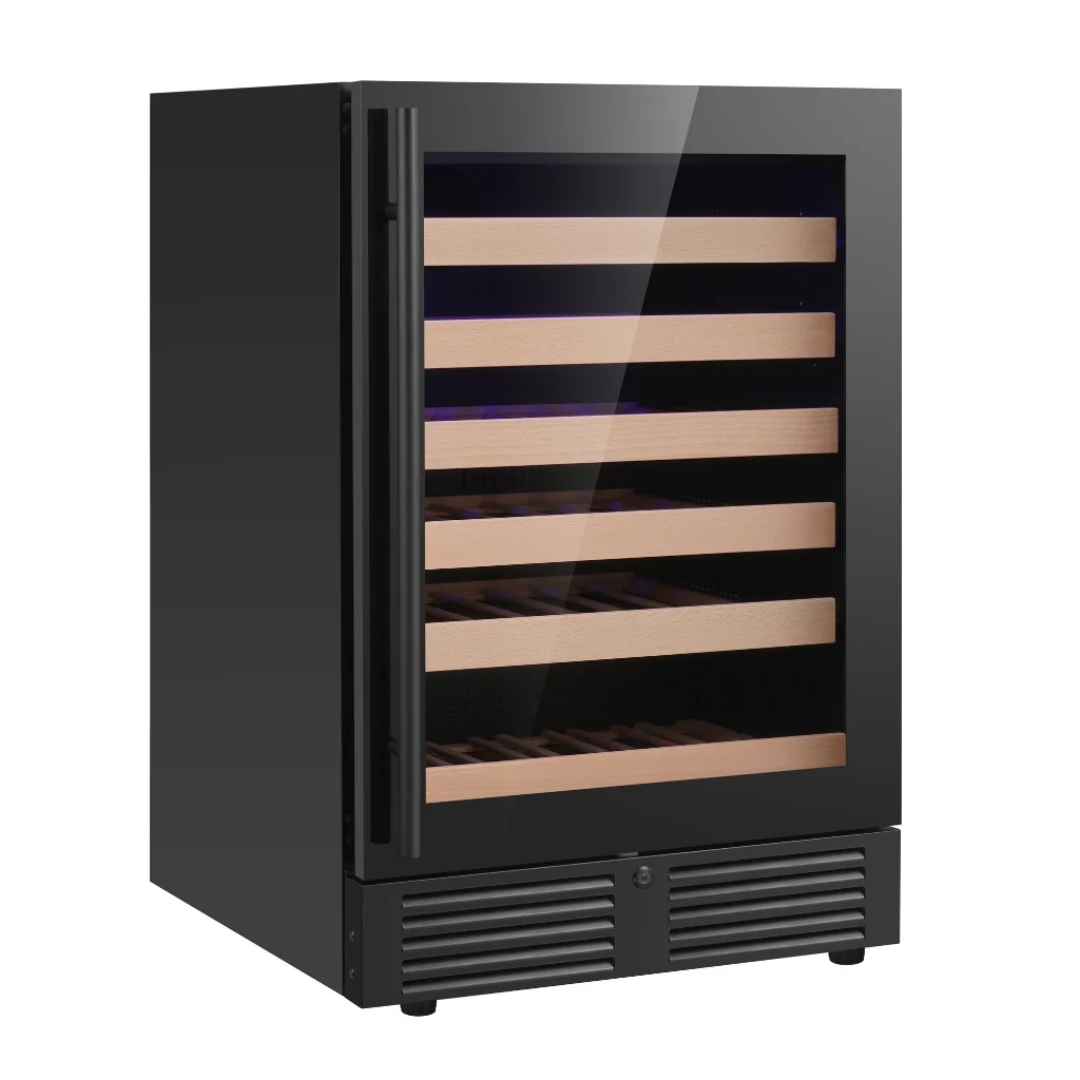

Built-in undercounter wine fridge KBU145WX-FGRHH — black glass door wine cooler with vertical stainless handle, wooden slide-out shelves, front vent and key lock for home bar and kitchen

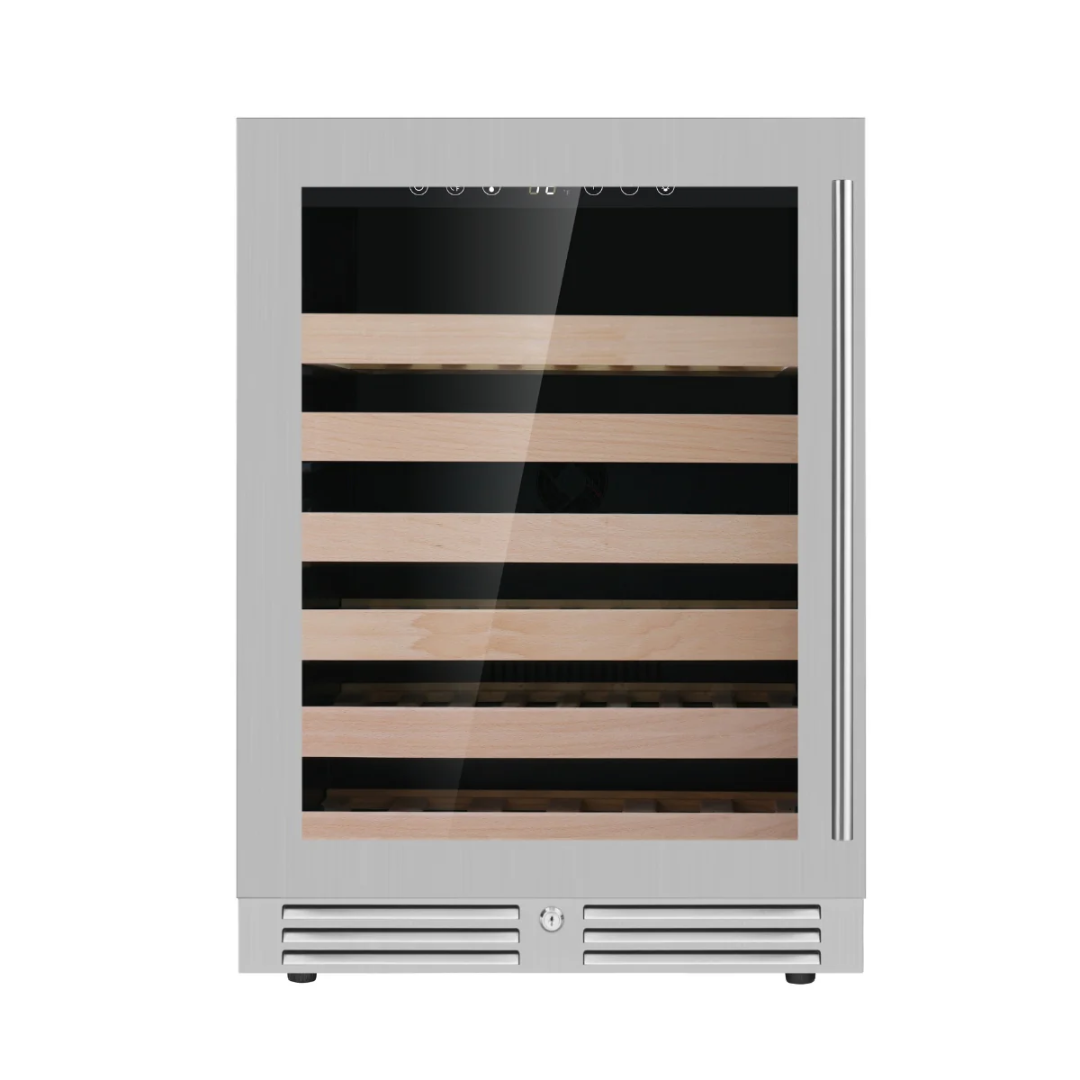

KB145WX-SSLHH stainless steel built-in undercounter wine cooler with glass door, vertical stainless handle, lockable front-vented grille and wooden slide-out wine shelves

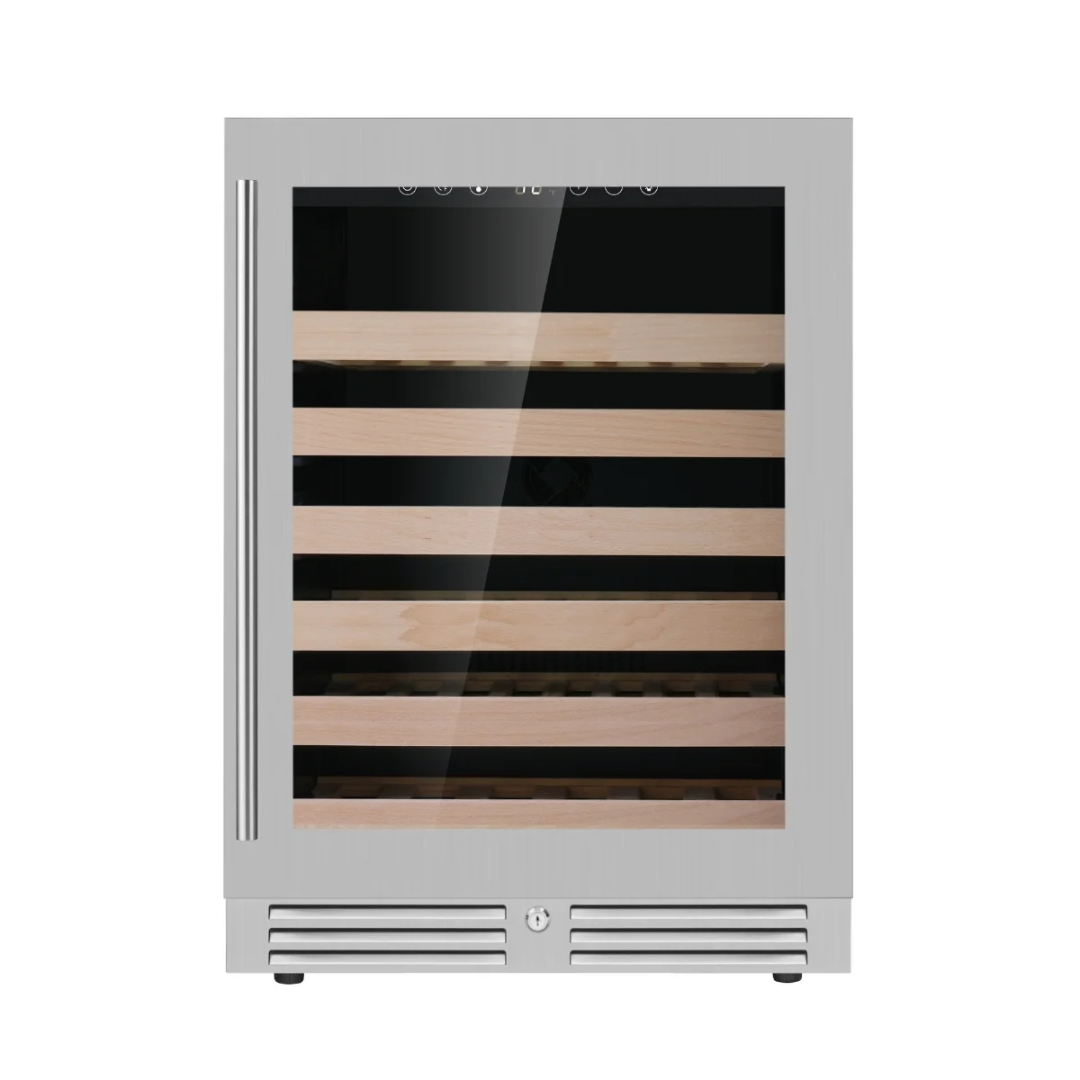

KB145WX-SSRHH 24-inch built-in stainless steel undercounter wine cooler with glass door and wooden shelves

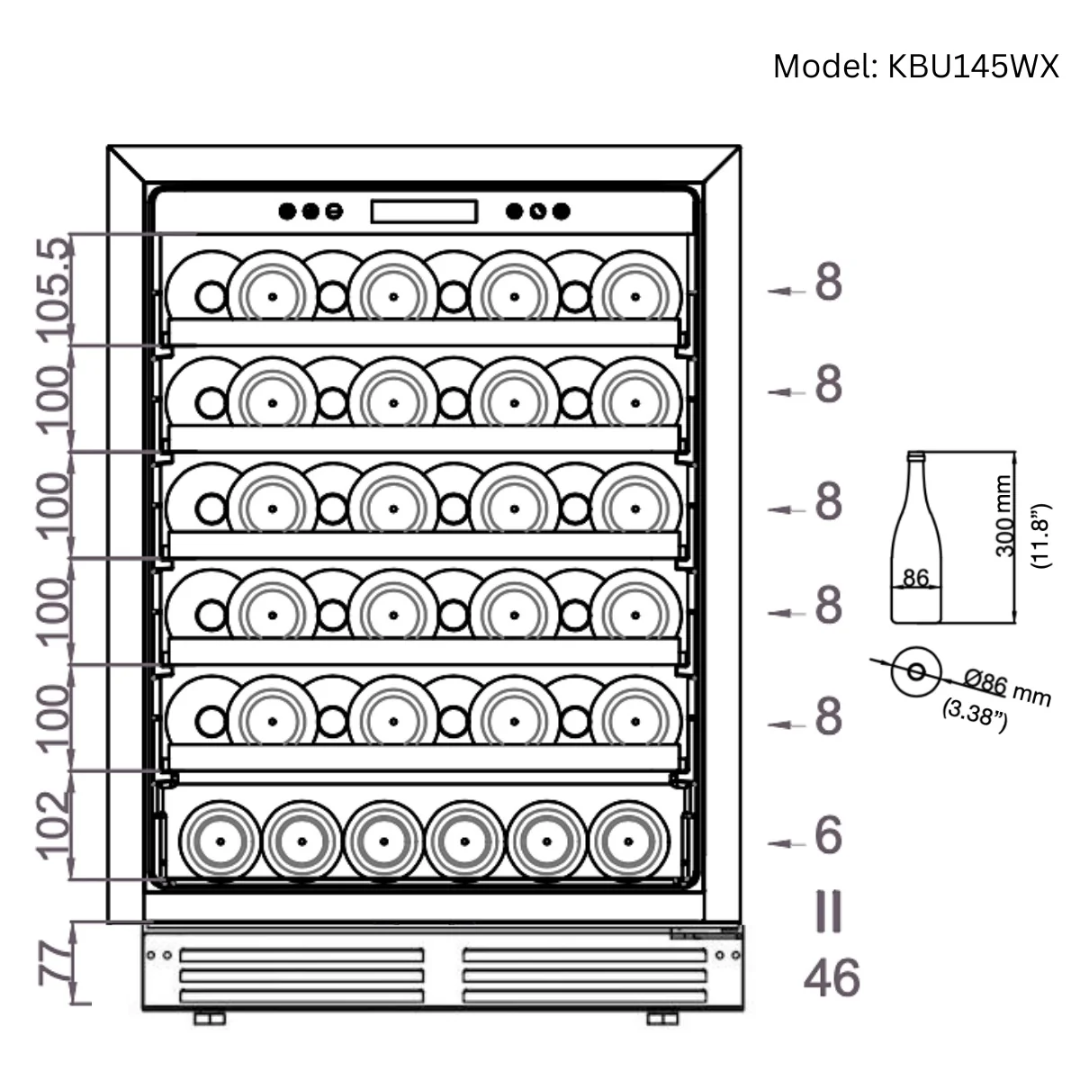

Model KBU145WX 46-bottle built-in undercounter wine cooler technical diagram showing six-shelf wine storage layout (8 bottles per shelf, bottom 6), 100–105mm shelf spacing, 300mm bottle height × Ø86mm diameter, front-vented toe-kick and digital control panel

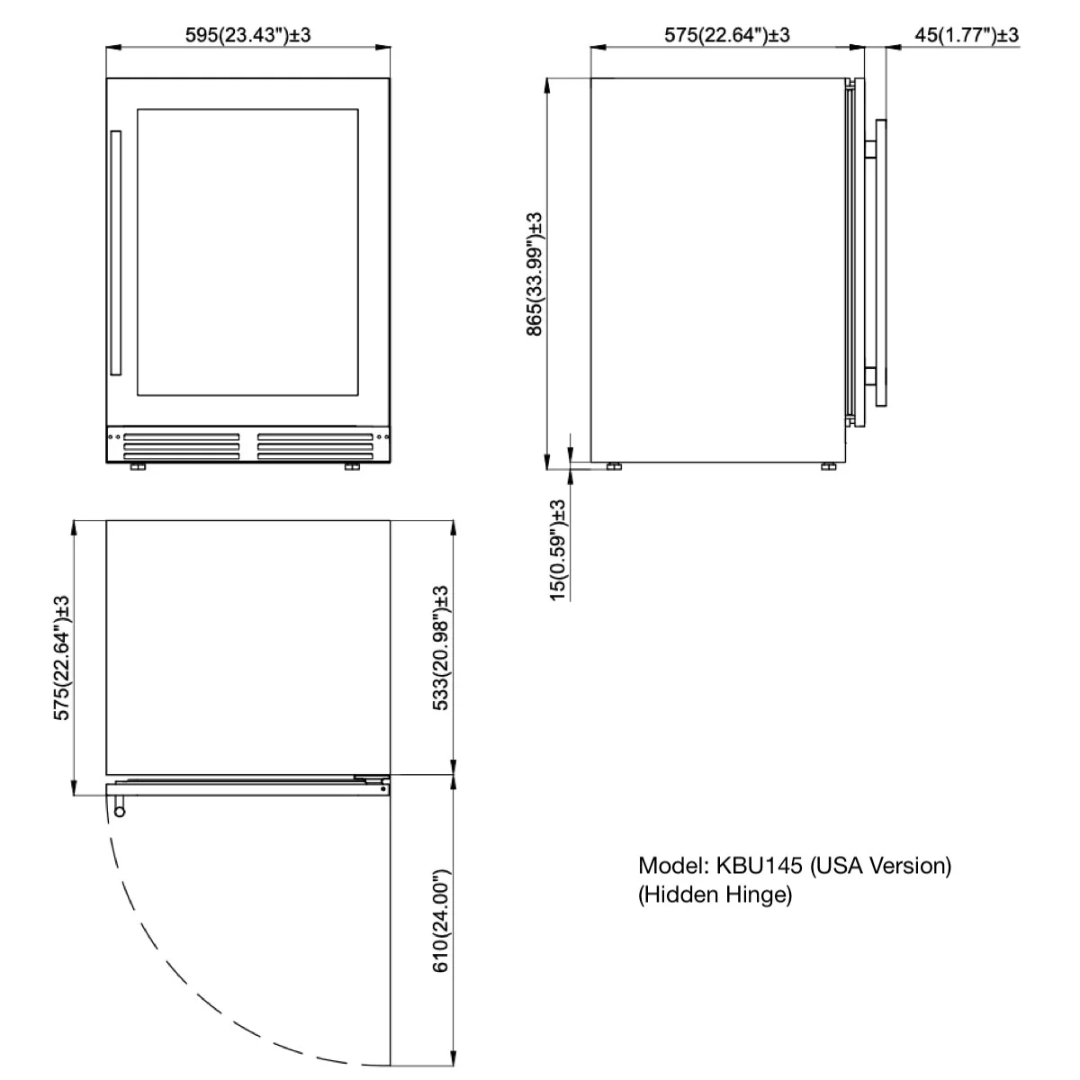

KBU145 24" built-in undercounter wine and beverage cooler dimension drawing (USA version, hidden hinge glass door) — 23.43" W × 22.64" D × 33.99" H (595×575×865 mm)

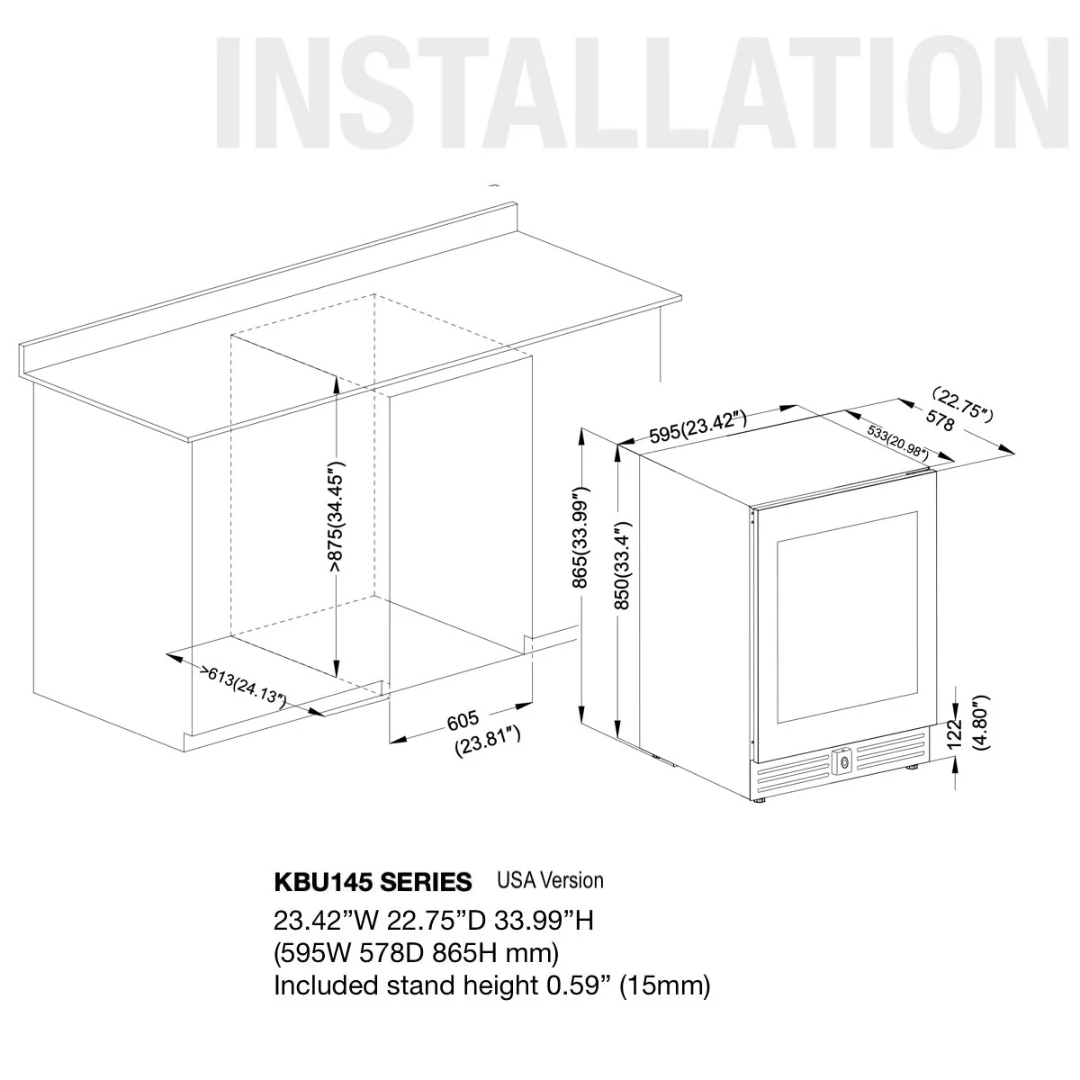

KBU145 Series built-in undercounter beverage refrigerator installation and cabinet cutout diagram showing exterior dimensions 23.42 in W x 22.75 in D x 33.99 in H (595 x 578 x 865 mm), front-vented glass door and included 0.59 in (15 mm) stand height
Roll over image to zoom in Click on image to zoom
KB145WX-FGLHH built-in undercounter wine cooler with black glass door, vertical stainless handle and wood-slat shelves for wine bottle storageKBU145WX-FGRHH built-in undercounter wine cooler with black glass door, vertical bar handle, wooden slide-out shelves, blue LED interior lighting and digital touch controlsKBU145WX front-vented built-in undercounter wine refrigerator cooler with black glass door, vertical tubular handle and light wood slide-out shelvesBuilt-in undercounter wine fridge KBU145WX-FGRHH — black glass door wine cooler with vertical stainless handle, wooden slide-out shelves, front vent and key lock for home bar and kitchenKB145WX-SSLHH stainless steel built-in undercounter wine cooler with glass door, vertical stainless handle, lockable front-vented grille and wooden slide-out wine shelvesKB145WX-SSRHH 24-inch built-in stainless steel undercounter wine cooler with glass door and wooden shelvesModel KBU145WX 46-bottle built-in undercounter wine cooler technical diagram showing six-shelf wine storage layout (8 bottles per shelf, bottom 6), 100–105mm shelf spacing, 300mm bottle height × Ø86mm diameter, front-vented toe-kick and digital control panelKBU145 24" built-in undercounter wine and beverage cooler dimension drawing (USA version, hidden hinge glass door) — 23.43" W × 22.64" D × 33.99" H (595×575×865 mm)KBU145 Series built-in undercounter beverage refrigerator installation and cabinet cutout diagram showing exterior dimensions 23.42 in W x 22.75 in D x 33.99 in H (595 x 578 x 865 mm), front-vented glass door and included 0.59 in (15 mm) stand height

Kings Bottle 24-Inch Under Counter LOW-E Glass Door Single Zone Wine Cooler

Kings BottleSKU: KBU145WX-FG RHH
Door Style: Borderless Black Glass Door
Door Opening: Right Hand Hinge
Price:
$1,795.00

Oversize Shipping

This item is over the standard size limit. An oversize fee will be added at checkout.

You may also like

Description

Enhance your wine storage experience with the KingsBottle 24-Inch Single Zone Upright Wine Cooler (KBU-170DX). Designed for wine lovers, this cooler maintains ideal storage conditions to preserve your wine collection’s quality and flavor. With a capacity of up to 46 bottles, it accommodates a variety of bottle sizes, including larger diameters, while keeping them at the perfect serving temperature. This elegant wine fridge offers efficient, fan-circulated cooling technology and an Embraco Inverter Compressor, reducing energy consumption by 40% and operating at an ultra-quiet level. The Low-E glass door protects your wine from harmful UV rays, and the sleek, modern design fits perfectly in any home bar, kitchen, or wine cellar. Whether freestanding or installed as a built-in unit, the KBU-170DX provides exceptional performance for the discerning wine collector.

Key Features
Single Zone Temperature Control: Ideal for storing all your wines at a consistent temperature, ranging from 35°F to 54°F (2°C to 20°C).
Embraco Inverter Compressor: Ultra-quiet and energy-efficient, reduces energy consumption by 40% while providing consistent cooling performance.
Low-E Glass Door: Provides UV protection to prevent light damage while reducing condensation and enhancing energy efficiency.
Beech Wooden Shelves: 6 beech wooden full-extension pull-out shelves designed to hold up to 46 bottles, with optimized spacing for standard, large, and sparkling bottles.
Fan-Circulated Air Cooling: Ensures temperature uniformity throughout the cabinet, reducing fluctuations and maintaining optimal conditions.
LED Digital Touchpad Control: Easy-to-use interface for temperature and lighting adjustments.
Magnetic Door Switch: Aggressive light control with a door-open alarm that notifies you after 2 minutes if the door is left ajar.
Additional Features: Activated carbon filter, hidden door hinge, compressor sink, 45mm thickness C-Pantane, noise level <42dB.

Specifications
Specification Wine Cooler Model
Volume 5.12 CF (145 Litre)
Capacity 46 Bottles of Wine
Installation Built-in or Freestanding, Front Venting
Shelf Configuration 6 Beech Wooden Shelves
Adjustable Temperature Range 35°F to 54°F (2°C to 20°C)
Min/Max Room Temperature 32°F - 100°F (0°C - 38°C)
Noise Level <42dB
Inverter Compressor Yes
Compressor Sink Yes
45mm Thickness C-Pantane Yes
Fan Circulated Air-Cooling System Yes
Activated Carbon Filter Yes
Low-E Glass Yes
LED Display Digital Touchpad Control Yes
Magnetic Switch Yes
Hidden Door Hinge Yes
Seamless S/S Door Frame Yes
Rated Power Input 110-115V/60HZ
Rated Current 1.7A
Power Input 165W
Refrigerant R600A / 45g
Unit Size (W x D x H) 23.42”W x 22.75”D x 33.99”H
Included Stand Height 0.59” (15mm)
Weight 146 LB
Additional Information

Built-in or Freestanding: This wine cooler is versatile and can be installed as a built-in unit with minimal clearance or used freestanding in your desired location.

Energy Efficient: The combination of Embraco Inverter Compressor and Low-E glass door ensures energy savings while maintaining the optimal environment for wine storage.

Quiet Operation: The inverter compressor reduces noise levels, providing a peaceful environment for storing your wine collection.

Sleek and Modern Design: Designed with a borderless black glass door and stainless steel frame, this wine cooler seamlessly integrates into your home or bar area, adding a touch of sophistication.
