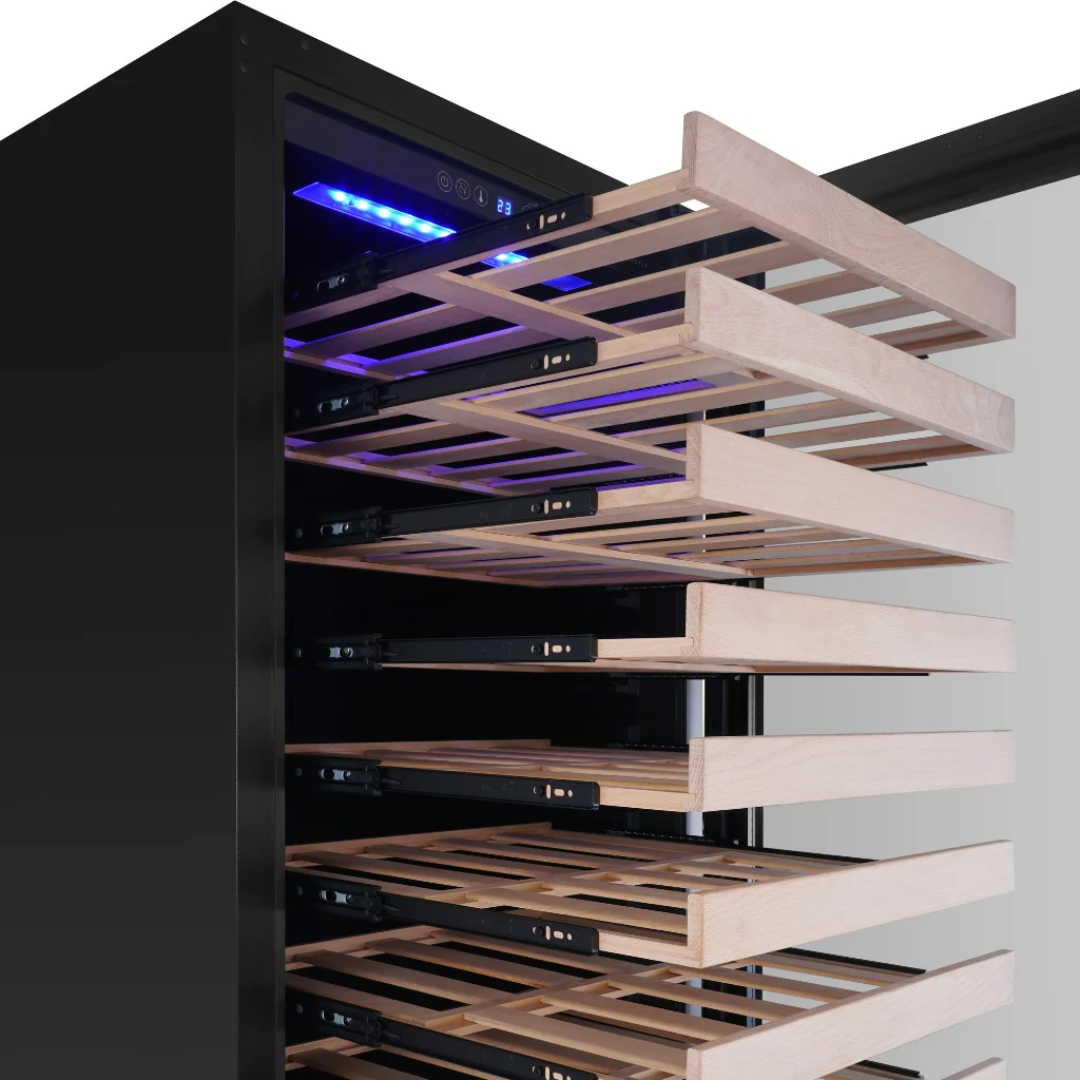

Vine & Flame beech wood slide-out wine cooler shelves with full-extension glides and blue LED interior lighting

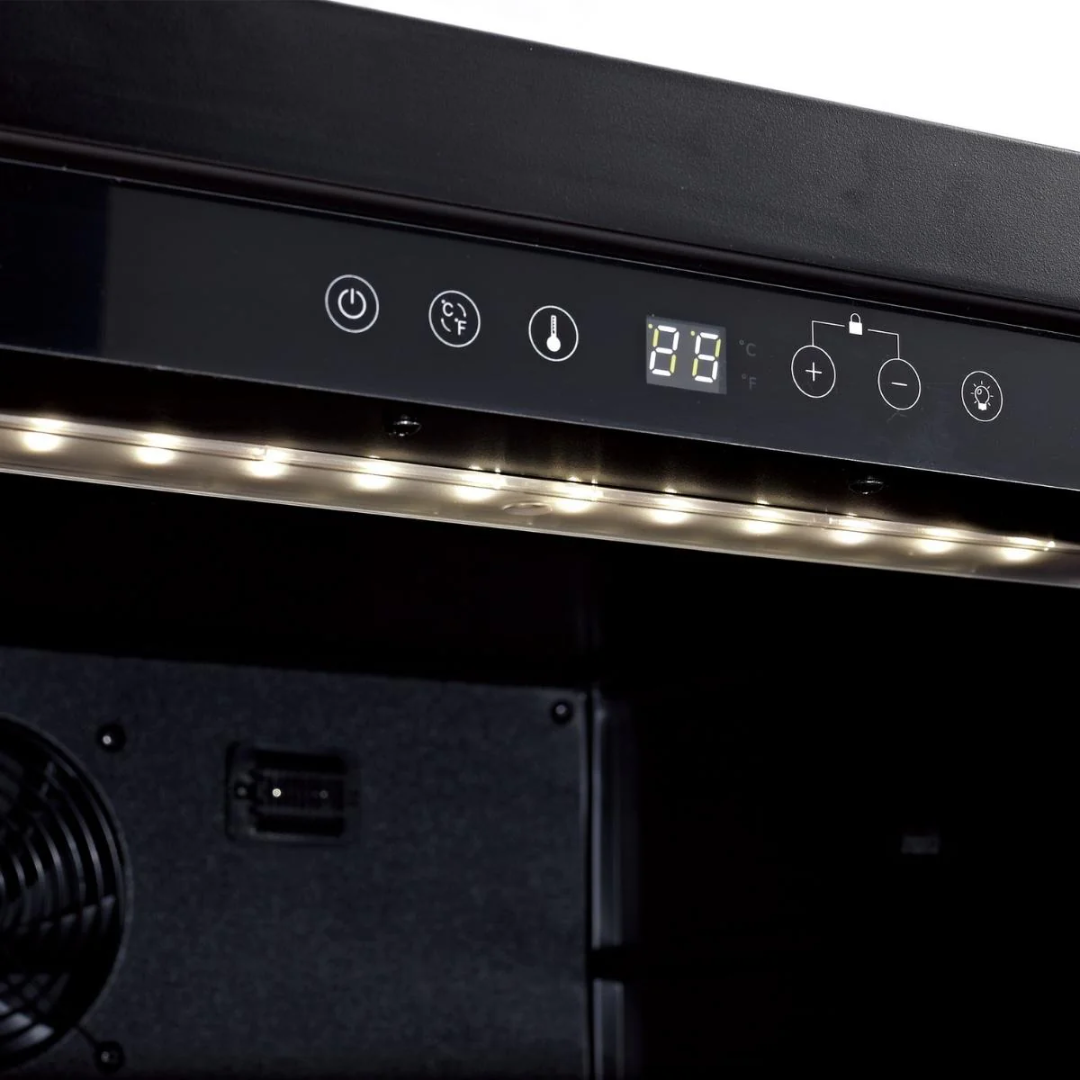

Vine & Flame wine cooler digital touchpad control panel with LED temperature display, °C/°F toggle, temperature +/- buttons, lock icon and interior LED light strip

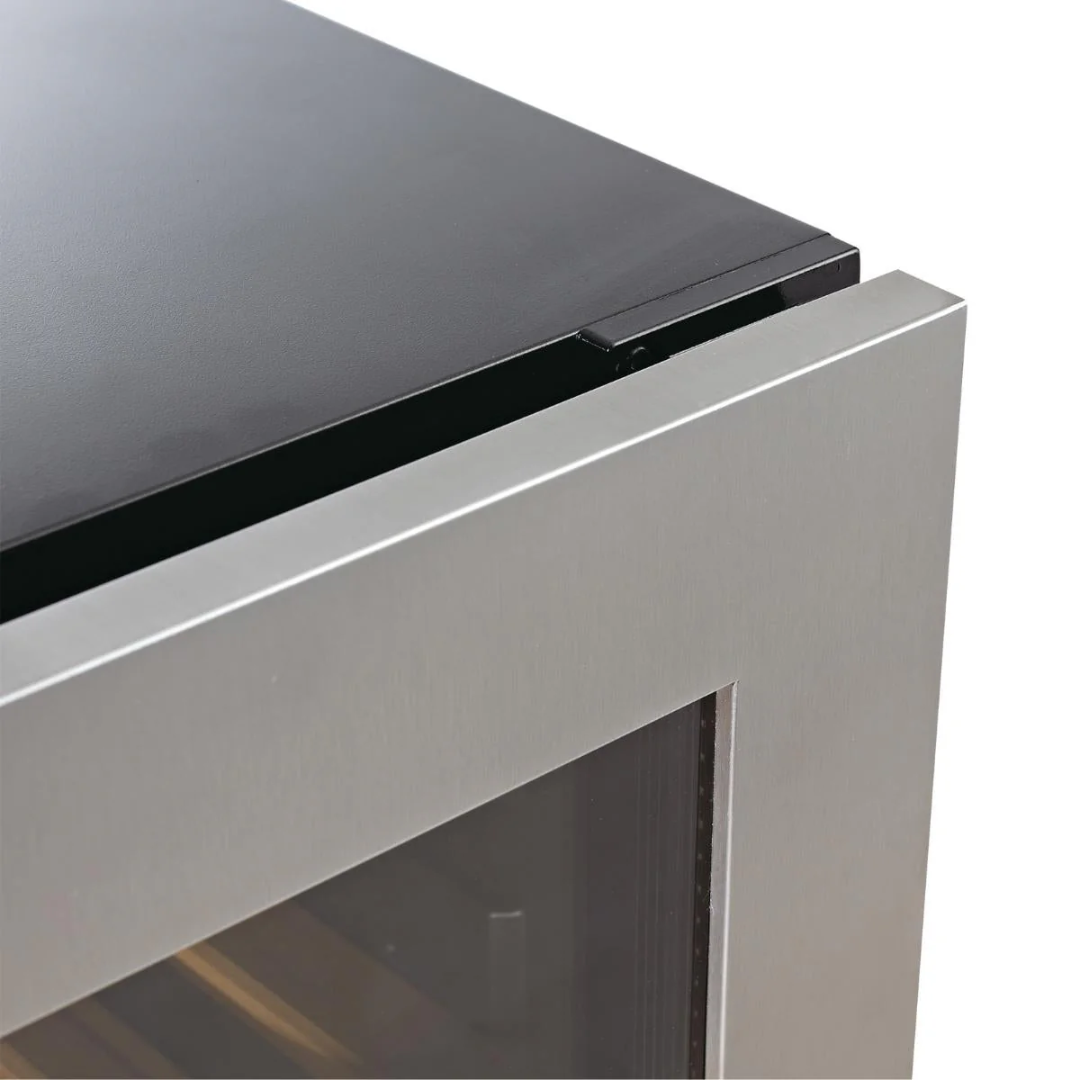

Vine & Flame wine refrigerator framed glass door top corner close-up showing concealed stainless steel hinge

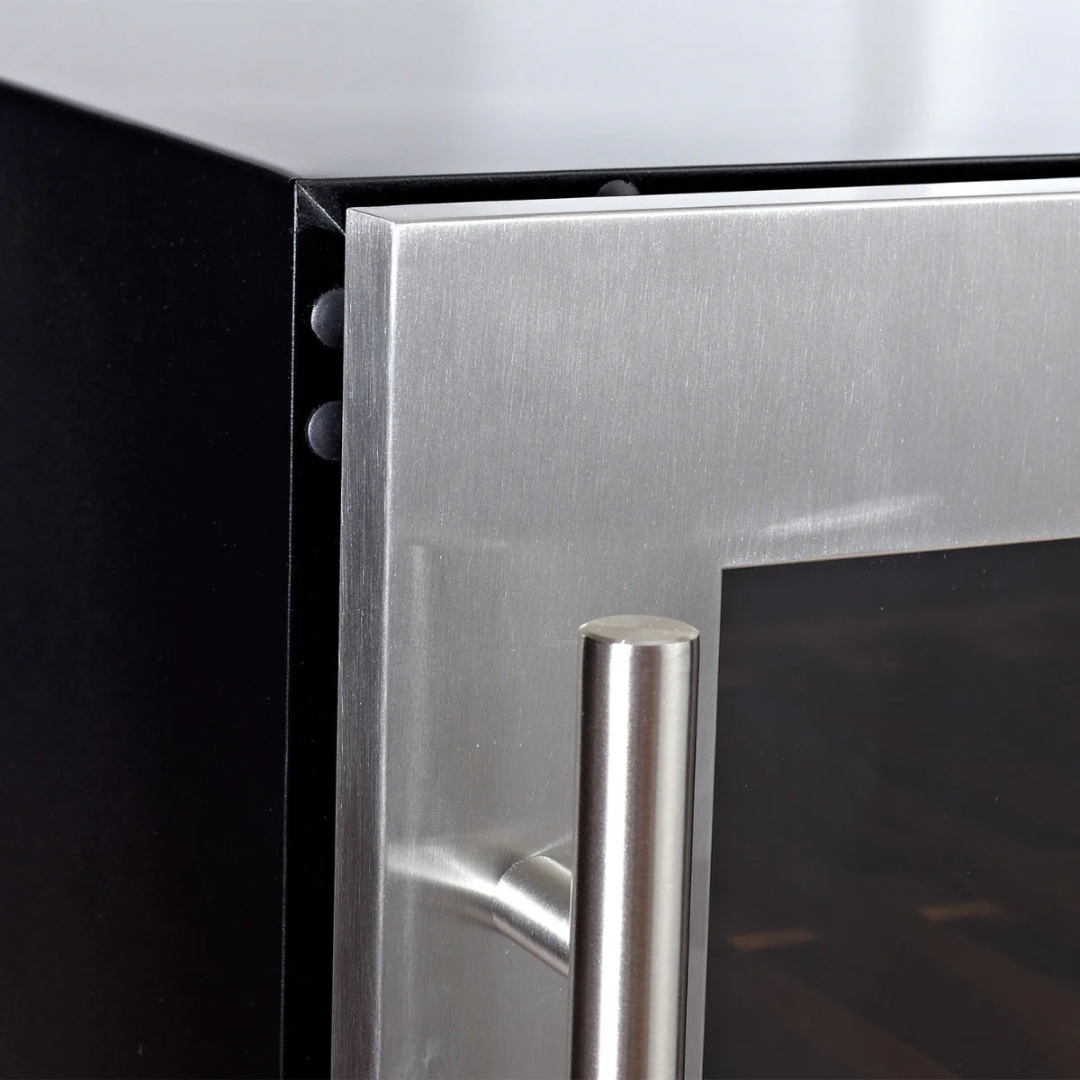

Seamless brushed stainless steel door frame with tubular stainless handle and glass panel for built-in wine cooler

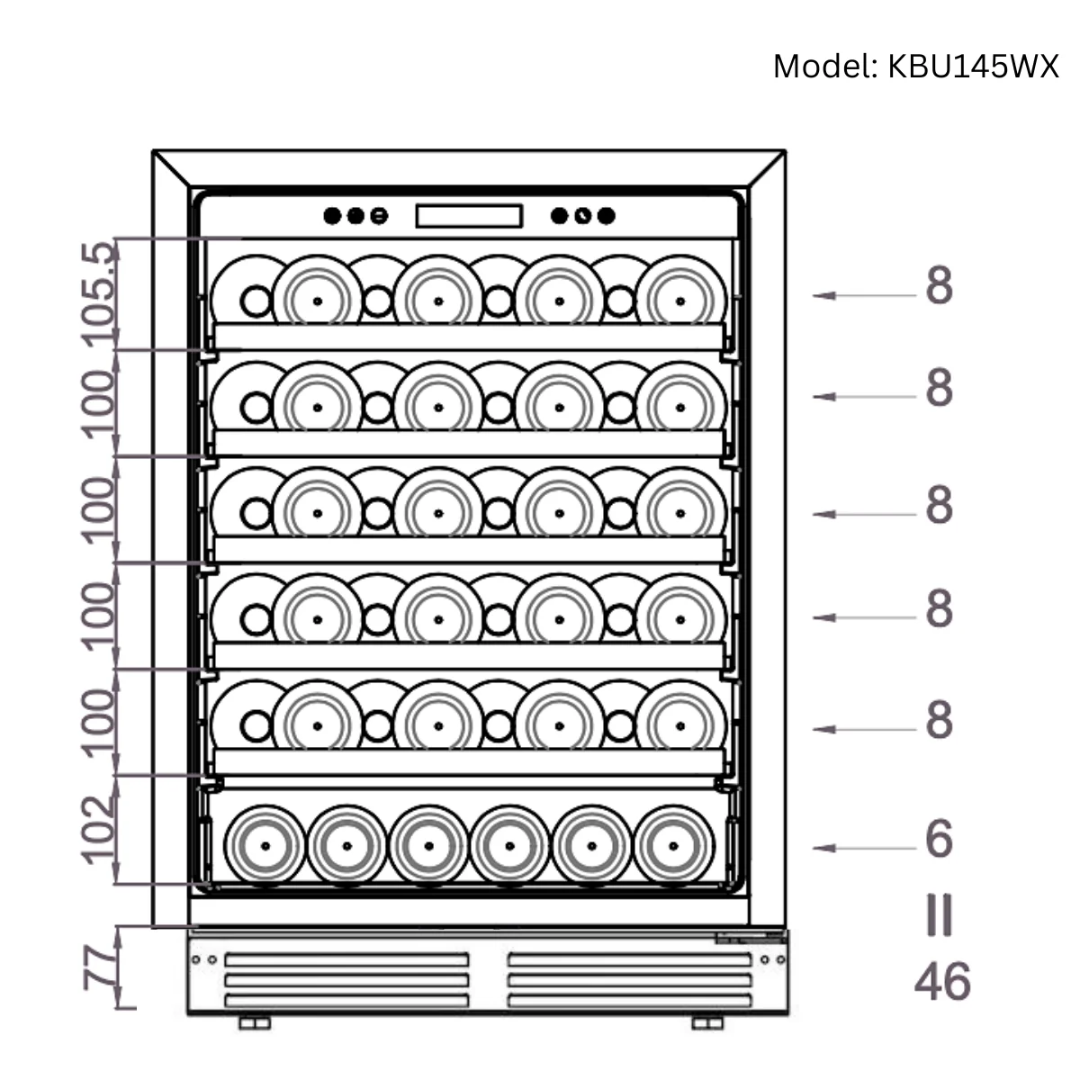

KBU145WX 46‑bottle built‑in undercounter wine cooler diagram — front view showing shelf layout (five 8‑bottle shelves + one 6‑bottle shelf), digital control panel and vented toe‑kick

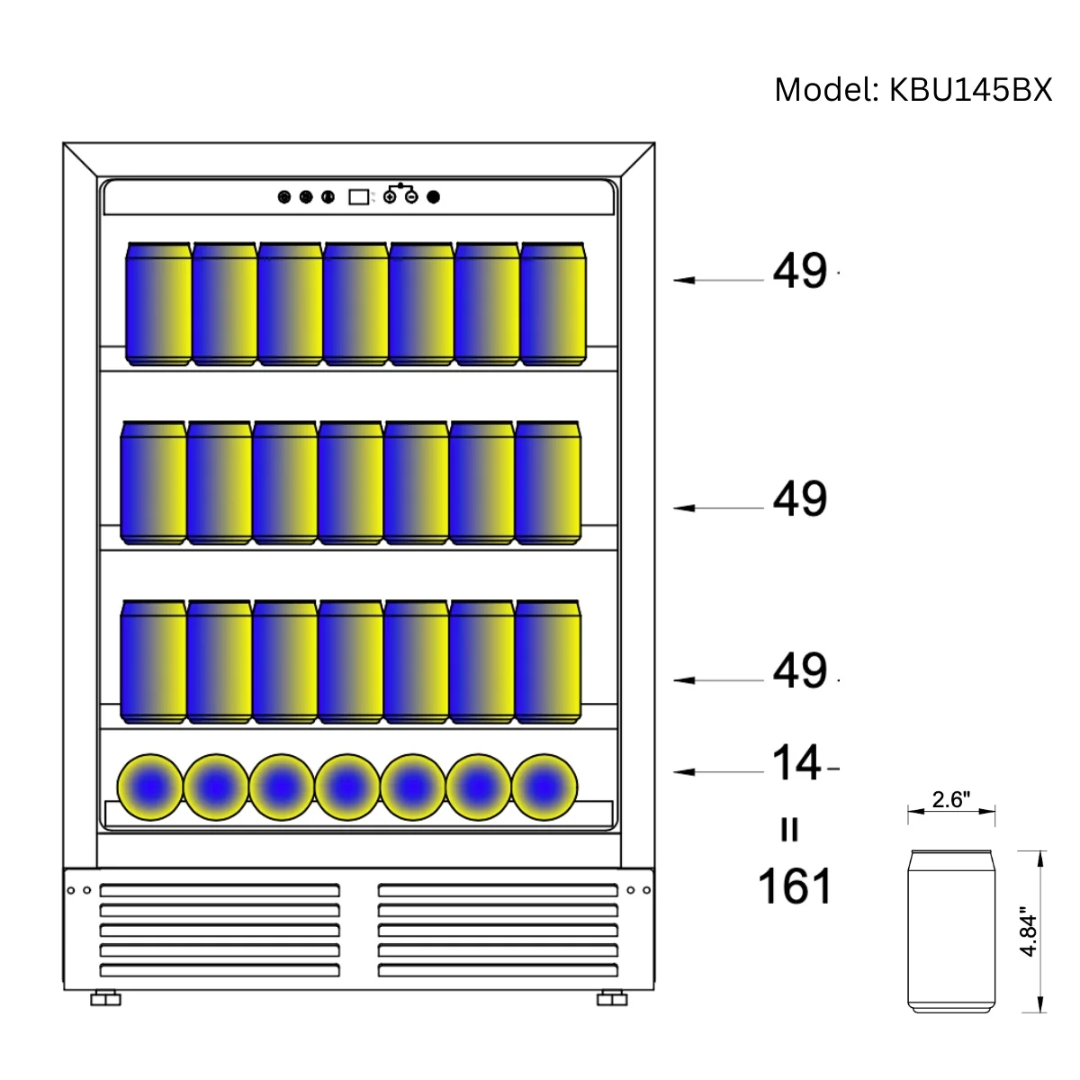

Vine & Flame KBU145BX undercounter beverage refrigerator diagram showing shelf layout and 161-can capacity (three shelves × 49 cans each + 14-bottle bottom), front vent grille, top control panel, can size 2.6 in × 4.84 in

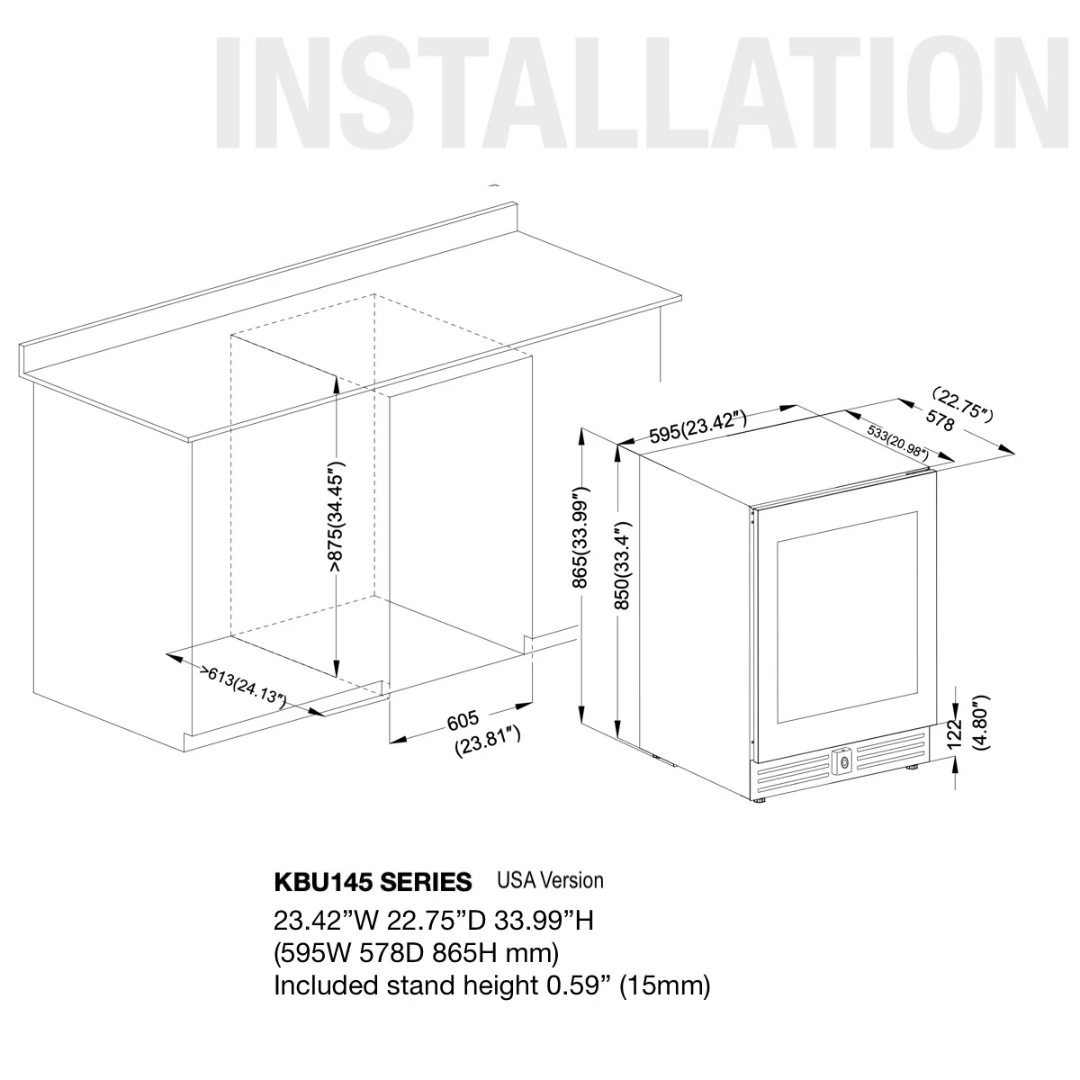

KBU145 Series built-in undercounter wine and beverage refrigerator installation cutout diagram 23.42″W x 22.75″D x 33.99″H (595 x 578 x 865 mm) USA version with 0.59″ (15 mm) included stand height

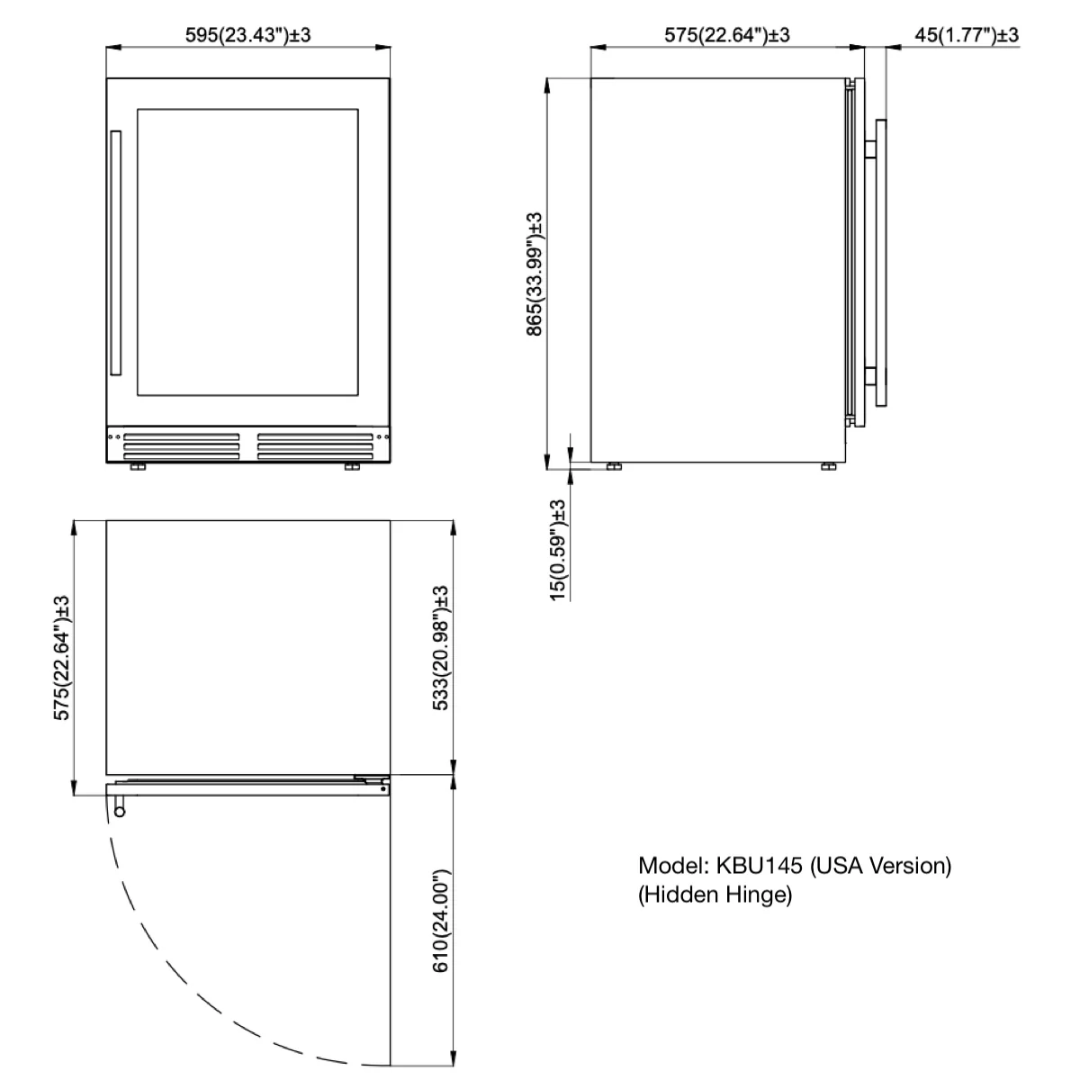

Vine and Flame KBU145 (USA) hidden-hinge 24-inch undercounter built-in beverage refrigerator wine cooler dimension drawing — 595mm (23.43") W × 865mm (33.99") H × 575mm (22.64") D, glass door, bottom vent
Roll over image to zoom in Click on image to zoom
KB145BW2-SS stainless steel dual-zone undercounter wine fridge and beverage center with left glass door stocked with cans and bottled drinks and right glass door wine compartment with wooden shelvesVine and Flame KB145BW2-FG built-in dual-zone undercounter beverage and wine refrigerator, black glass doors with stainless handles, left stocked beverage cooler with cans and bottles, right wine cooler with wooden shelvesVine & Flame beech wood slide-out wine cooler shelves with full-extension glides and blue LED interior lightingVine & Flame wine cooler digital touchpad control panel with LED temperature display, °C/°F toggle, temperature +/- buttons, lock icon and interior LED light stripVine & Flame wine refrigerator framed glass door top corner close-up showing concealed stainless steel hingeSeamless brushed stainless steel door frame with tubular stainless handle and glass panel for built-in wine coolerKBU145WX 46‑bottle built‑in undercounter wine cooler diagram — front view showing shelf layout (five 8‑bottle shelves + one 6‑bottle shelf), digital control panel and vented toe‑kickVine & Flame KBU145BX undercounter beverage refrigerator diagram showing shelf layout and 161-can capacity (three shelves × 49 cans each + 14-bottle bottom), front vent grille, top control panel, can size 2.6 in × 4.84 inKBU145 Series built-in undercounter wine and beverage refrigerator installation cutout diagram 23.42″W x 22.75″D x 33.99″H (595 x 578 x 865 mm) USA version with 0.59″ (15 mm) included stand heightVine and Flame KBU145 (USA) hidden-hinge 24-inch undercounter built-in beverage refrigerator wine cooler dimension drawing — 595mm (23.43") W × 865mm (33.99") H × 575mm (22.64") D, glass door, bottom vent

Kings Bottle 24-Inch Ultimate Under-Bench Wine & Beverage Refrigerator Combo with Low-E Glass Door

Kings BottleSKU: KBU145BW2-FG
Door Style: Borderless Black Glass Door
Price:
$3,495.00

Oversize Shipping

This item is over the standard size limit. An oversize fee will be added at checkout.

You may also like

Description

KingsBottle KBU145BW2 is a 24-inch wine and beverage combo unit that combines style and functionality for kitchens, home bars, and entertainment spaces. With Low-E glass doors and a seamless stainless steel door frame, this unit is designed to fit built-in or freestanding with front venting for easy integration into cabinetry or standalone use.

Featuring dual temperature control, the wine and beverage sections each maintain a temperature range of 35°F to 68°F. Chromed steel shelves in the beverage area and beech wooden shelves in the wine area provide flexible and elegant storage. Energy-efficient LED lighting, an activated carbon filter, and quiet operation make this cooler well suited for home use. The Embraco inverter compressor maintains stable temperatures and reduces energy consumption by 40%, while the digital touchpad control offers precise adjustments.

Key Features
Single-Zone Wine & Beverage Storage: Store up to 46 bottles of wine and 161 cans of beverages in a compact and efficient combo unit.
Embraco Inverter Compressor: Quiet operation and 40% energy savings with top-brand Embraco inverter compressor technology.
Temperature Control Range: 35°F to 68°F for both wine and beverage sections.
Activated Carbon Filter: Keeps the interior fresh by filtering impurities in the air.
Wooden Beech Shelves for Wine Storage: Crafted for wine-friendly storage, designed to fit regular and larger bottles.
Chromed Steel Shelves for Beverage Storage: Durable shelving for cans and bottles.
Energy-Efficient LED Lighting: Showcases your collection without affecting interior temperature.
Low-E Glass Door: Provides UV protection, reducing condensation and improving energy efficiency.
Front Venting: Built for easy installation in cabinetry or can be used as a freestanding unit.
Digital Touchpad Control: Allows for easy temperature adjustments with precise digital readouts.

Specifications
Specification Details
Volume 5.12CF*2 (145*2 Litre)
Capacity 161 Cans (330 ml) + 46 bottles of wine
Installation Built-in or freestanding, Front Venting
Shelf Configuration 4 Chromed Steel Shelves + 6 Beech Wooden Shelves
Beer Side Temperature Range 35°F to 68°F (2°C to 20°C)
Wine Side Temperature Range 35°F to 68°F (2°C to 20°C)
Room Temperature Range 32 - 100 °F (0 - 38°C)
Noise Level <42dB
Rated Power Input 110-115V/60HZ
Rated Current 1.7A
Power Input 165W
Power Lamp 0.7W
Refrigerant R600A / 52g
Energy Consumption 1.18Kw*h/24h
Unit Size (Each Unit) 23.42”W x 22.75”D x 33.99”H
Net Weight 227 lbs
Shipping Weight 273 lbs
Additional Information

Seamless S/S Door Frame: Elegant, modern design with a thin, sleek stainless-steel frame.

Temperature Range for Wine Side: 35°F to 54°F (upper zone) and 54°F to 68°F (lower zone).

Designed for Under-Counter Placement: Each unit measures 23.42”W x 22.75”D x 33.99”H and is designed for under-counter placement with minimal clearance.

Activated Carbon Filter: Keeps the interior air fresh by filtering impurities.

Energy-Efficient LED Lighting: Showcases your collection without affecting interior temperature.
