Manufacturer Information

Highlights
Built for serious outdoor chefs, the Broilmaster Stainless B-Series 32" Built-In Grill offers professional-grade performance and lasting durability. With heavy-duty 304 stainless steel construction, four precision burners, and a rear infrared rotisserie burner, this grill delivers consistent results every time. It's designed for seamless integration into custom outdoor kitchens and comes standard with illuminated controls, a dual-position warming rack, and solid stainless steel grates.
Specification | Details |
---|---|
Manufacturer | Broilmaster |
Model | BSB324NLN |
Item Type | Gas Grill |
Configuration | Built‑In |
Fuel Type | Natural Gas (NG) |
Number of Main Burners | 4 Burners |
Main Grilling Area | 600 sq in. |
Secondary Grilling Area | 260 sq in. |
Total Grilling Area | 860 sq in. |
Grilling Surface BTUs | 60,000 BTUs |
Cooking Grid Dimensions | 30" W × 20" D |
Dimensions
Confirm the dimensions below to ensure a proper fit for your built-in outdoor kitchen design.
Specification | Details |
---|---|
Cutout Width | 30 3/4" |
Cutout Depth | 20 3/4" |
Cutout Height | 8 1/2" |
Overall Width | 32" |
Overall Depth | 25" |
Overall Height | 21" |
Weight | 191 lbs |
Specifications
All key specifications for the Broilmaster BSB324NLN are outlined below — covering everything from burner performance and materials to lighting and accessory compatibility.
Specification | Details |
---|---|
Construction | 304 Stainless Steel |

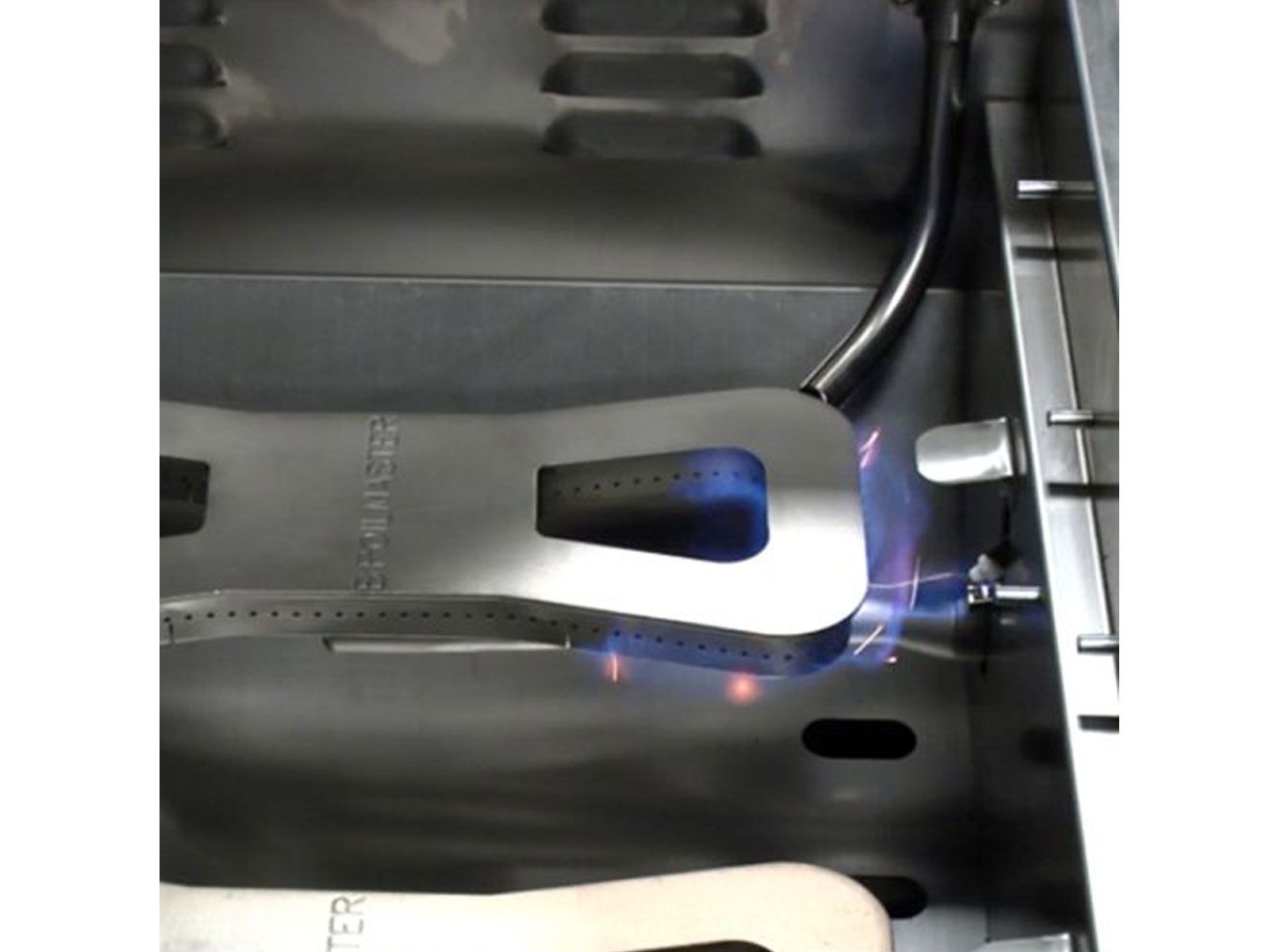

Main Burners | 4 × Stainless Steel Tube Burners |
Infrared Back Burner | Yes — Rear Infrared Rotisserie Burner |
Rotisserie Kit | Optional Accessory |
Total Cooking Area | 608 sq in. (443 + 165) |

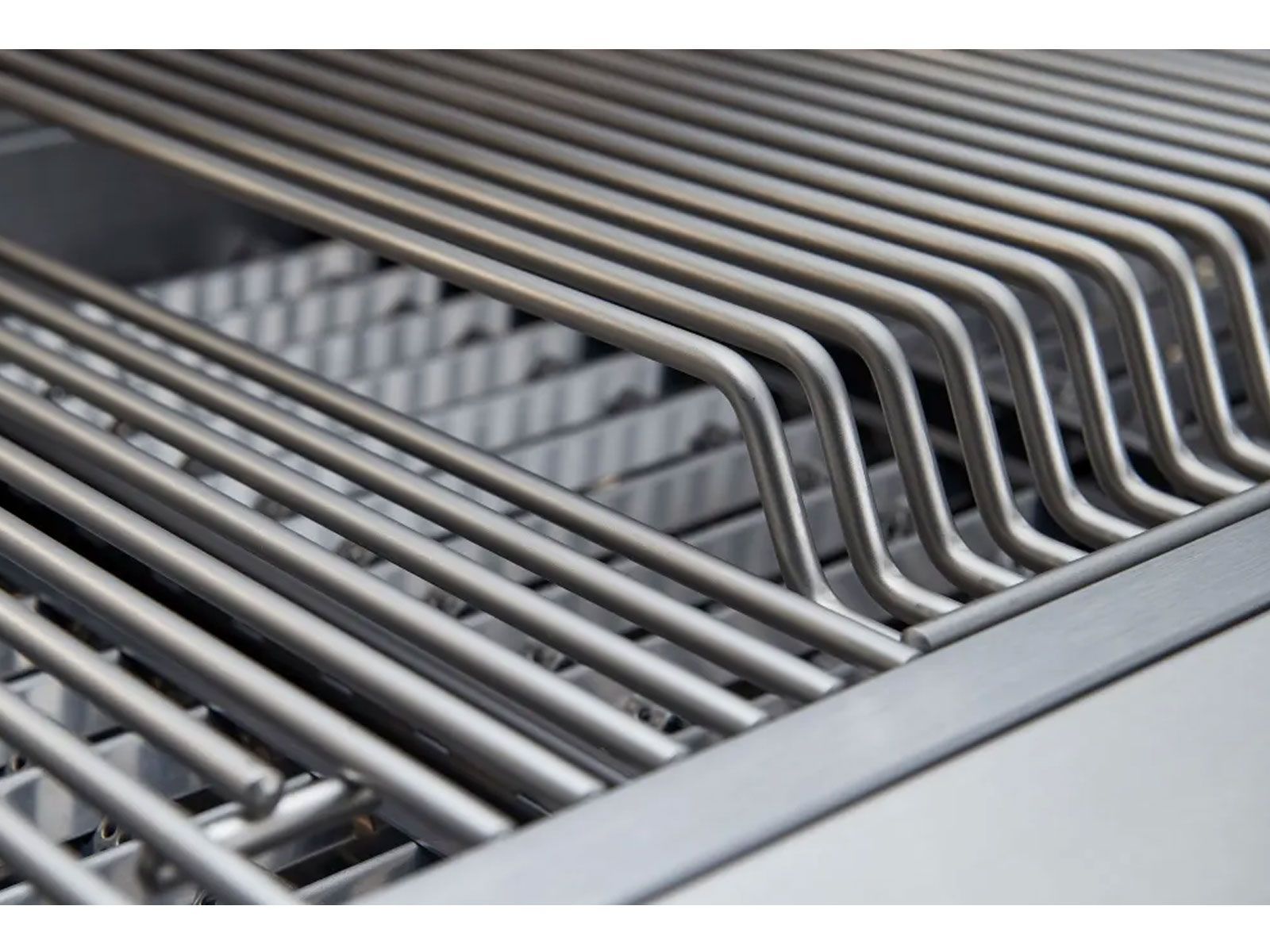

Cooking Grates | Stainless Steel |

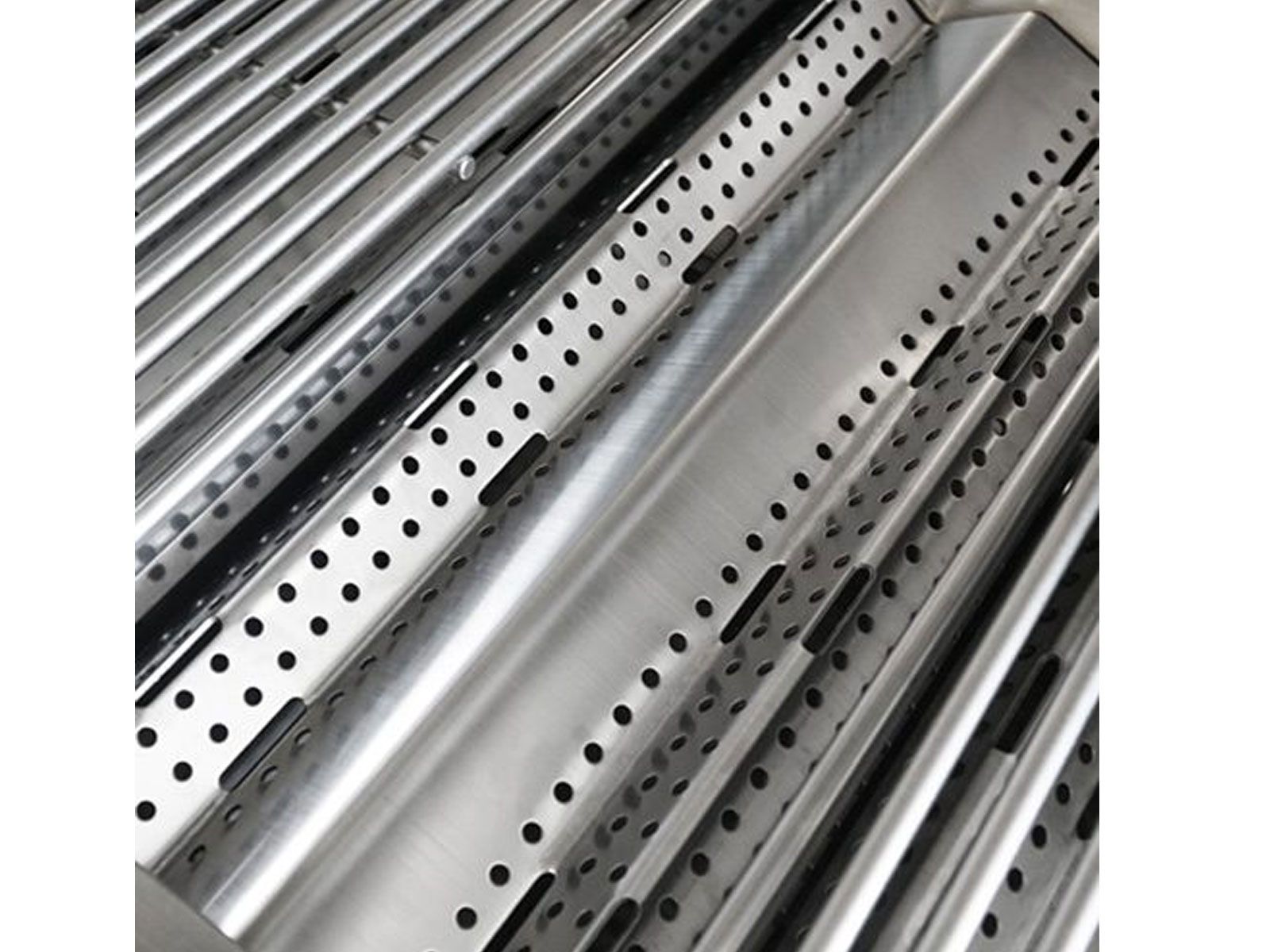

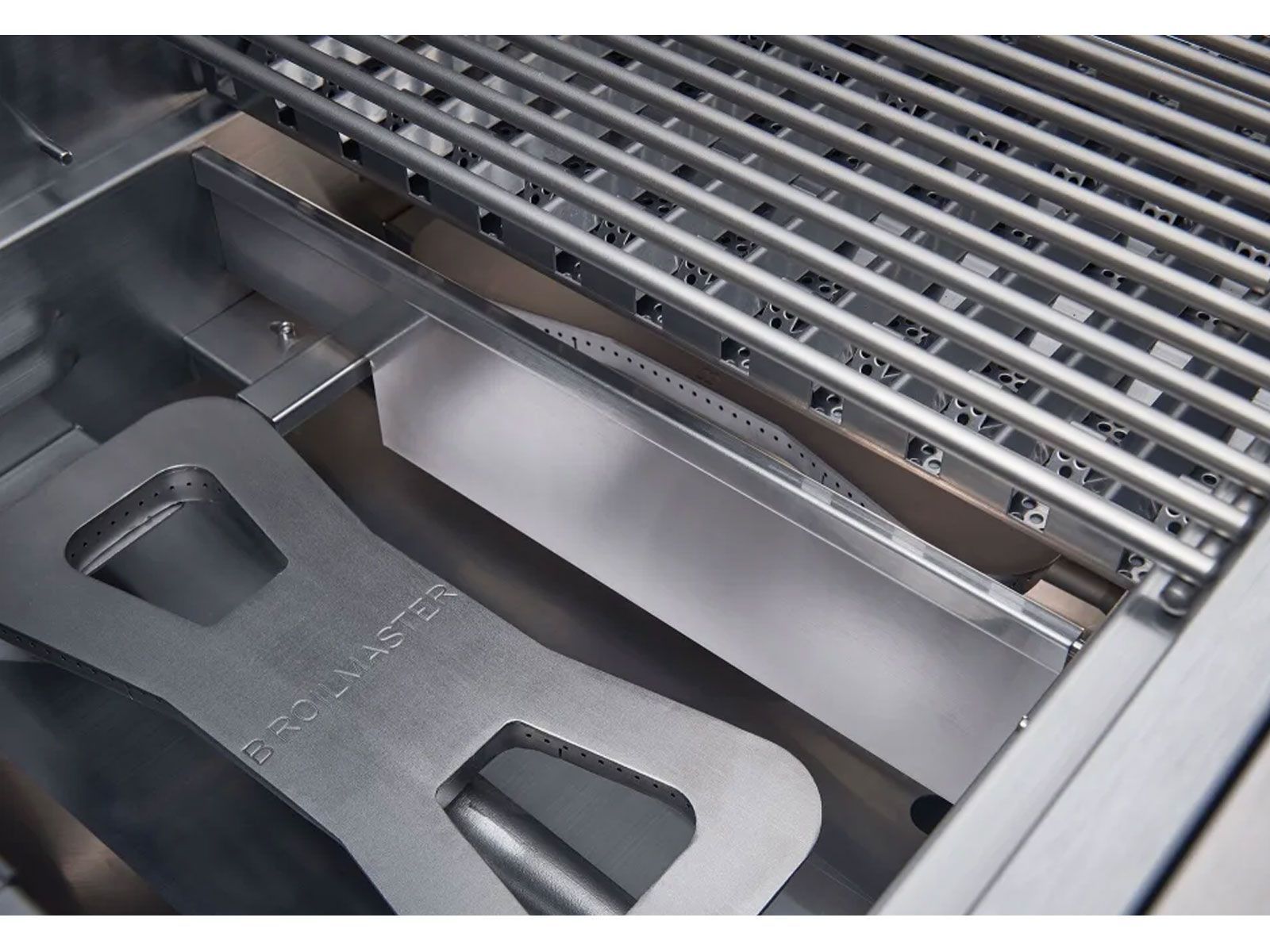

Flame Tamers | Stainless Steel |
Ignition | Push-Button Electronic Ignition |
Interior Lighting | Yes |
Exterior Lighting | Illuminated Control Knobs |
Thermometer | Built-In Analog Temperature Gauge |
Hood | Double-Lined Stainless Steel |
Heat Zone Separators | Not Included |
Smoker Box | Not Included |
WiFi / Bluetooth | Not Supported |
Marine / Commercial Grade | No |
Made in USA | No |
Hose & Regulator | Included (NG Configuration) |
Extra Features | Removable Drip Tray, LED Knob Illumination |
