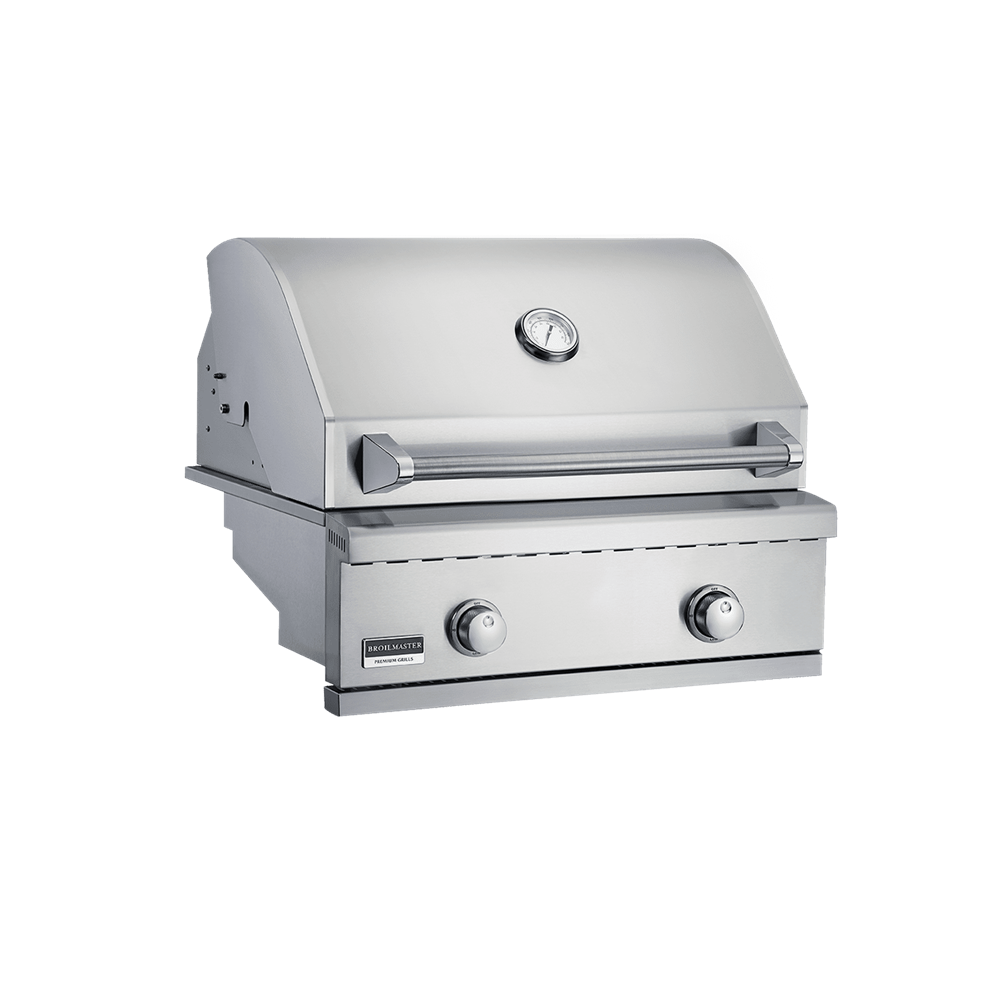

Designed for serious backyard chefs, the Broilmaster BSB253NLP delivers powerful grilling performance with precision control and sleek stainless steel construction. Built with reliability in mind, this 25-inch grill head integrates seamlessly into custom outdoor kitchens and provides versatile features including a rear infrared burner, LED knob lighting, and commercial-grade components.
Specification | Details |
---|---|
Manufacturer | Broilmaster |
Model | BSB253NLP |
Item Type | Gas Grill |
Configuration | Built-In |
Fuel Type | Propane (LP) |
Number of Main Burners | 3 Burners |
Main Grilling Area | 473 sq in. |
Secondary Grilling Area | 156 sq in. |
Total Grilling Area | 629 sq in. |
Grilling Surface BTUs | 39,000 BTUs |
Cooking Grid Dimensions | 25" W × 19" D |
Dimensions
Confirm the measurements below to ensure the Broilmaster BSB253NLP fits seamlessly into your outdoor kitchen setup.
Specification | Details |
---|---|
Cutout Width | 25 ½″ |
Cutout Depth | 21 ¼″ |
Cutout Height | 10 ½″ |
Overall Width | 23 ½″ |
Overall Depth | 21″ |
Overall Height | 11 ¾″ |
Weight | 156 lbs |
Specifications
Every detail of the Broilmaster BSB253NLP is outlined below — including burner setup, construction materials, lighting, and optional add-ons.
Specification | Details |
---|---|
Construction | 304 Stainless Steel |

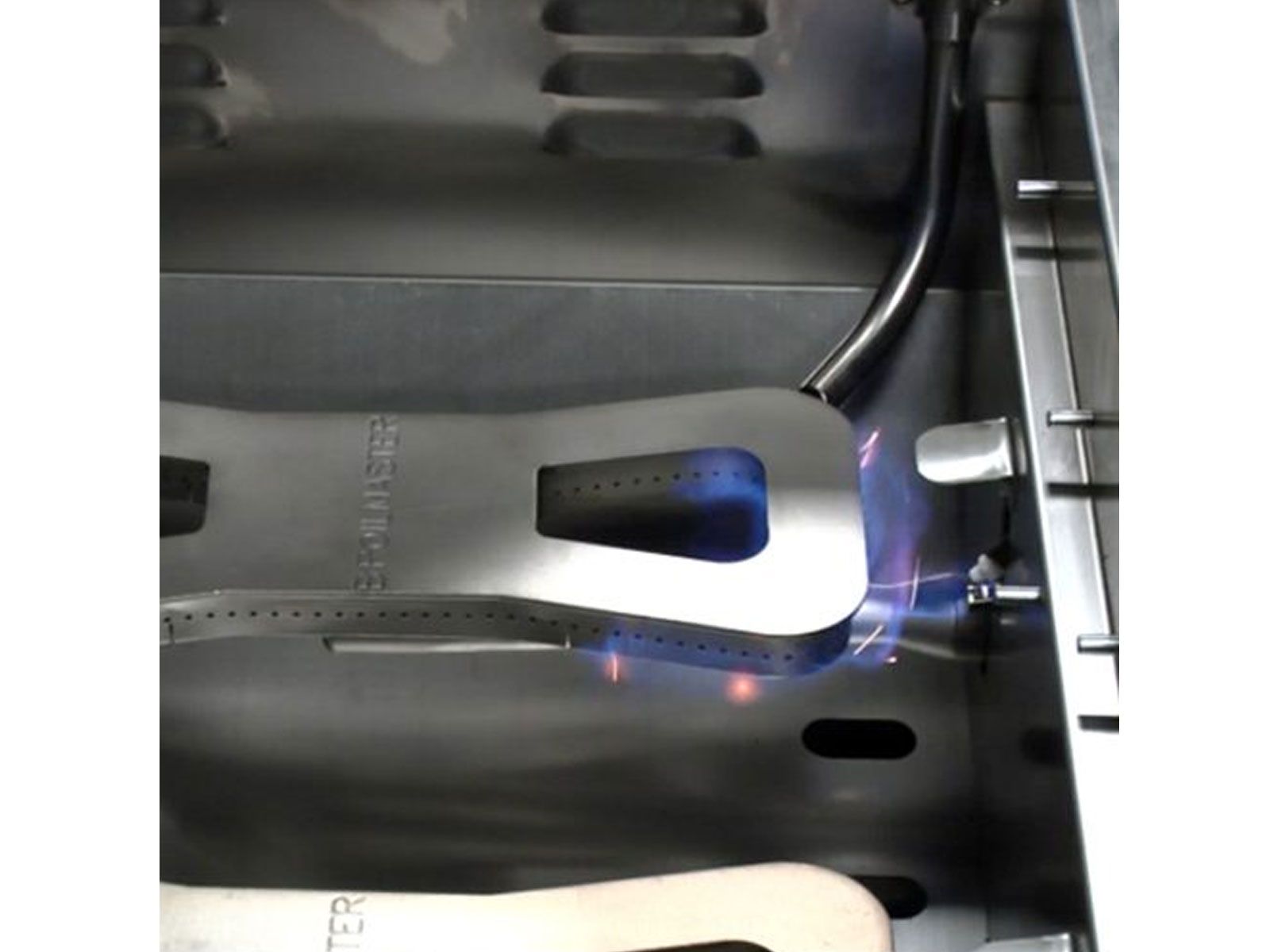

Main Burners | 3 × 12,000 BTU Stainless Steel |
Infrared Back Burner | 12,000 BTU |
Rotisserie Kit | Optional Accessory |
Total Cooking Area | 552 sq in. (420 + 132) |

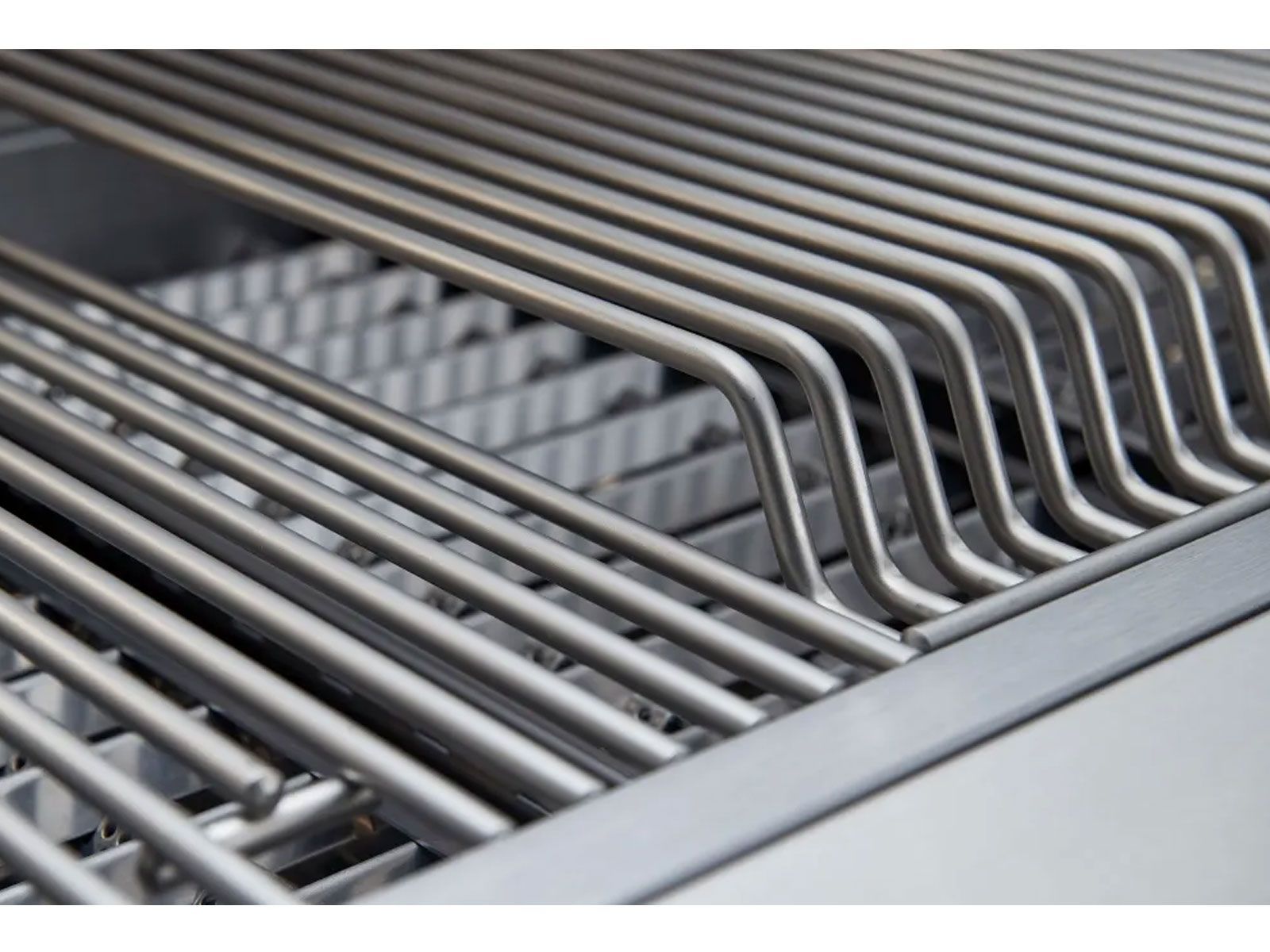

Cooking Grates | Stainless Steel |

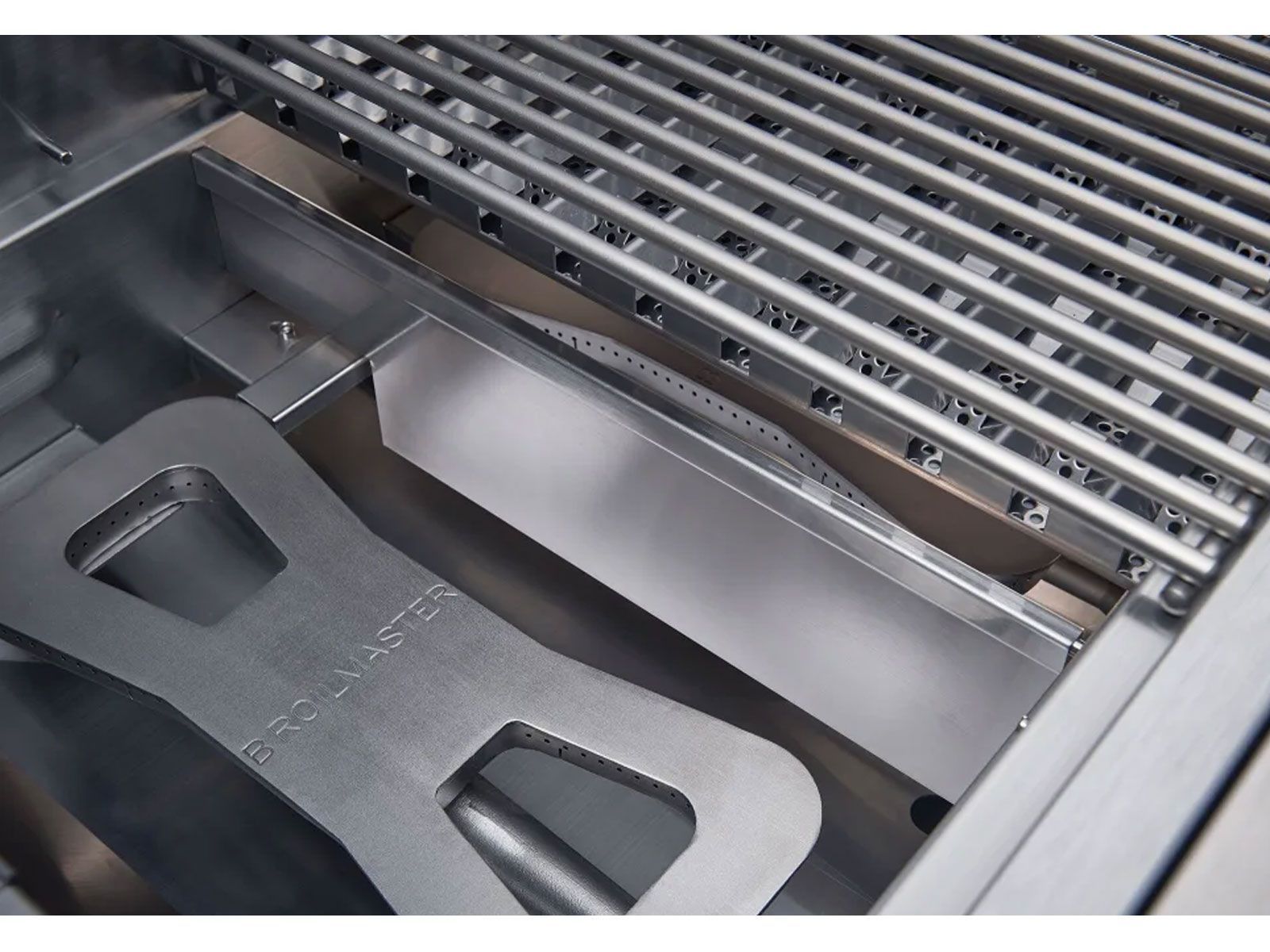

Flame Tamers | Stainless Steel |
Ignition | Flame-Thrower Ignition |
Interior Lighting | Halogen Grill Lights |
Exterior Lighting | LED Control Knob Lights |
Thermometer | Analog Temperature Gauge |
Hood | Double-Lined Stainless Steel |

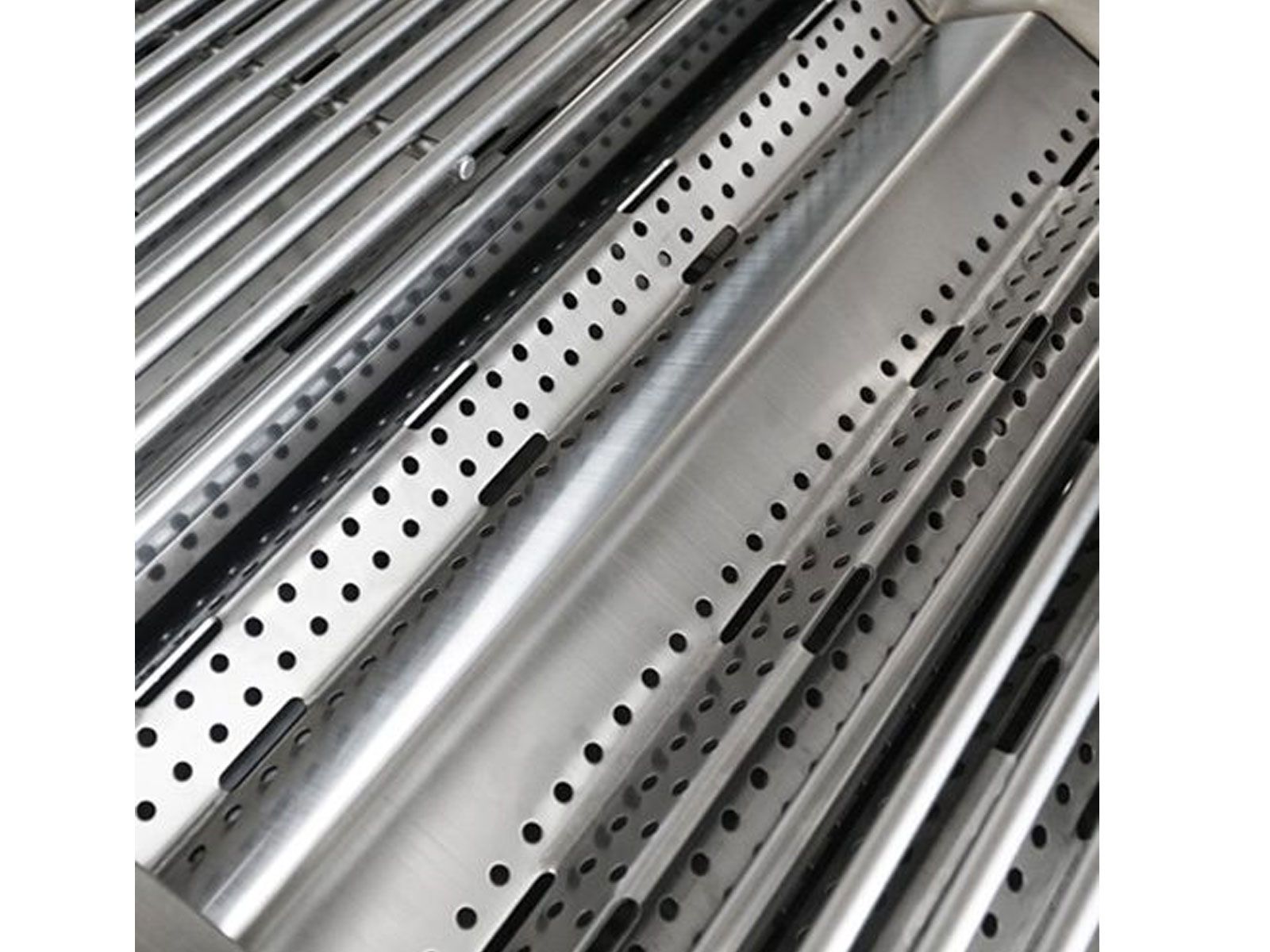

Heat Zone Separators | Installed |
Smoker Box | Not Included |
WiFi / Bluetooth | Not Supported |
Marine / Commercial Grade | No |
Made in USA | No |
Hose & Regulator | Not Included |
Extra Features | Removable Drip Tray, LED Knobs |
