Manufacturer Information

Highlights

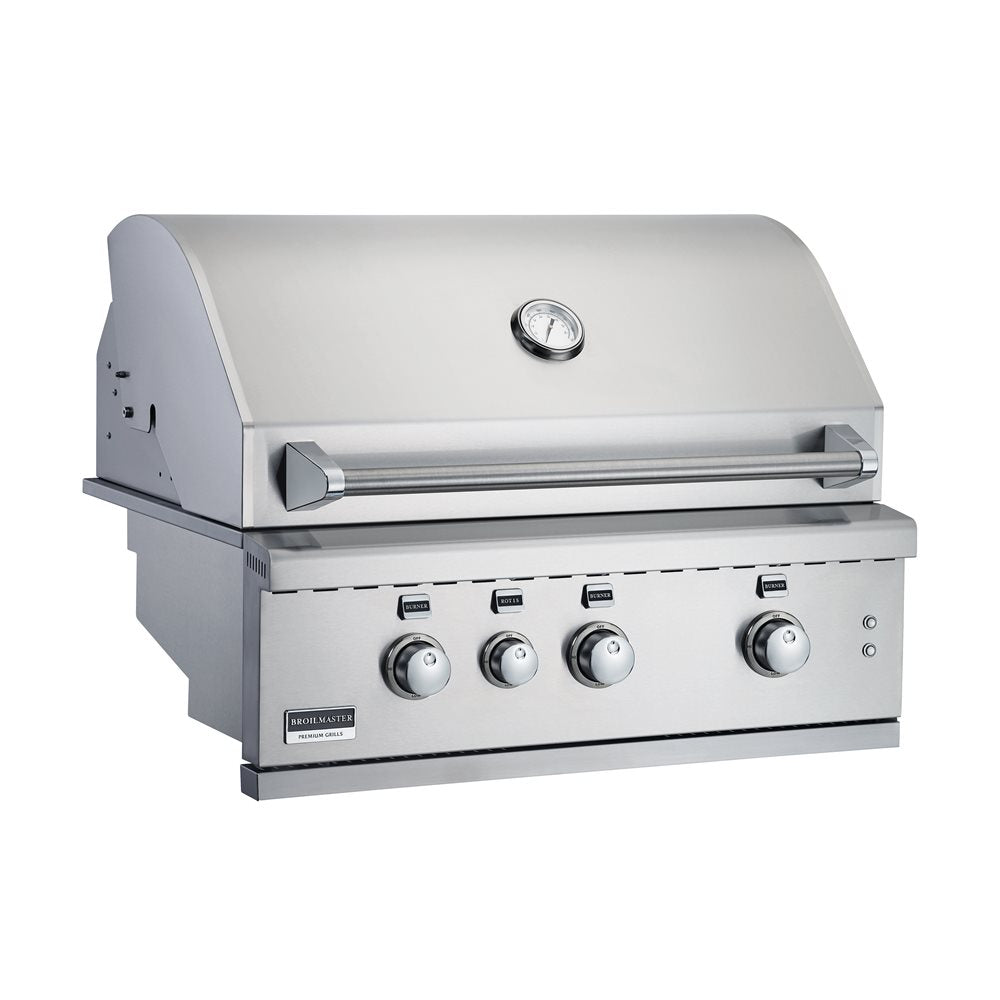

Built for serious outdoor chefs, the Broilmaster BSB324N delivers premium performance with a durable 304 stainless steel build, four high-efficiency burners, and an infrared rear rotisserie burner. Whether you're searing steaks or slow-roasting meats, this built-in propane grill brings precise control and lasting quality to your outdoor kitchen.
Specification | Details |
---|---|
Brand | Broilmaster |
Model | BSB324N |
Item Type | Gas Grill |
Configuration | Built‑In |
Fuel Type | Natural Gas (NG) |
Number of Main Burners | 4 Burners |
Main Grilling Area | 576 sq in. |
Secondary Grilling Area | 192 sq in. |
Total Grilling Area | 768 sq in. |
Grilling Surface BTUs | 60,000 BTUs |
Cooking Grid Dimensions | 34" W × 18" D |
Dimensions
These are the precise dimensions required to safely install the Broilmaster BSB324N Built-In Natural Gas Grill.
Specification | Details |
---|---|
Cutout Width | 34" |
Cutout Depth | 19 3/4" |
Cutout Height | 9 1/2" |
Overall Width | 35.25" |
Overall Depth | 22" |
Overall Height | 25.5" |
Weight | 191 lbs |
Specifications
Review all essential specifications for the Broilmaster BSB324N — including burner output, build materials, ignition system, and lighting.
Specification | Details |
---|---|
Construction | 304 Stainless Steel |

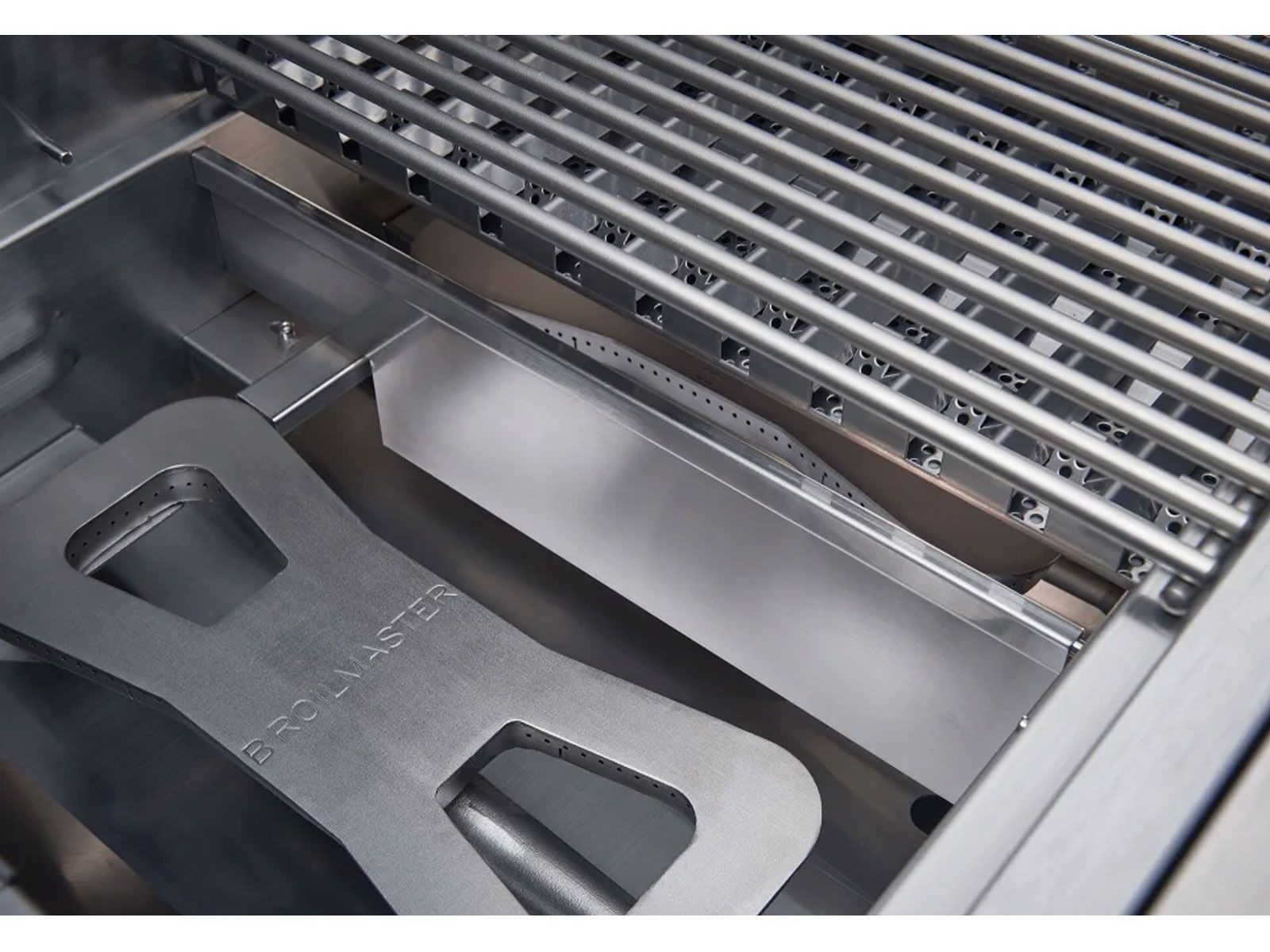

Main Burners | 3 × 12,000 BTU Stainless Steel |

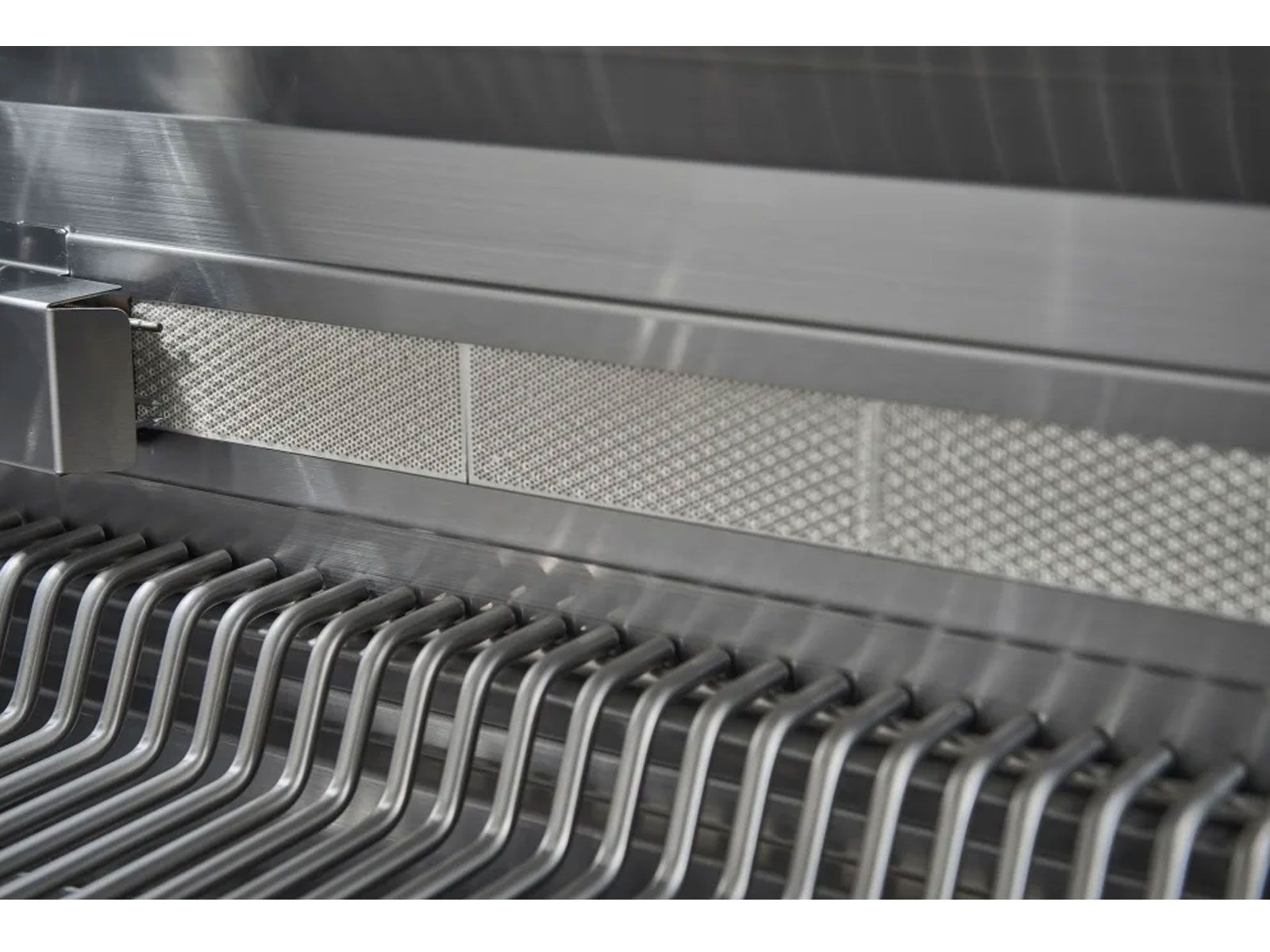

Infrared Back Burner | 15,000 BTU |
Rotisserie Kit | Optional Accessory |
Total Cooking Area | 612 sq in. (442 + 170) |

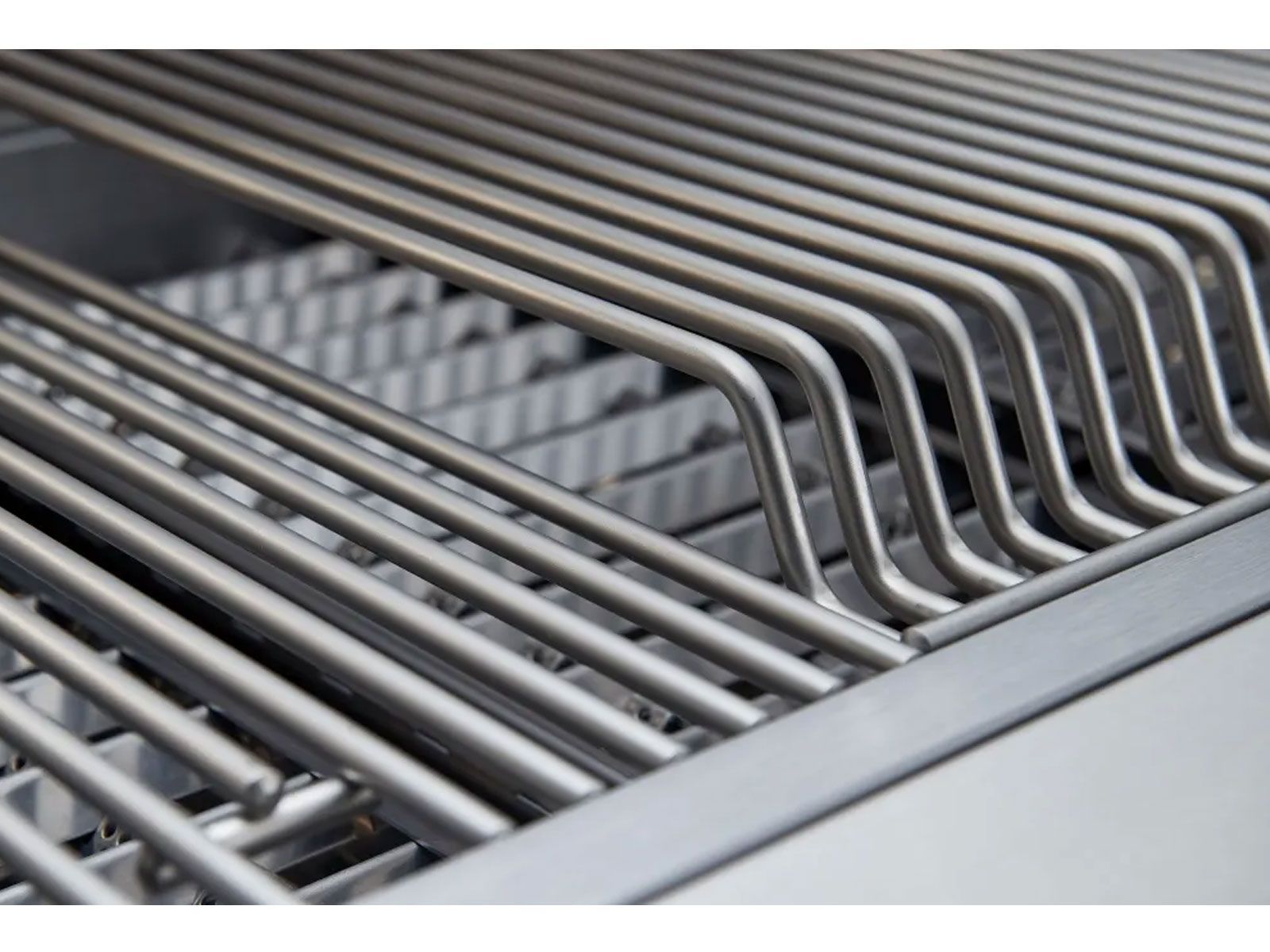

Cooking Grates | Stainless Steel |
Flame Tamers | Stainless Steel |
Ignition | Flame Thrower Ignition |

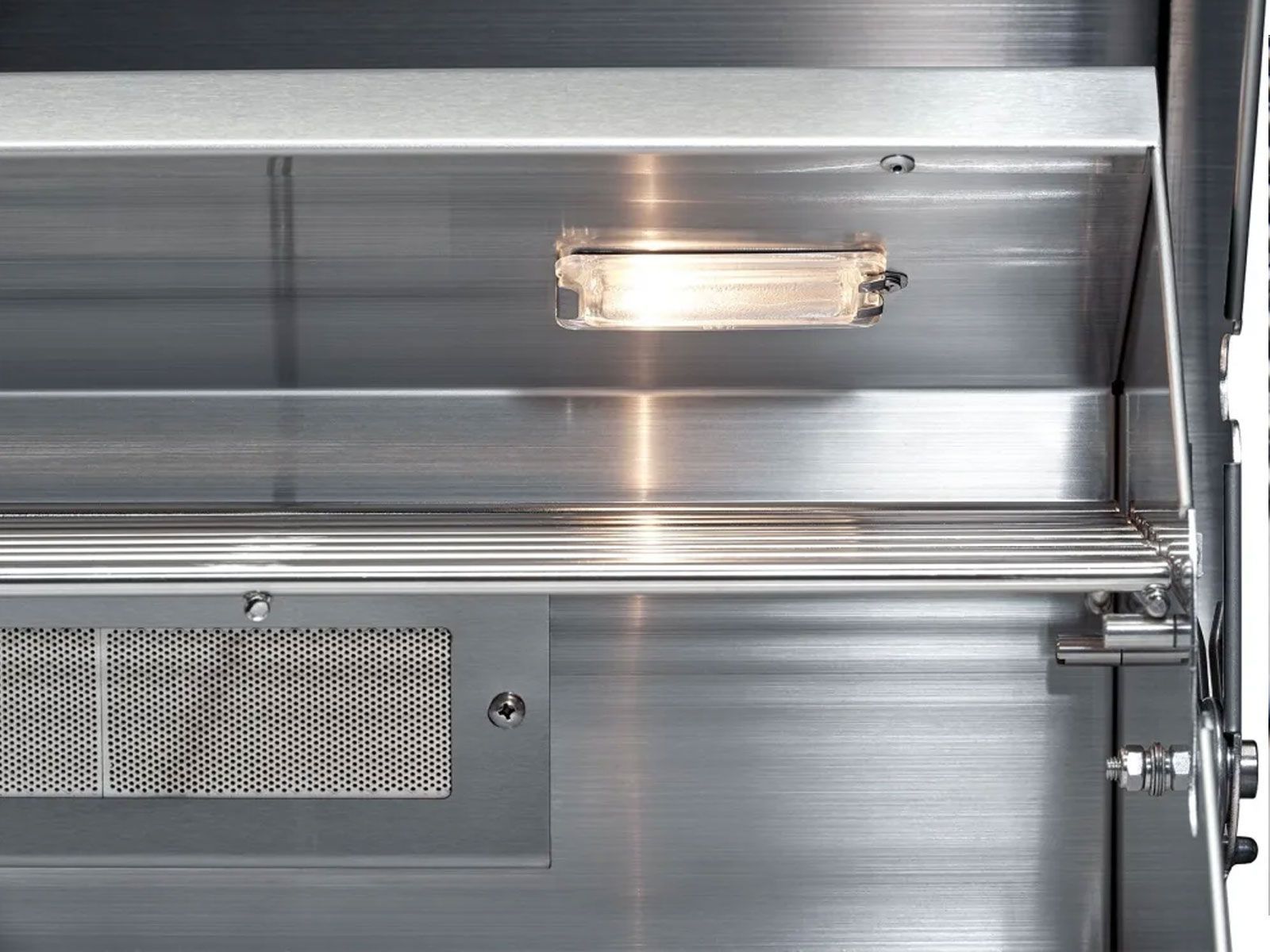

Interior Lighting | Halogen Lights |

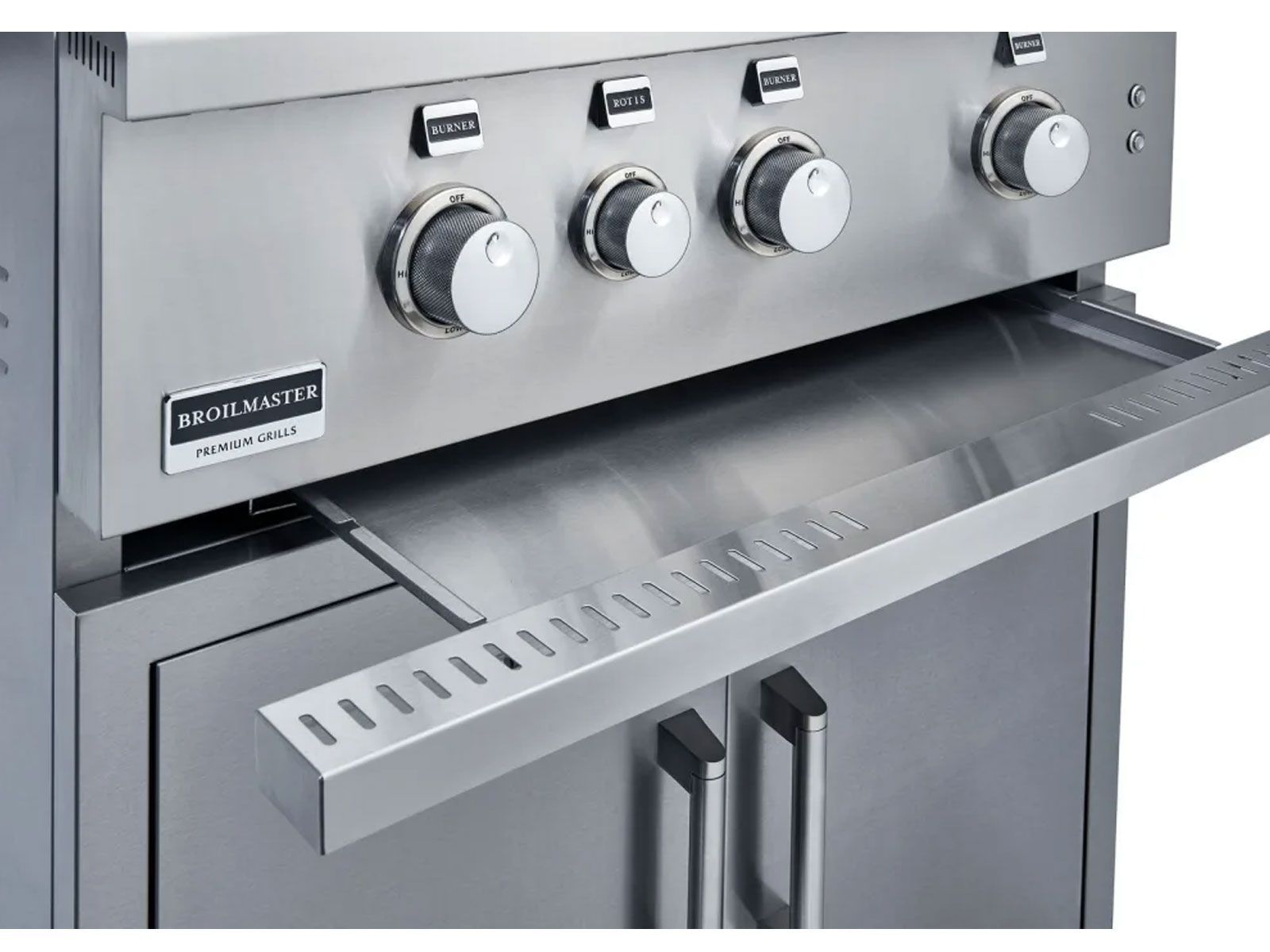

Exterior Lighting | LED Control Knobs |
Thermometer | Built-In Analog Gauge |
Hood | Double-Lined, Spring-Assisted |
Heat Zone Separators | Not Included |
Smoker Box | Not Included |
WiFi / Bluetooth | Not Supported |
Marine / Commercial Grade | No |
Made in USA | Yes |
Hose & Regulator | Not Included |
Extra Features | Removable Drip Tray, Rear Access Grease Management |
