Manufacturer Information

Highlights

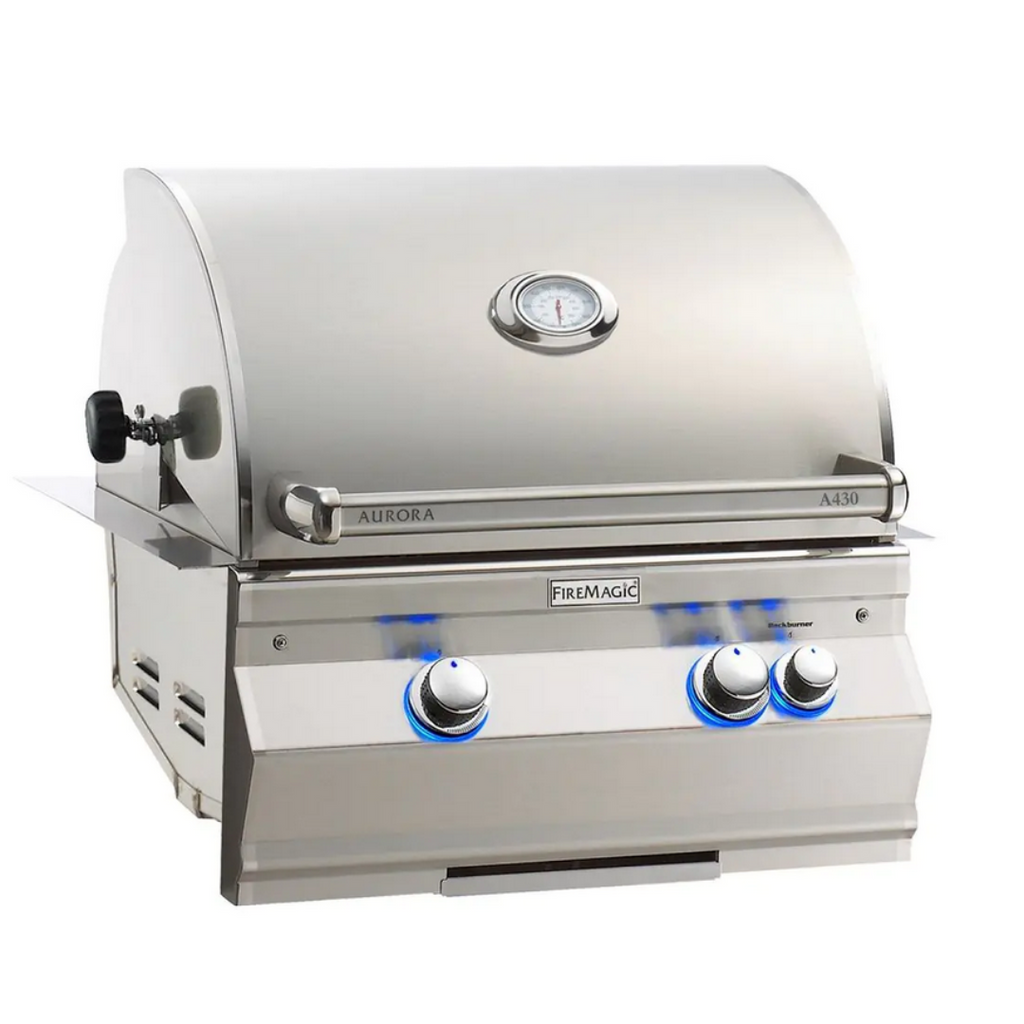

The Fire Magic A430I‑7LAN is a premium 24″ built‑in natural gas grill featuring dual cast stainless “E” burners with a total output of 50,000 BTU, integrated infrared sear burner, angled analog thermometer, and interior halogen lighting—all wrapped in durable 304 stainless steel for lasting performance.
Specification | Details |
---|---|
Manufacturer | Fire Magic |
Collection Name | Aurora |
Model | A430I‑7LAN |
Item Type | Built‑In Grill |
Configuration | Built‑In |
Fuel Type | Natural Gas |
Main Burners | 2 Cast Stainless Steel “E” Burners |
Infrared Sear Burner | Integrated (Left‑Side) |
Total Grilling Area | 624 sq in. (432 primary + 192 warming) |
Grilling BTUs | 50,000 BTU |
Cooking Grates | Diamond Sear 304 Stainless Steel |
Rotisserie Kit | Not Included |
Interior Lighting | 12 V Halogen Lights |
Control Illumination | Back‑lit Comfort‑Touch Knobs |
Build Quality | 304 Stainless Steel Construction |
Made In | USA |
Dimensions
Verified dimensions for the Fire Magic A430I-7LAN are listed below, including the overall footprint, required cutout specifications, and grill weight. All measurements reflect manufacturer-confirmed specs.
Dimension | Details |
---|---|
Overall Width | 30″ |
Overall Depth | 26.75″ |
Overall Height | 25.125″ |
Cutout Width | 25.5″ |
Cutout Depth | 19.5″ |
Cutout Height | 12″ |
Weight | 170 lbs |
Specifications
Confirmed specifications for the A430I-7LAN are listed below. All details reflect verified and accurate product data directly from the manufacturer and trusted distributors.
Specification | Details |
---|---|
Brand | Fire Magic |
Model | A430I-7LAN |
Fuel Type | Natural Gas |
Main Burners | 3 Cast Stainless Steel Burners |
Total BTUs | 60,000 |
Primary Cooking Area | 432 Sq. In. |
Total Cooking Area | 608 Sq. In. |
Cooking Grates | Heavy-Duty Stainless Steel |
Warming Rack | Removable |
Ignition System | Hot Surface Ignition |
Heat Distribution | Flavor Grids |
Thermometer | Analog |
Control Knobs | Comfort Touch Polished Knobs |
Interior Lighting | No |
Control Illumination | No |
Build Quality | 304 Stainless Steel |
Marine-Grade | No |
Mobility | Built-In |
Removable Drip Tray | Yes |
Weather-Resistant | Yes |
Rustproof | Yes |
Made In | USA |
