| Specification | 24" Model | 30" Model | 36" Model |
|---|---|---|---|
| Class | Premium | Premium | Premium |
| Fuel Type | Natural Gas | Natural Gas | Natural Gas |
| Collection | L Series | L Series | L Series |
| Configuration | Built-In | Built-In | Built-In |
| Exterior Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Primary Color | Stainless Steel | Stainless Steel | Stainless Steel |
| Number of Main Burners | 2 Burners | 3 Burners | 3 Burners |
| Grilling Surface BTUs | 32,000 | 45,000 | 50,000 |
| Main Burner Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Flame Tamer Material | Stainless Steel | Stainless Steel | Stainless Steel |
| Cooking Grate Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Cooking Grid Dimensions | 24" x 18" | 30" x 18" | 36" x 18" |
| Main Grilling Area | 432 Sq. Inches | 540 Sq. Inches | 648 Sq. Inches |
| Secondary Grilling Area | 116 Sq. Inches | 151 Sq. Inches | 181 Sq. Inches |
| Total Grilling Area | 548 Sq. Inches | 691 Sq. Inches | 829 Sq. Inches |
| Rotisserie Burner BTUs | 10,000 BTU | 12,000 BTU | 12,000 BTU |
| Rotisserie Kit | Optional | Optional | Optional |
| Ignition Type | Electronic Push Button | Electronic Push Button | Electronic Push Button |
| Thermometer | Analog | Analog | Analog |
| Side Burner | No | No | No |
| Side Shelves | No | No | No |
| Grill Lights | Interior Halogen | Interior Halogen | Interior Halogen |
| Spring Assisted Hood | No | No | No |
| Made In | USA | USA | USA |
| Dimensions (Width x Height x Depth) | 28" x 20.07" x 26.25" | 34" x 20.07" x 26.25" | 40.25" x 20.07" x 26.25" |
| Weight | 105-115 lbs | 130-140 lbs | 140-150 lbs |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details

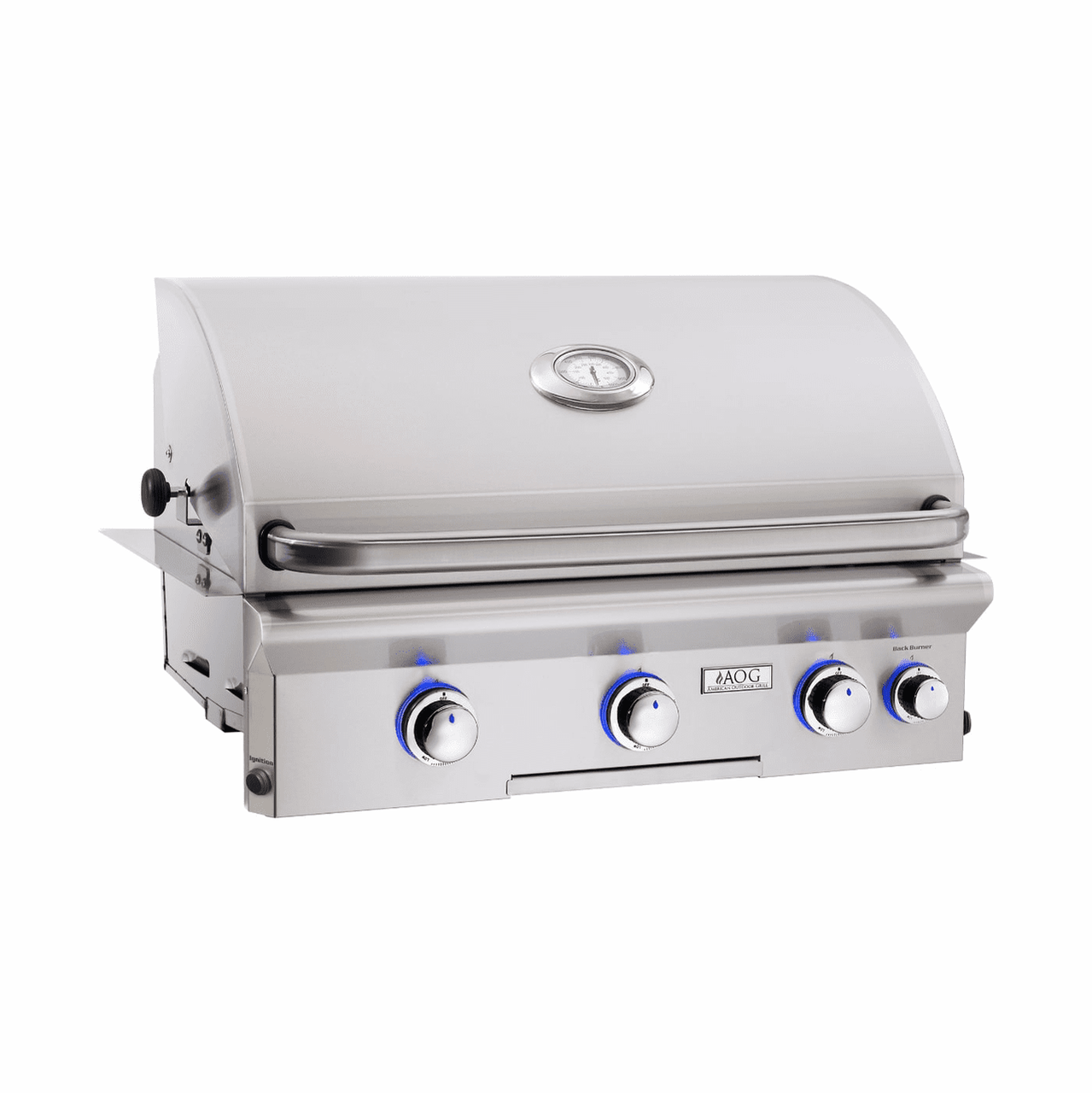

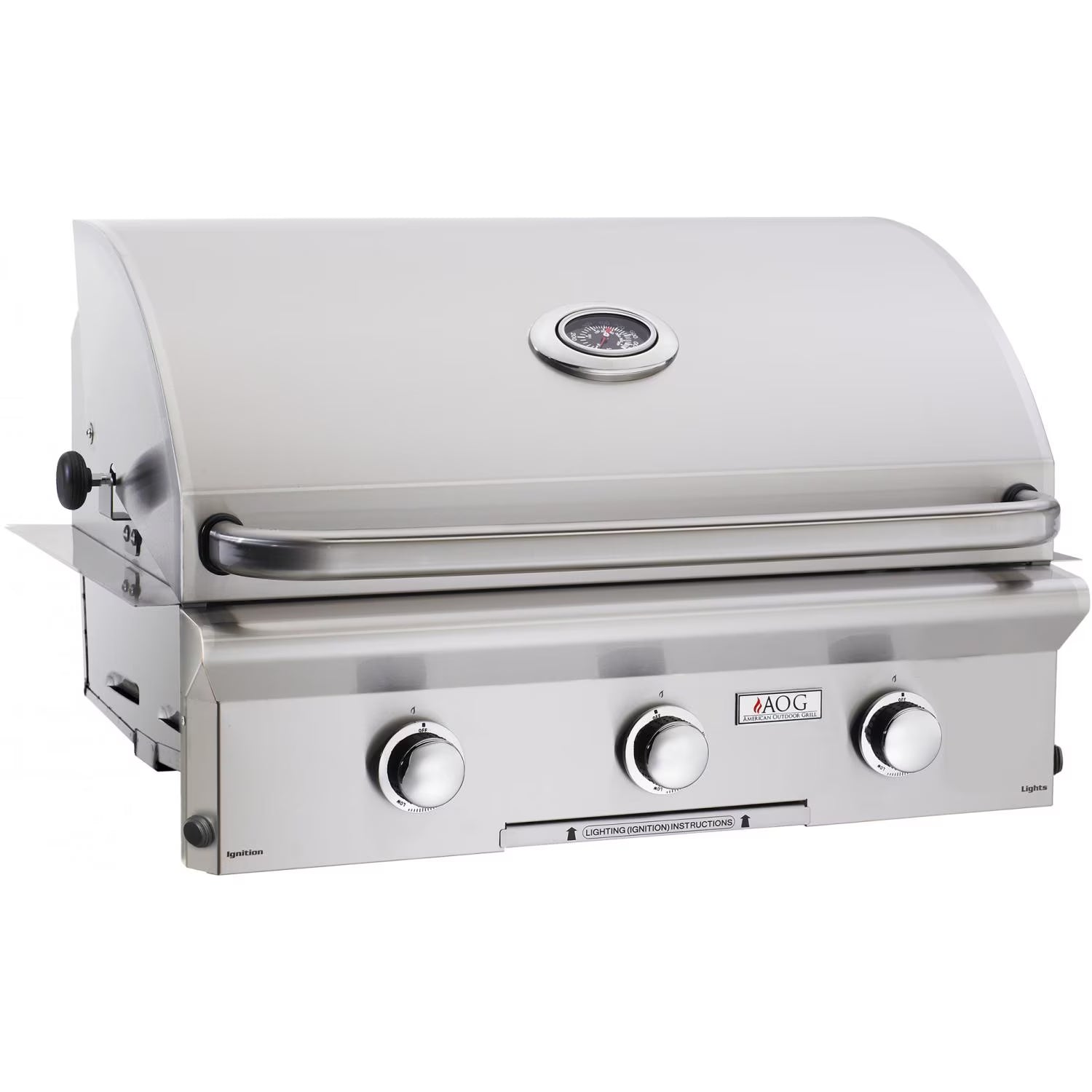

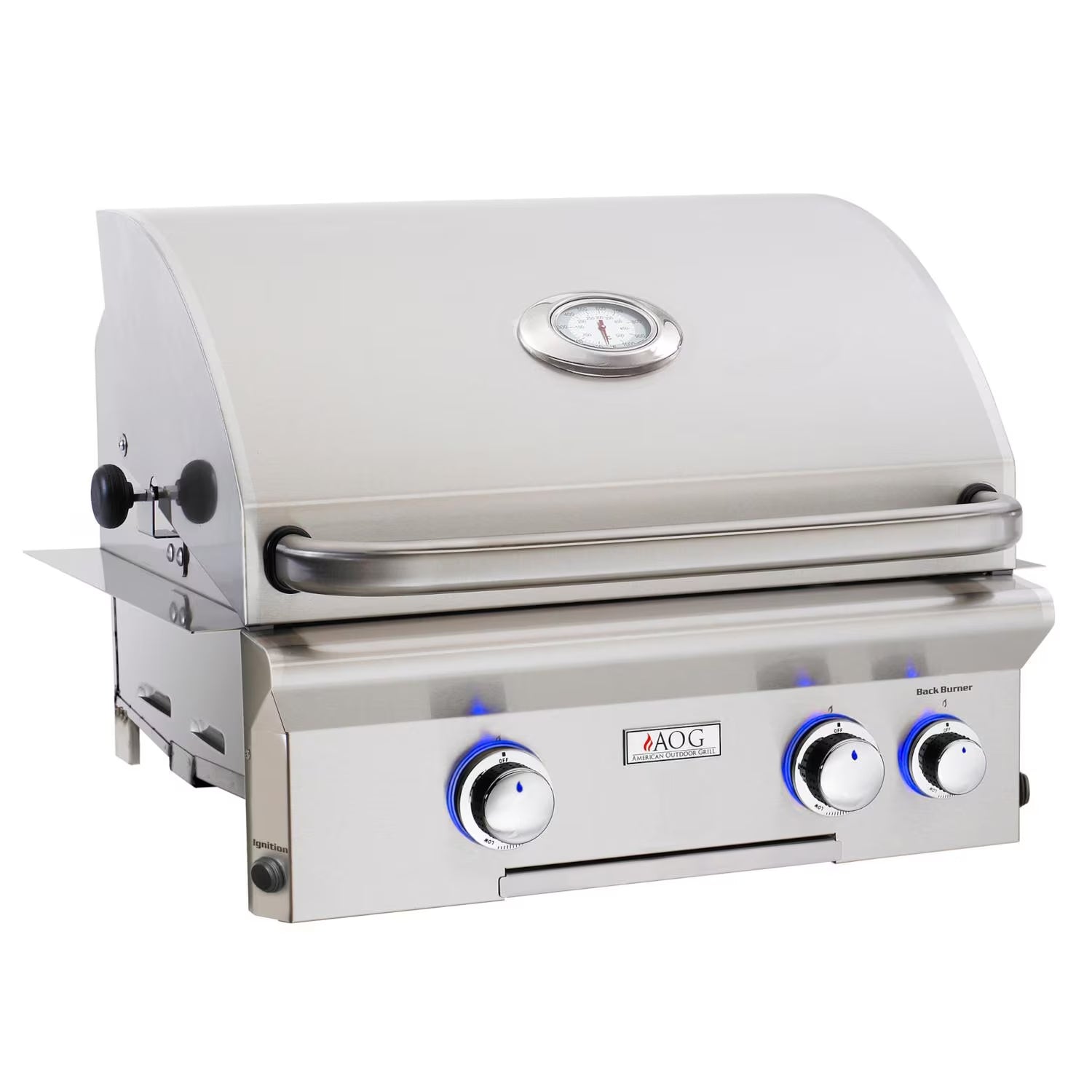

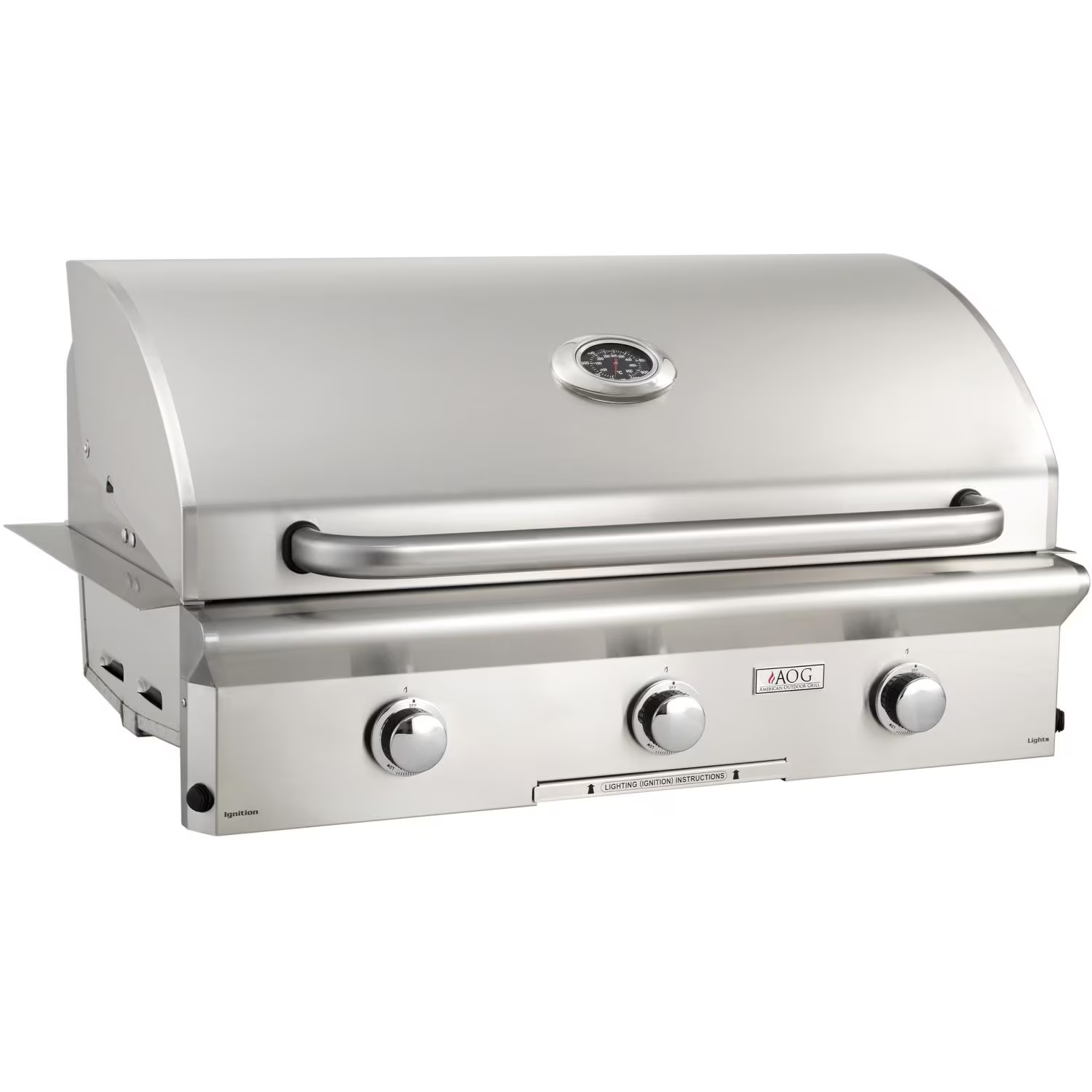

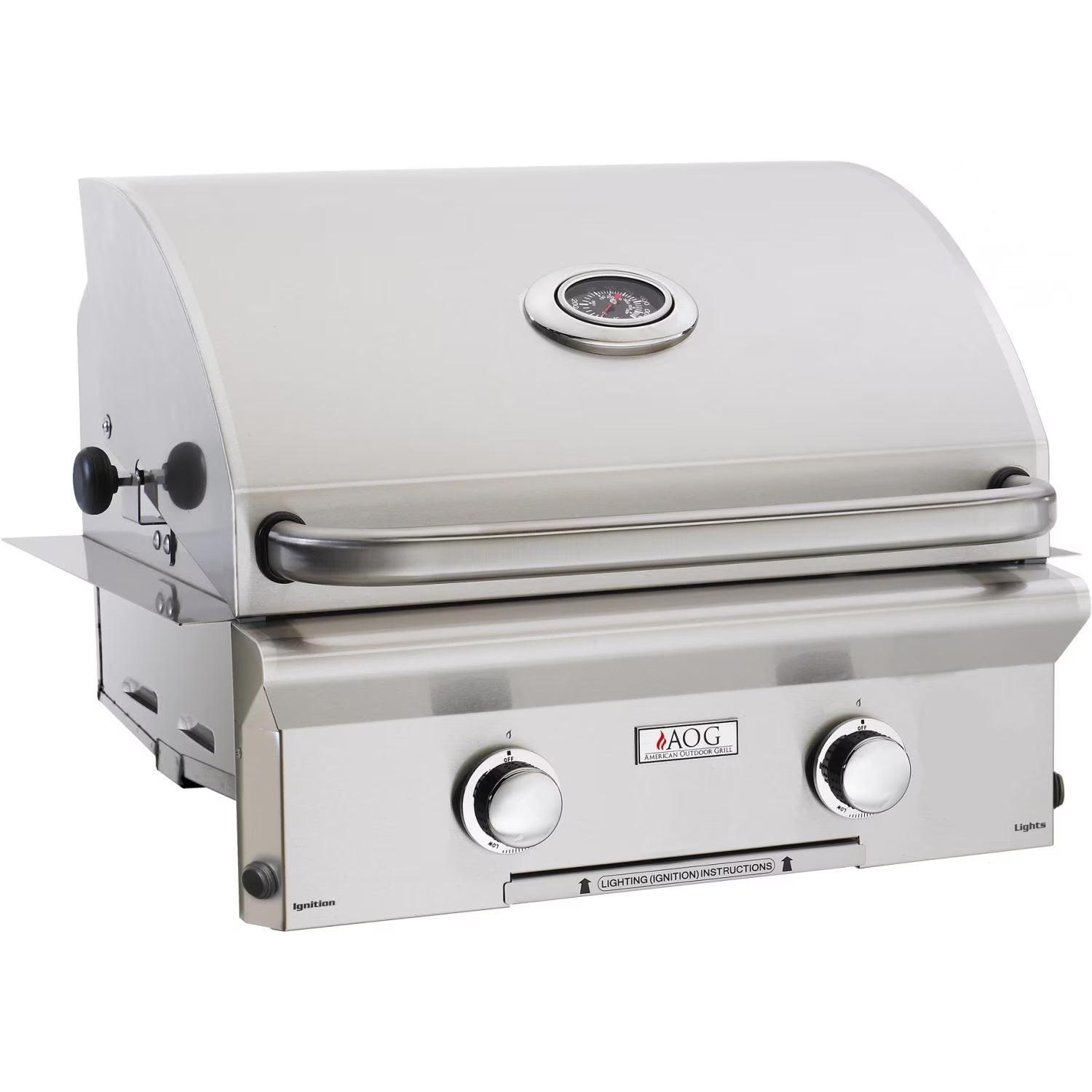

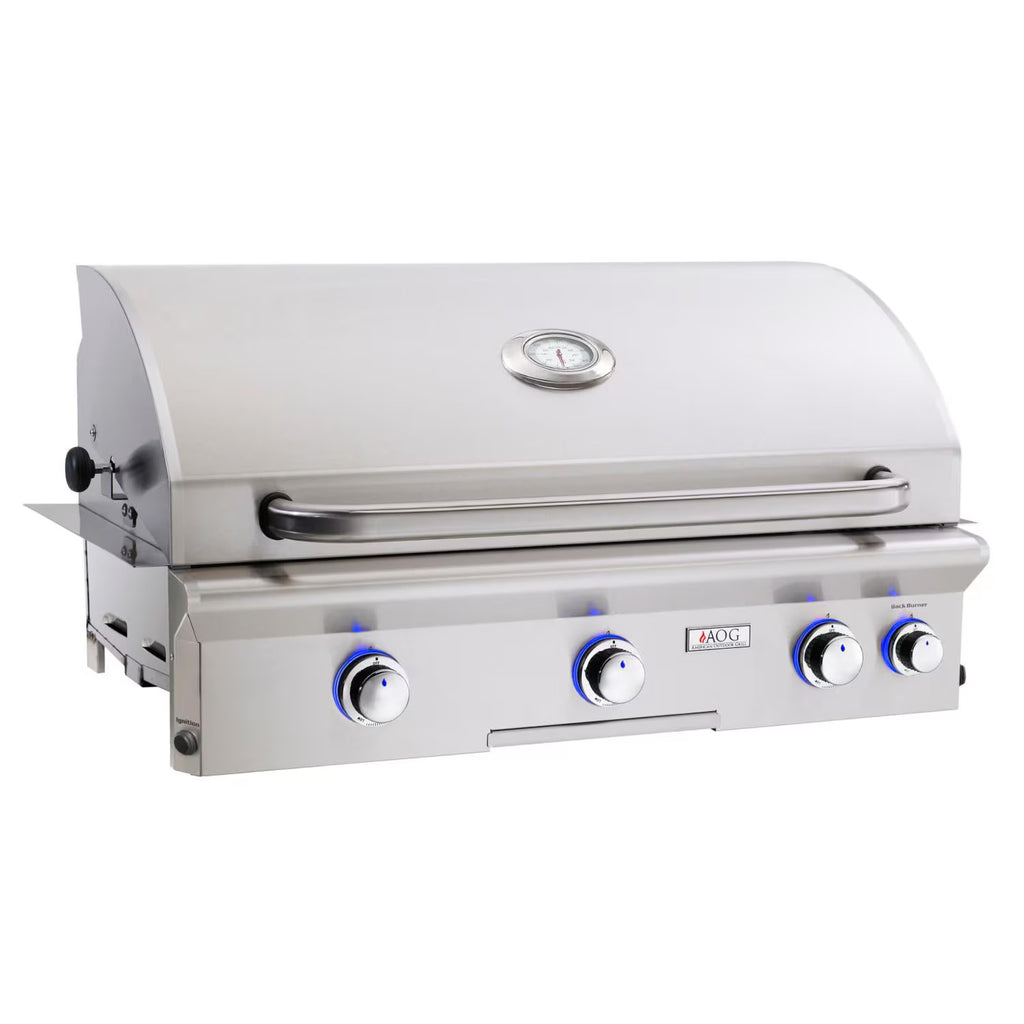

Elevate your outdoor cooking with the American Outdoor Grill (AOG) L-Series Built-In Natural Gas Grills, available in 24", 30", and 36" models. Crafted from durable 304 stainless steel, these premium grills combine cutting-edge performance with outstanding reliability, making them the ideal addition to any outdoor kitchen. Engineered for long-lasting use, these grills deliver unbeatable grilling results, whether you're cooking steaks, veggies, rotisserie chicken, or more.
Each L-Series model features advanced U-shaped burners made from 304 stainless steel, ensuring even heat distribution. The 24" model delivers 32,000 BTUs, while the 30" and 36" models provide between 45,000 to 50,000 BTUs for superior cooking power and precision. The 24", 30", and 36" models come with an optional rotisserie kit, including a 10,000 BTU infrared back burner for perfect slow-roasting. The 36" model offers enhanced functionality with a 12,000 BTU infrared back burner.
With up to 648 sq. inches of cooking space in the 36" model, 540 sq. inches in the 30" model, and 432 sq. inches in the 24" model, there’s plenty of room to cook for large gatherings or intimate meals. Each grill features stainless steel vaporizer panels, or flame tamers, that evenly distribute heat, reduce flare-ups, and protect burners from grease.
For ultimate control and convenience, each model includes solid brass valves and back-lit control knobs for precise temperature regulation day or night. The electronic push-button ignition and interior halogen lights make starting and grilling in low-light conditions a breeze. The funnel-shaped grease management system with a slide-out drip tray ensures easy cleanup after every use.
Proudly made in the USA, the AOG L-Series Built-In Grills provide the perfect blend of style, durability, and innovation. Whether you're grilling veggies, steaks, or roasting a whole chicken, these grills deliver exceptional performance to enhance your outdoor cooking experience. Ideal for both entertaining and family meals, the AOG L-Series is a top-tier addition to your outdoor kitchen.
304 Stainless Steel Construction: Built for durability and long-lasting performance, ensuring resistance to the elements and reliable grilling in any outdoor environment.
U-Shaped Burners with High BTUs: Even heat distribution with powerful stainless steel burners—32,000 BTUs for the 24", 45,000 to 50,000 BTUs for the 30" and 36" models—allow for versatile cooking from steaks to vegetables.
Rotisserie Kit with Infrared Back Burner: Available for the 24" and 30" models with a 10,000 BTU burner, and the 36" model with a 12,000 BTU infrared back burner, perfect for slow-roasting meats to perfection.
Diamond Sear Cooking Grids: Provides restaurant-quality grill marks while locking in natural juices and flavor, giving your food an enhanced taste.

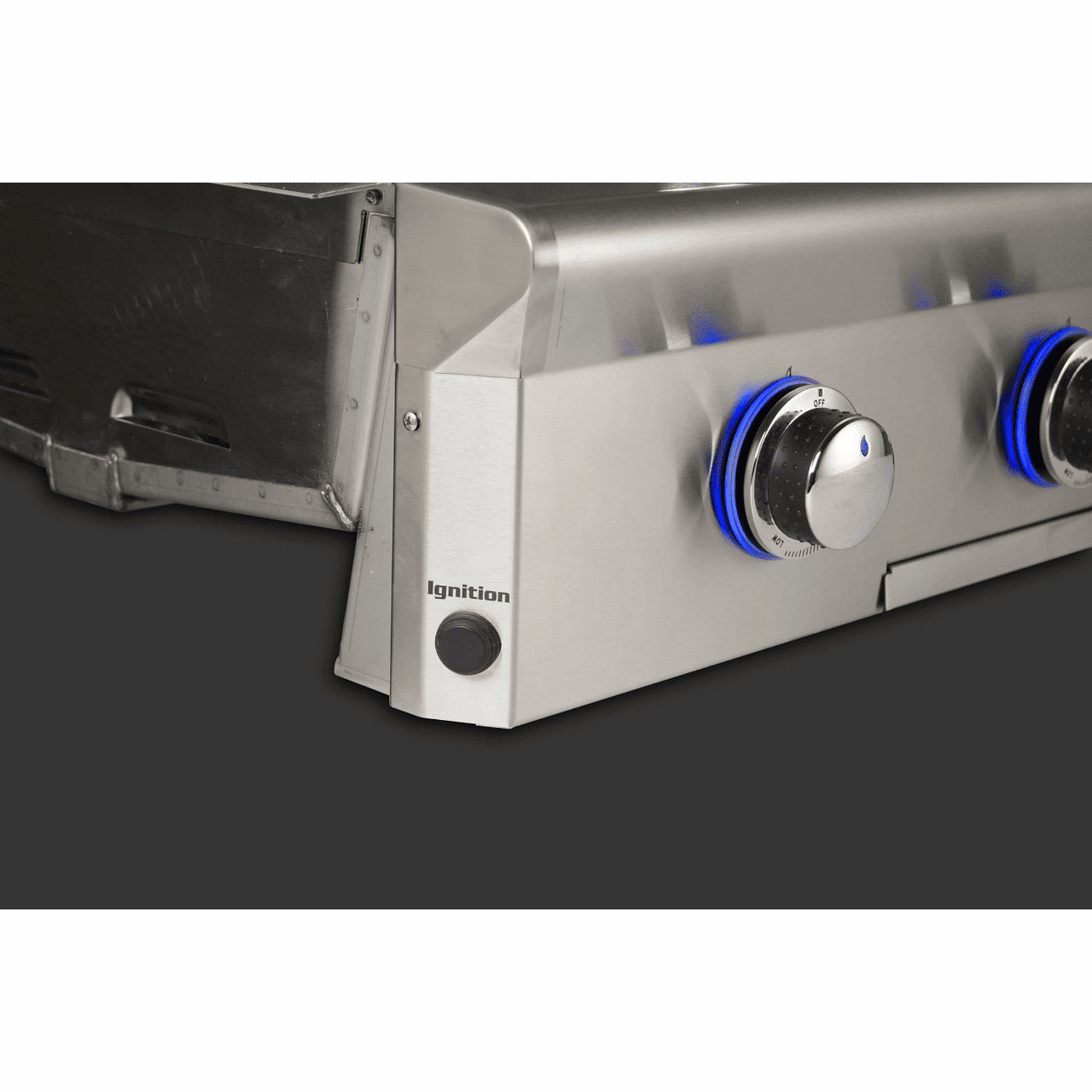

Electronic Push-Button Ignition: Fast and reliable ignition with no need for matches or lighters. Simply push a button for a quick start every time.

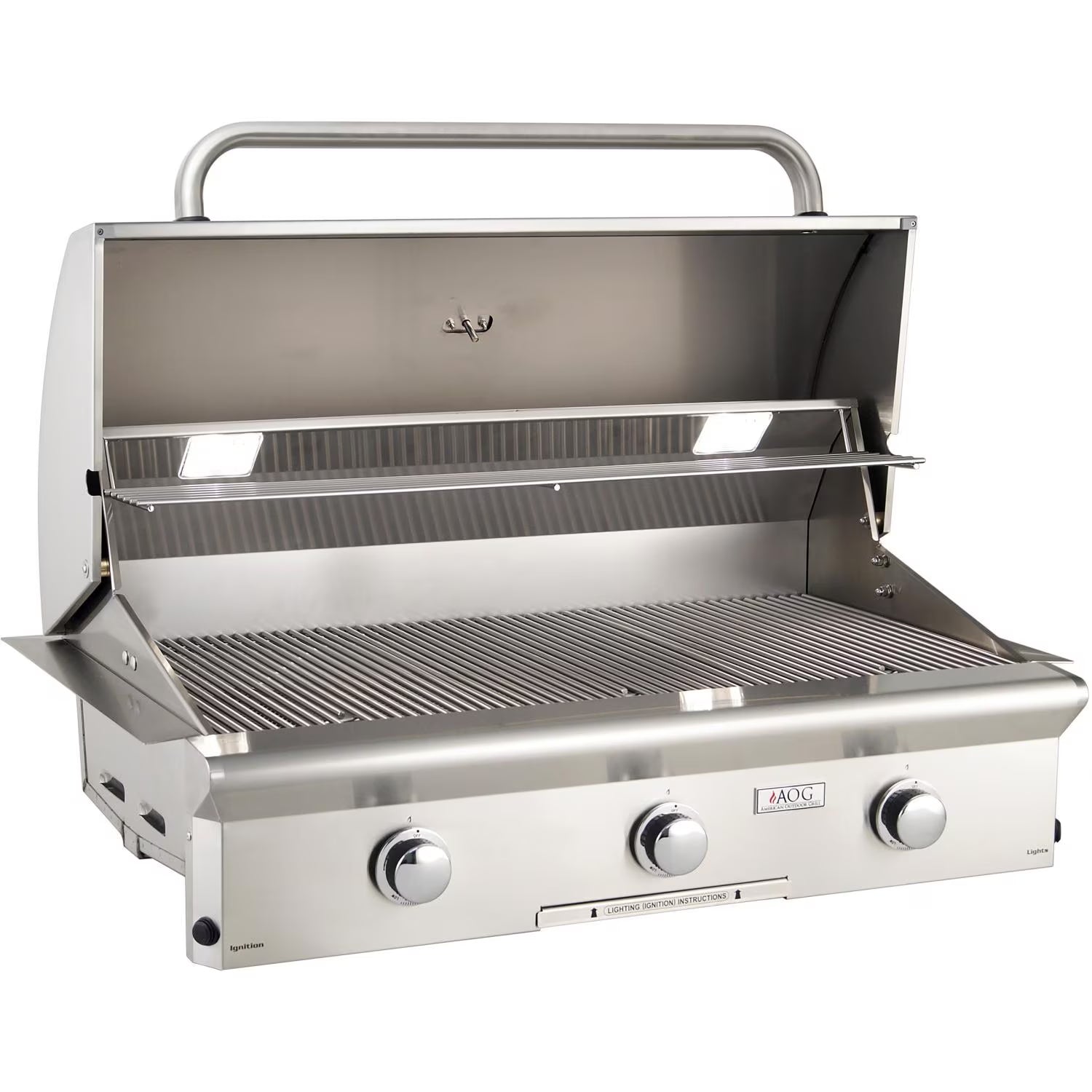

Interior Halogen Lights: Ensures clear visibility when grilling day or night, making it perfect for evening cookouts.
Back-Lit Knobs: Illuminated control knobs make grilling at night easier by providing clear visibility of heat settings.
Heavy Duty Warming Rack: Keeps cooked food warm while you continue grilling, ensuring that everything is served hot and fresh.
Requires 120 Volt AC Power: Provides the necessary power for lighting and ignition, ensuring efficient performance for all your grilling needs.
Heavy-Duty 304 Series Stainless Steel Construction: Built for durability and long-lasting performance, ensuring that your grill can handle frequent use and the elements.
Heavy-Duty Warming Rack: Keeps your food warm until you're ready to serve, available on all models for added convenience during large cookouts or when cooking multiple items.
Seamless Hood and Control Panel with Polished Finish: Provides sleek aesthetics and easy-to-clean surfaces, contributing to both the grill’s performance and its modern design.
Electronic Push Button Ignition: Allows for quick and hassle-free ignition, getting you grilling in seconds without the need for matches or lighters.
Requires 120 Volt AC Power: Simple "plug-and-play" functionality for easy setup. Requires a standard power connection for interior lighting and certain ignition functions.
Stainless Steel Vaporizer Panels: Distribute heat evenly, reduce flare-ups, and protect burners from grease, ensuring a consistent cook and extending the lifespan of the burners.
Custom Designed Analog Thermometer with Stainless Steel Bezel: Provides precise control over your cooking temperature, helping you to achieve perfect results every time.
All Built-In Grills are Natural Gas (NG) and Come with LP Orifices: The grill is set up for natural gas but comes with LP (liquid propane) orifices for versatility, making it suitable for both NG and LP setups.
All Portable Grills Come with LP and Require NG Conversion Kit (CK-41-NAT or CK-42-NAT): If you plan to use the grill with natural gas, you’ll need to purchase a conversion kit and orifice kit separately.
LIFETIME WARRANTY
All stainless steel burners are covered by a lifetime warranty, ensuring they are protected for as long as the original purchaser owns the grill.
TEN-YEAR WARRANTY
All other parts of the American Outdoor Grill® (excluding ignition systems, accessories, infrared burners, and vaporizer panels) are covered under a 10-year warranty, offering long-term peace of mind for your purchase.
THREE-YEAR WARRANTY
Infrared burners and vaporizer panels are warranted for 3 years, ensuring optimal performance and reliability.
ONE-YEAR WARRANTY
Ignition systems (excluding batteries) and accessories such as side burners, motors, and thermometers are covered for 1 year, providing dependable use for a full grilling season
