| Specification | Details |
|---|---|
| Volume | 5.12CF*2 (145*2 Litre) |
| Capacity | 161 Cans (330 ml) + 46 bottles of wine |
| Installation | Built-in or freestanding, Front Venting |
| Shelf Configuration | 4 Chromed Steel Shelves + 6 Beech Wooden Shelves |
| Beer Side Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Wine Side Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Room Temperature Range | 32 - 100 °F (0 - 38°C) |
| Noise Level | <42dB |
| Rated Power Input | 110-115V/60HZ |
| Rated Current | 1.7A |
| Power Input | 165W |
| Power Lamp | 0.7W |
| Refrigerant | R600A / 52g |
| Energy Consumption | 1.18Kw*h/24h |
| Unit Size (Each Unit) | 23.42”W x 22.75”D x 33.99”H |
| Net Weight | 227 lbs |
| Shipping Weight | 273 lbs |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details

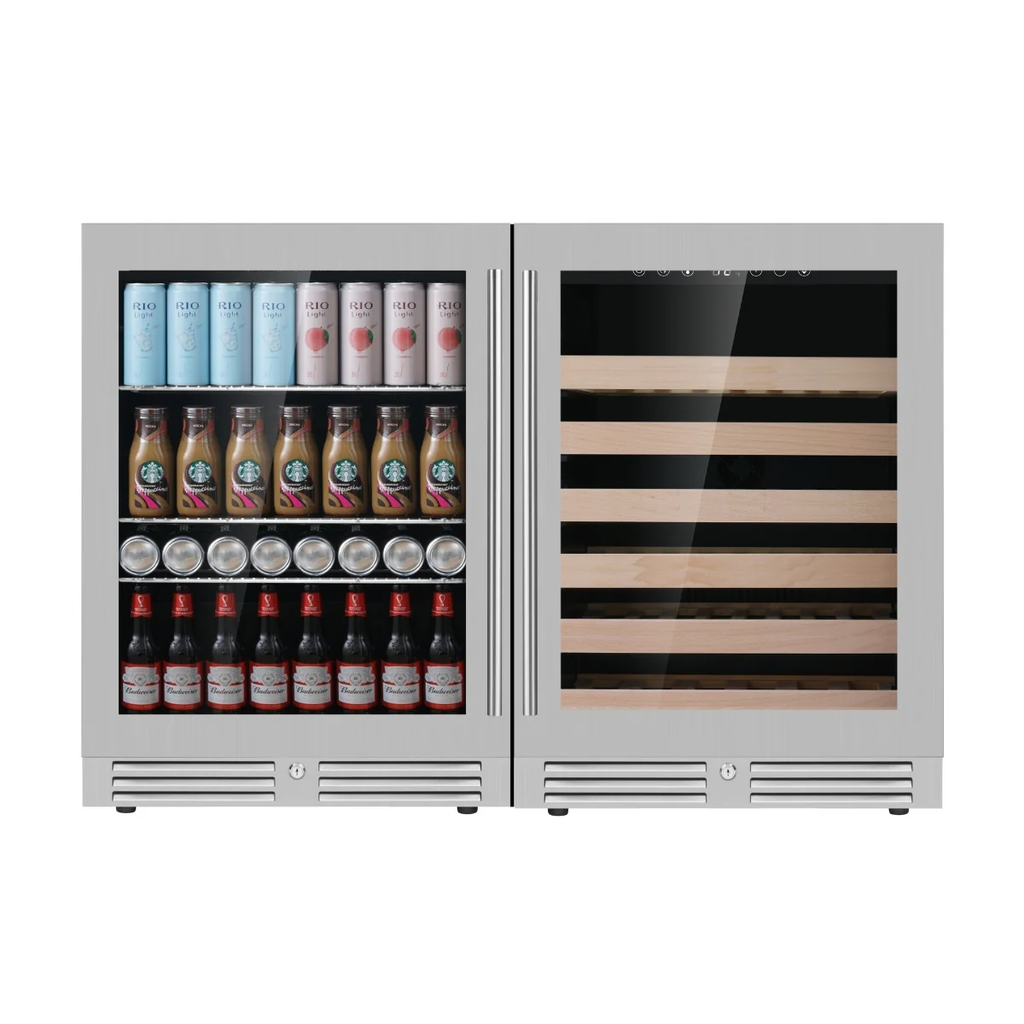

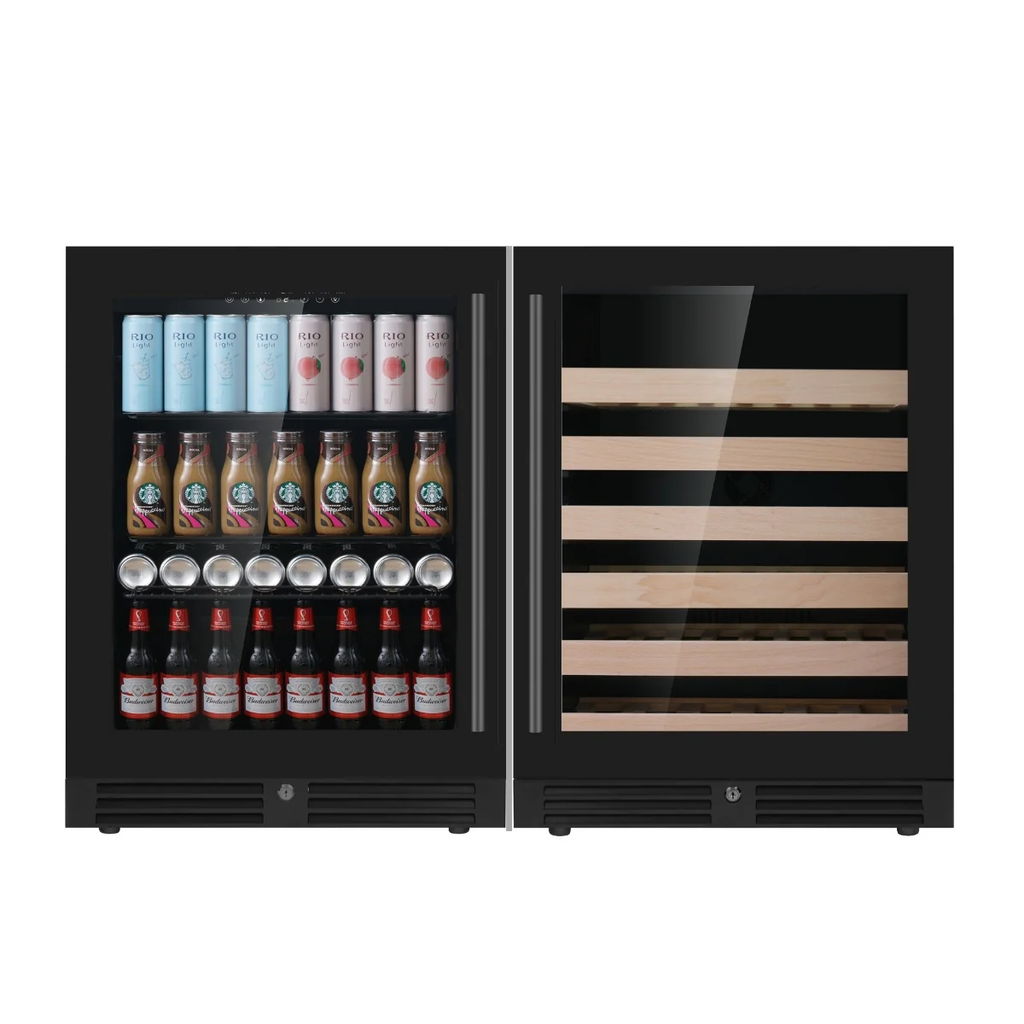

The KingsBottle KBU145BW2 is a 24-inch wine and beverage combo unit that perfectly combines style and functionality. Whether you're a wine enthusiast or a beverage lover, this combo unit offers a single-zone wine cooler and a beverage fridge, ensuring both your wine and drinks are stored at their ideal temperatures. With sleek, modern aesthetics and Low-E glass doors, this combo is perfect for any kitchen, home bar, or entertainment space.
Featuring dual temperature control, the wine cooler maintains a range of 35°F to 68°F for your wine, while the beverage section keeps your cans or bottles cool at a range of 35°F to 68°F. The combination of chromed steel shelves for the beverage section and wooden beech shelves for the wine cooler gives you flexibility and elegance for organizing and storing your collection. Energy-efficient and quiet operation make this cooler a top choice for any home.
The KBU145BW2 is designed to fit seamlessly built-in or freestanding with its front venting system, allowing it to be integrated into cabinetry or used on its own. The activated carbon filter ensures the air inside stays fresh, while the Embraco Inverter Compressor maintains a stable temperature and reduces energy consumption by 40%. Keep your wine and beverages at their perfect temperature with ease, thanks to the digital touchpad control and seamless stainless steel door frame for a polished look.

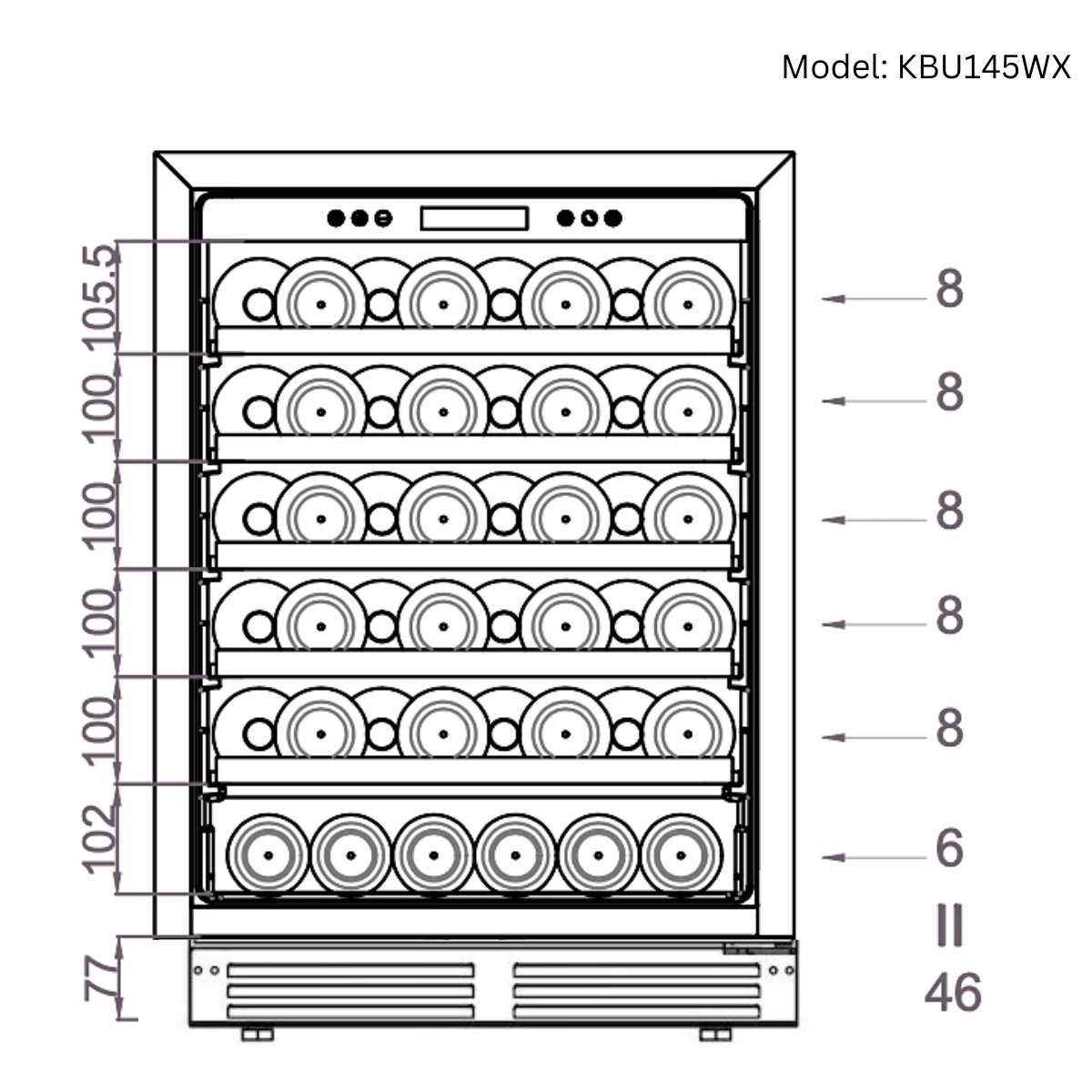

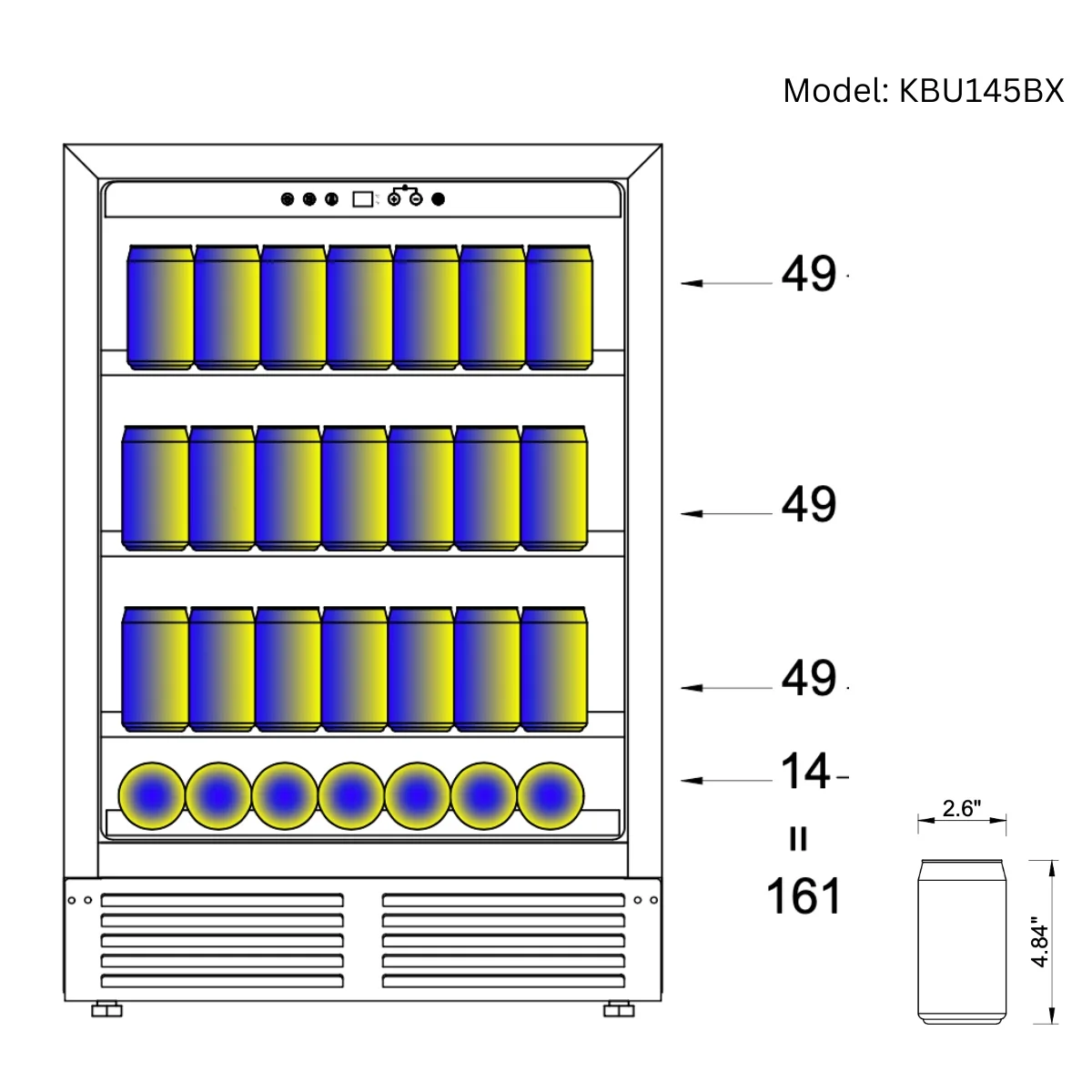

Single-Zone Wine & Beverage Storage: Store up to 46 bottles of wine and 161 cans of beverages in a compact and efficient combo unit.
Embraco Inverter Compressor: Quiet operation and 40% energy savings with top-brand Embraco inverter compressor technology.
Temperature Control Range: 35°F to 68°F for both wine and beverage sections, ensuring optimal storage for both wine and drinks.
Activated Carbon Filter: Keeps the interior fresh by filtering impurities in the air.

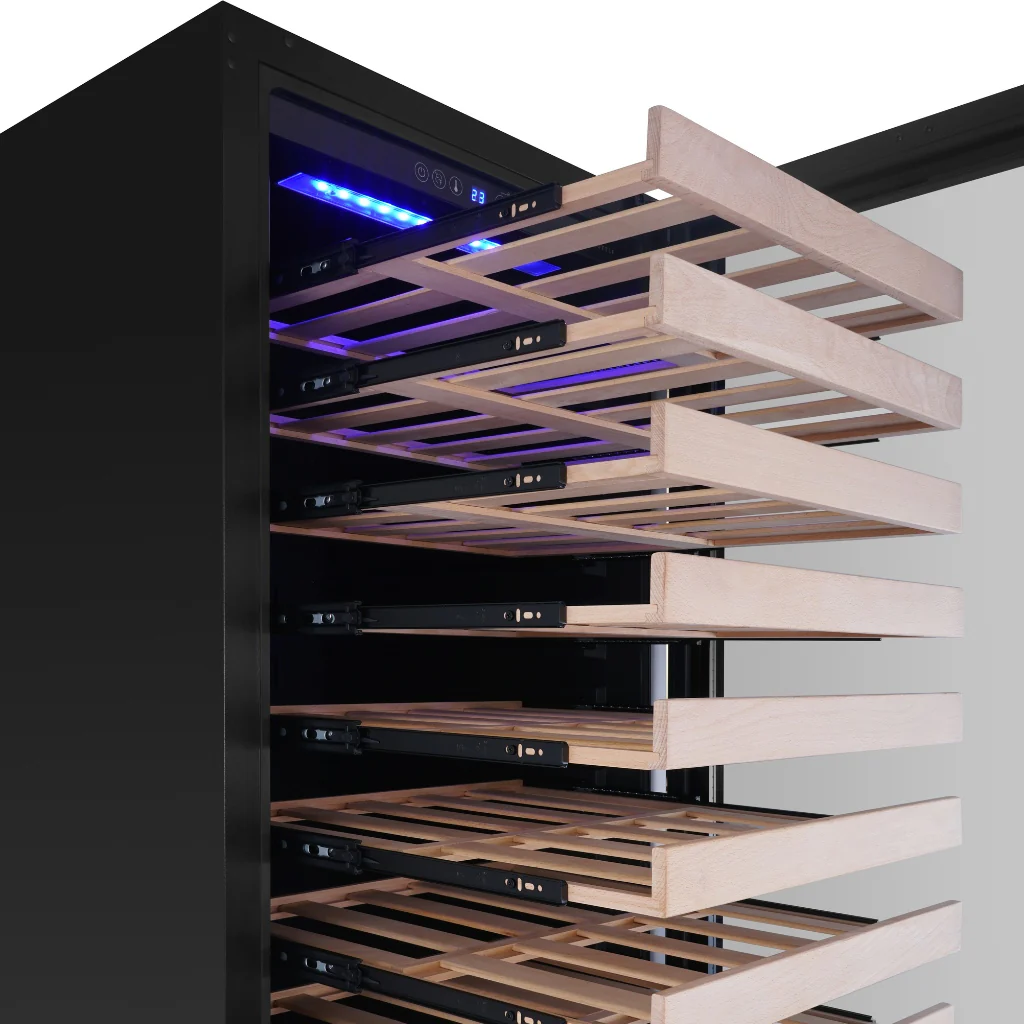

Wooden Beech Shelves for Wine Storage: Crafted for wine-friendly storage, designed to fit regular and larger bottles.
Energy-Efficient LED Lighting: Showcases your collection without affecting the interior temperature.
Low-E Glass Door: Provides UV protection, reducing condensation and improving energy efficiency.

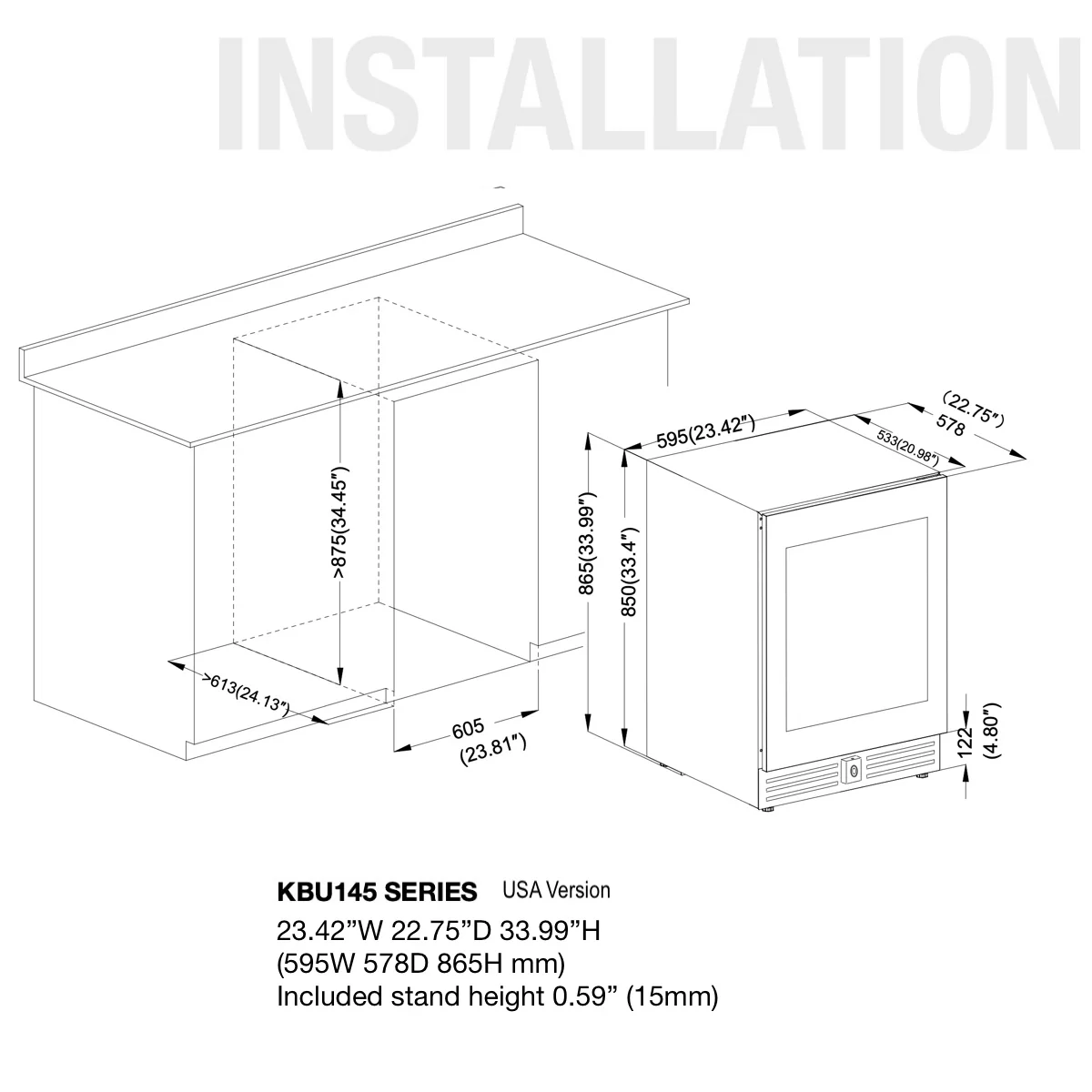

Front Venting: Built for easy installation in cabinetry or can be used as a freestanding unit.

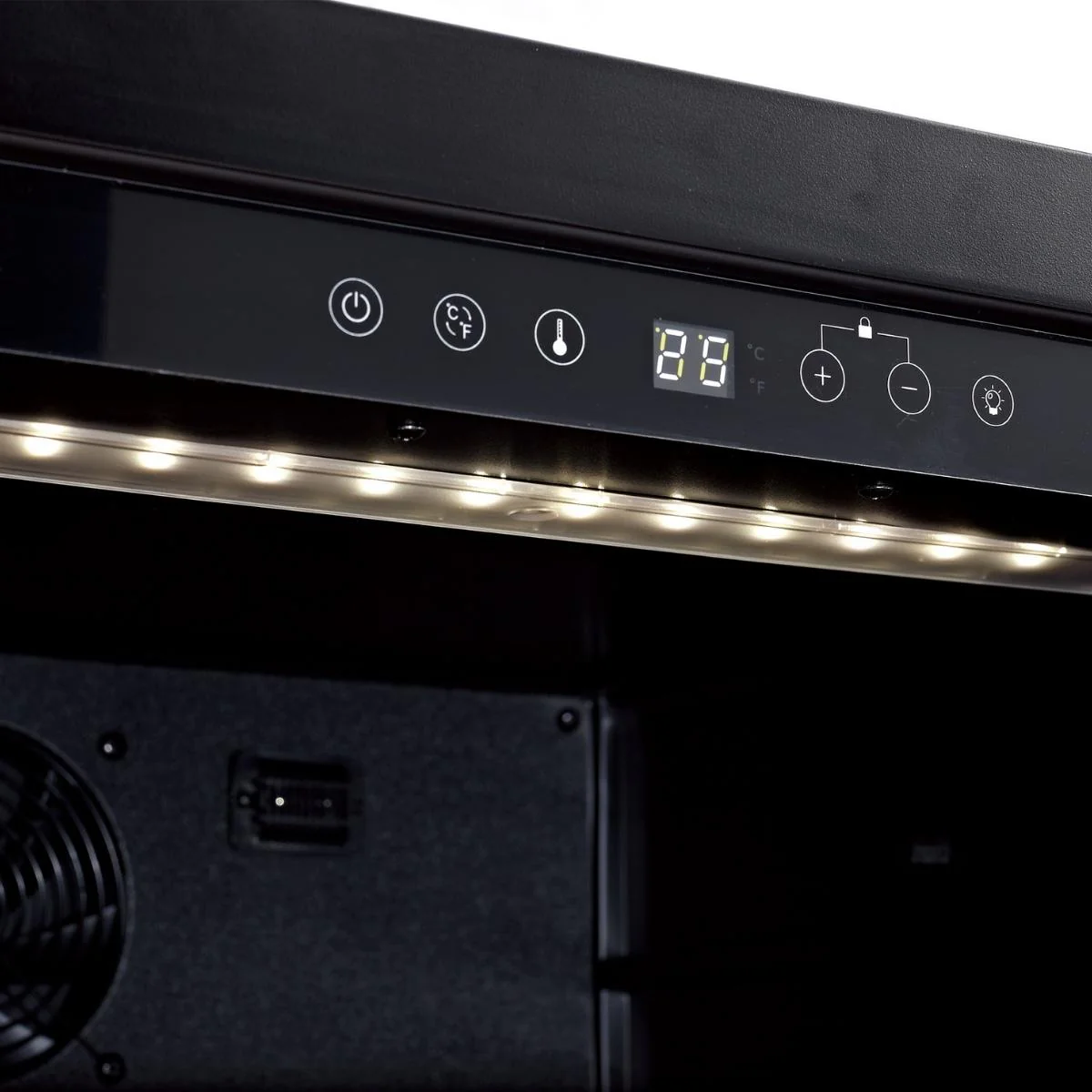

Digital Touchpad Control: Allows for easy temperature adjustments, with precise digital readouts.
Noise Level: Operates at a noise level of <42dB, ensuring minimal disruption to your living spac

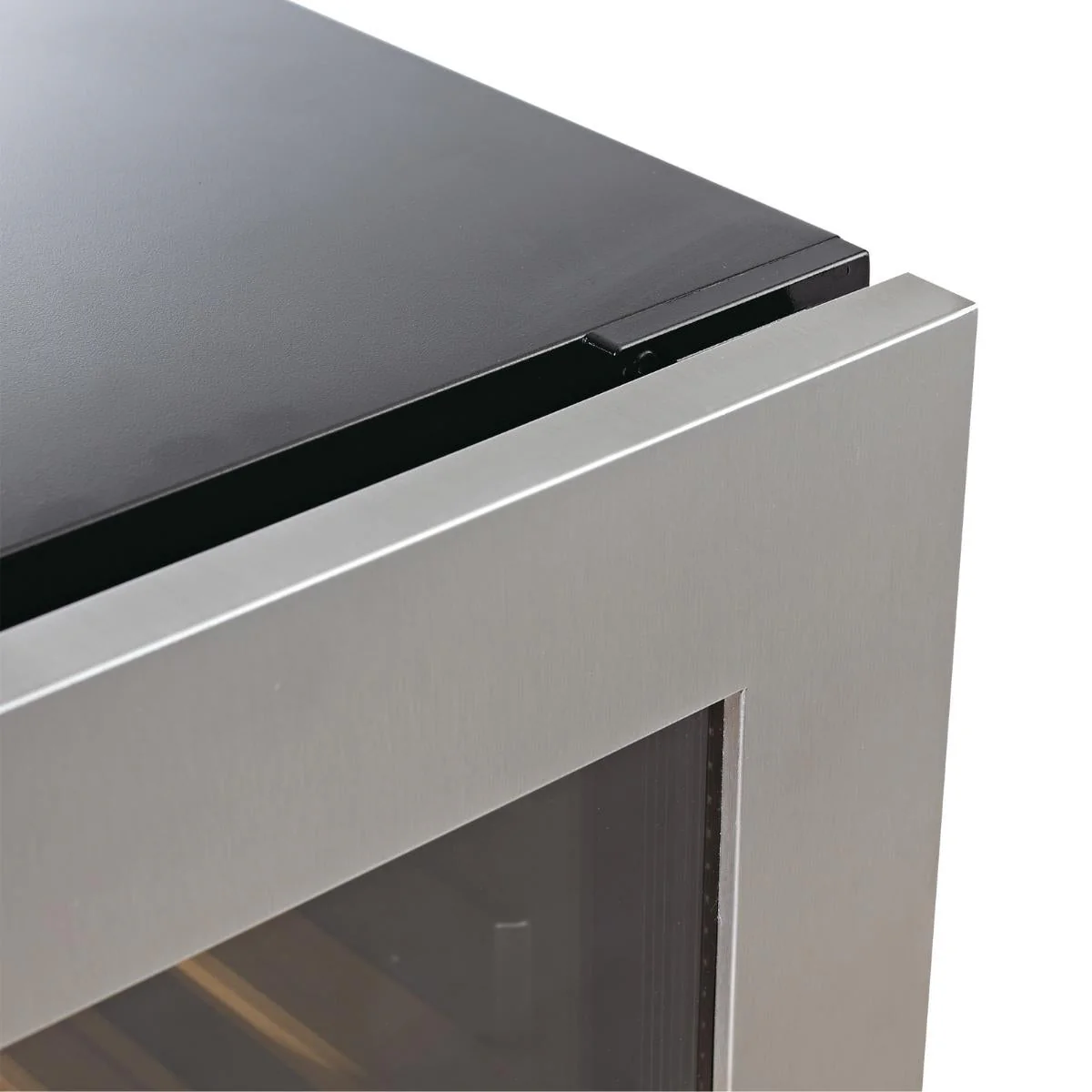

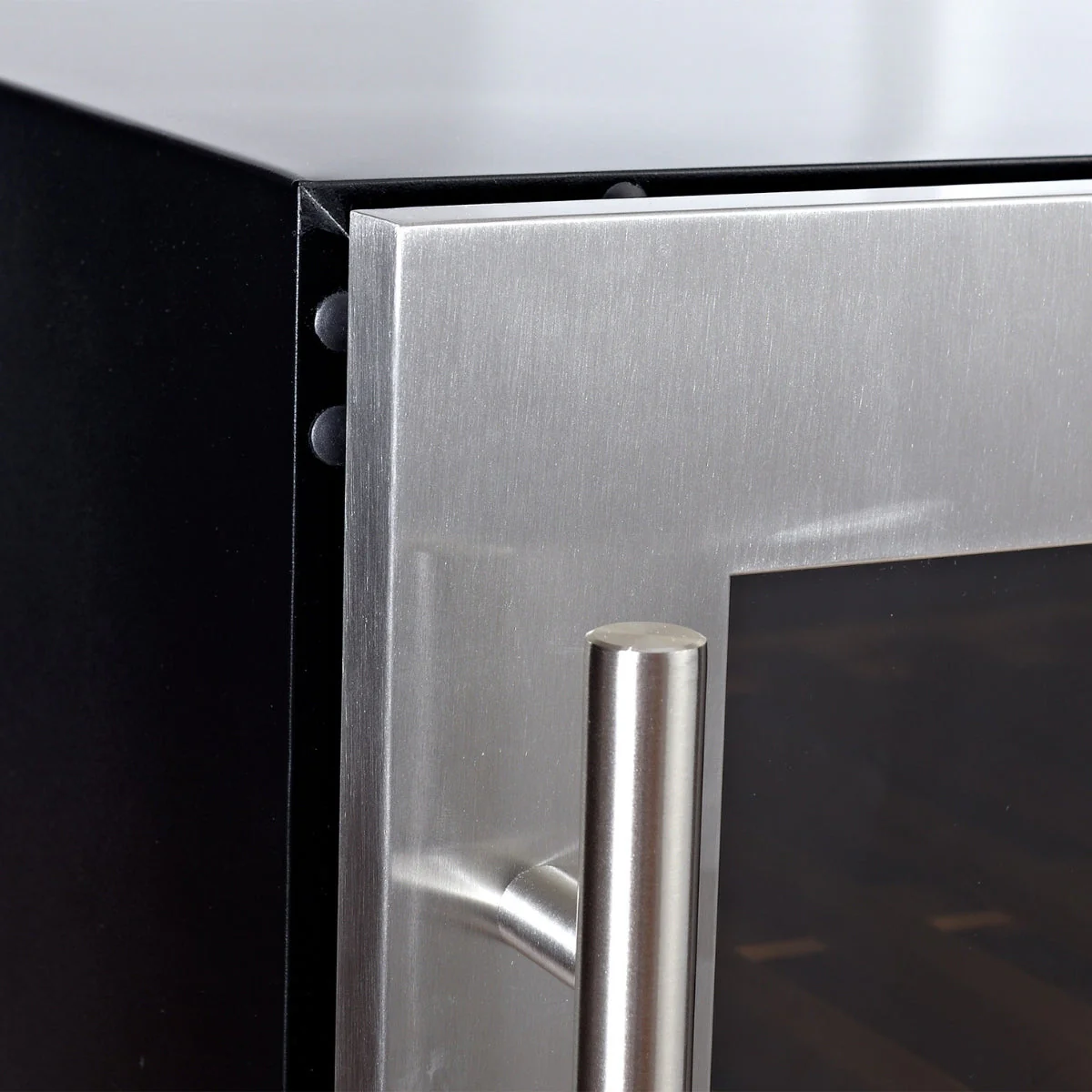

Seamless S/S Door Frame: Elegant, modern design with a thin, sleek stainless-steel frame.
Temperature Range for Wine Side: 35°F to 54°F (upper zone) and 54°F to 68°F (lower zone).
Temperature Range for Beverage Side: 35°F to 68°F.

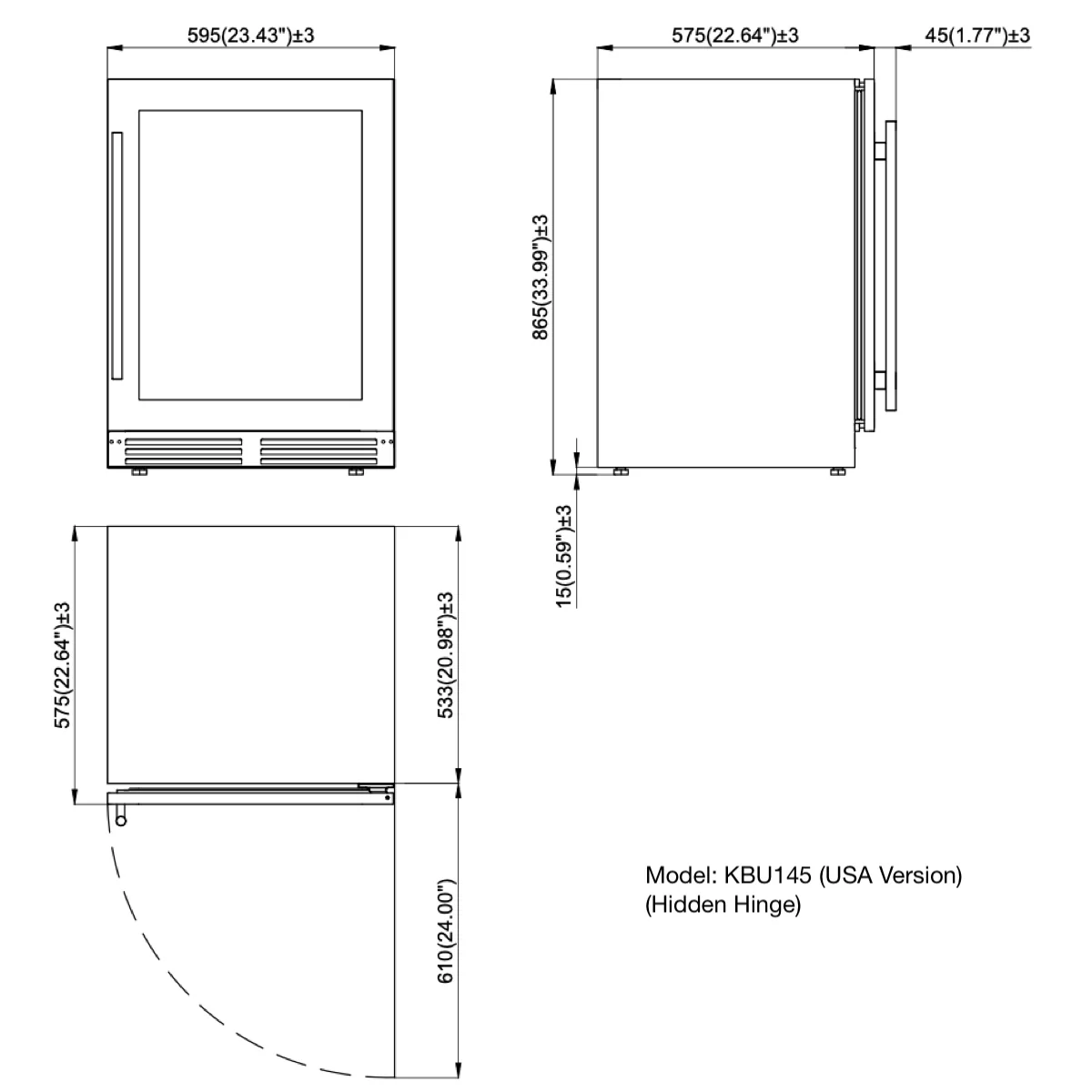

Dimensions: Each unit measures 23.42”W x 22.75”D x 33.99”H, designed for under-counter placement with minimal clearance.
Rated Power Input: 110-115V/60HZ, with 52g refrigerant and 165W power input for efficient cooling.
